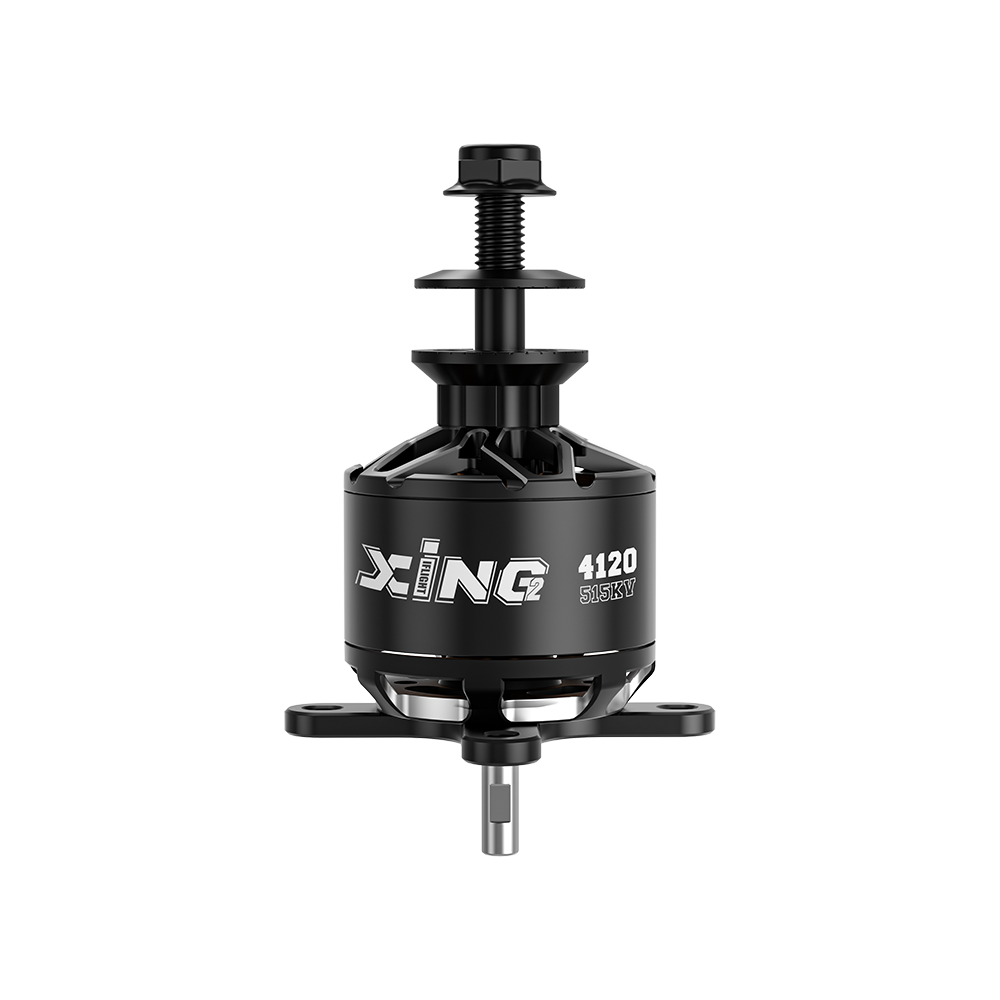

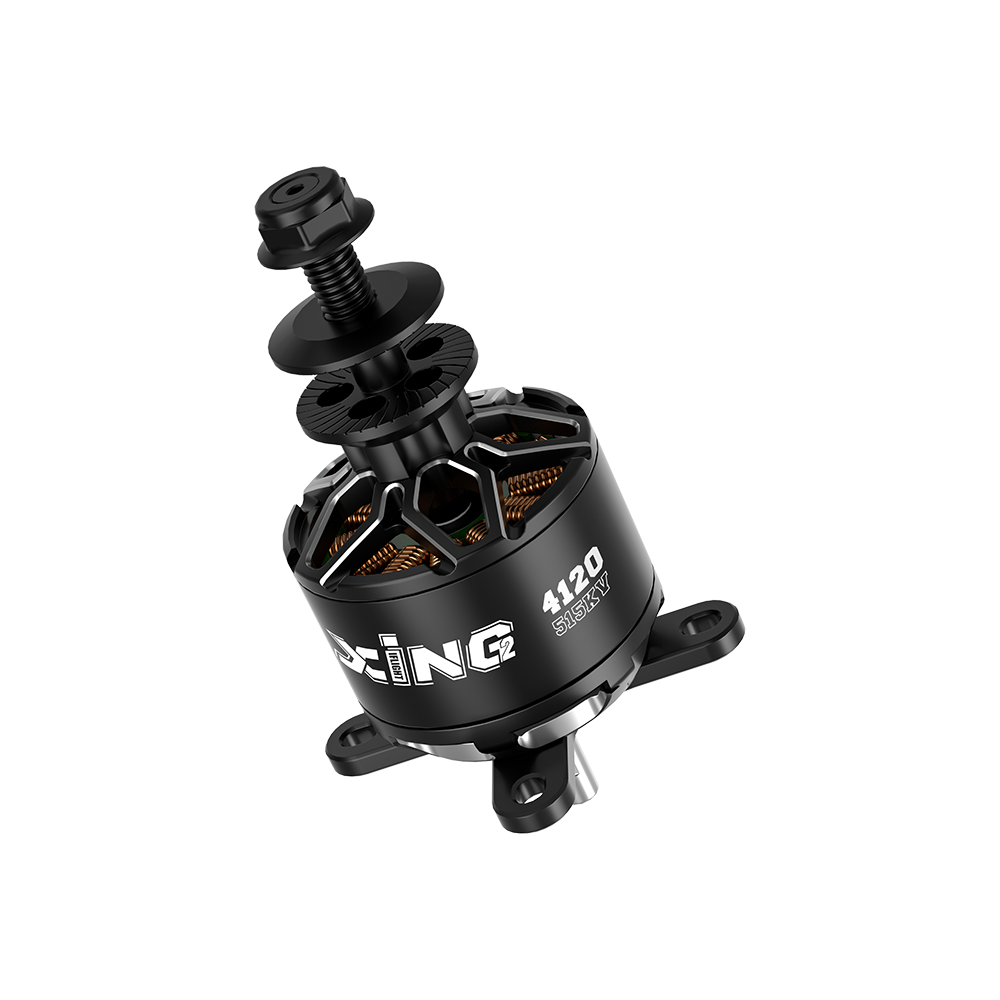

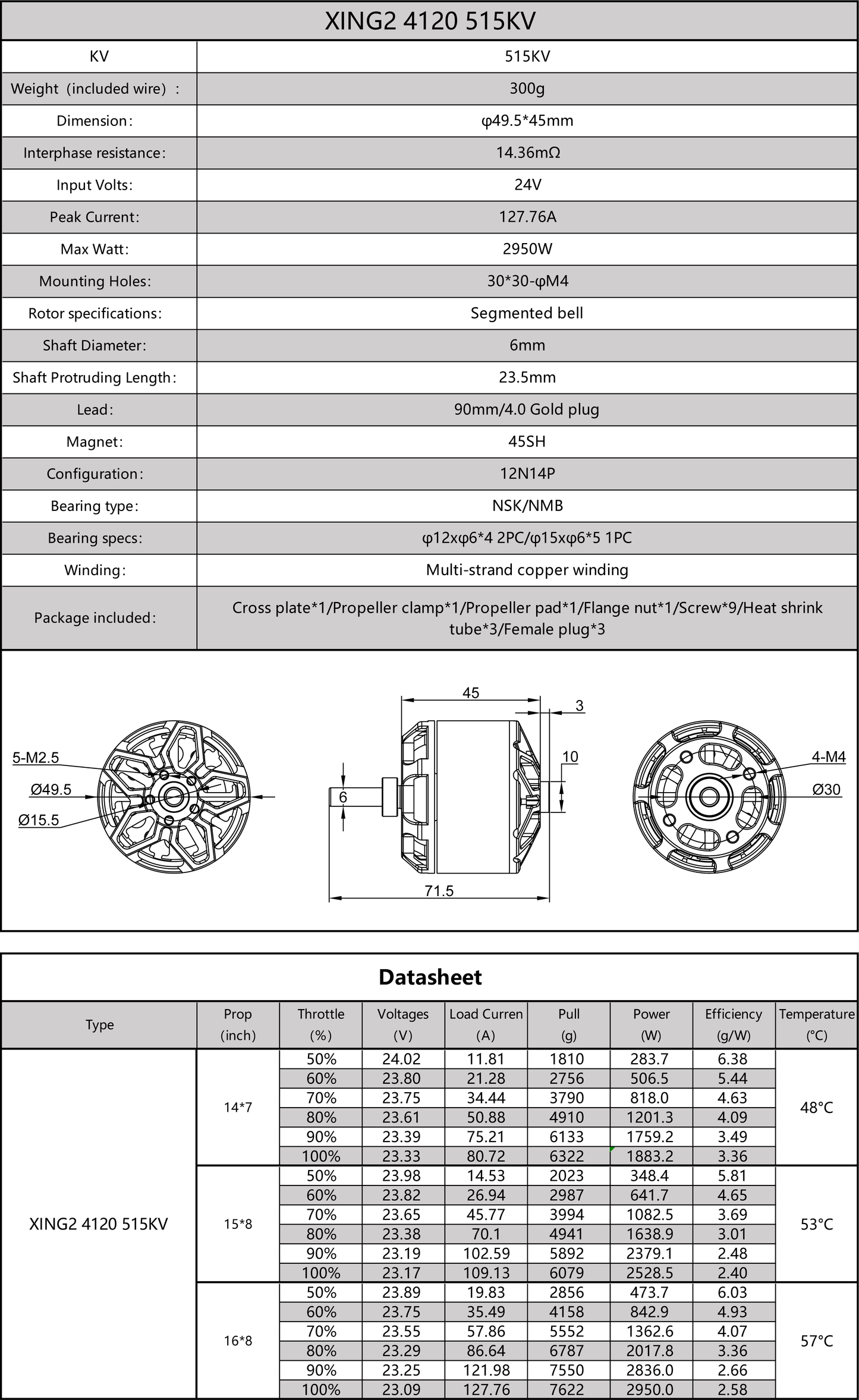

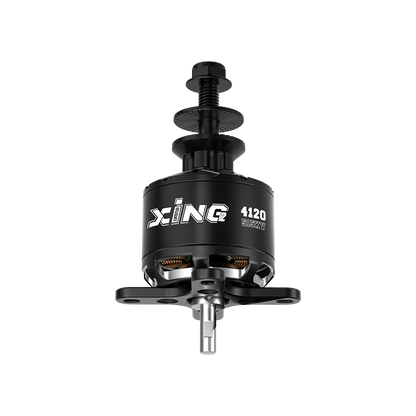

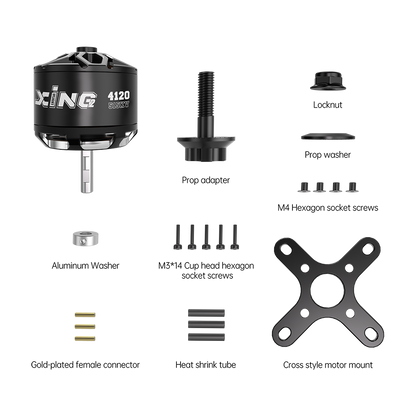

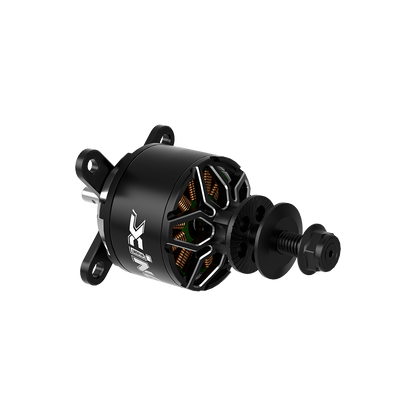

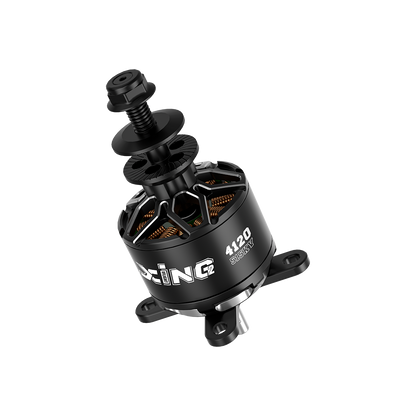

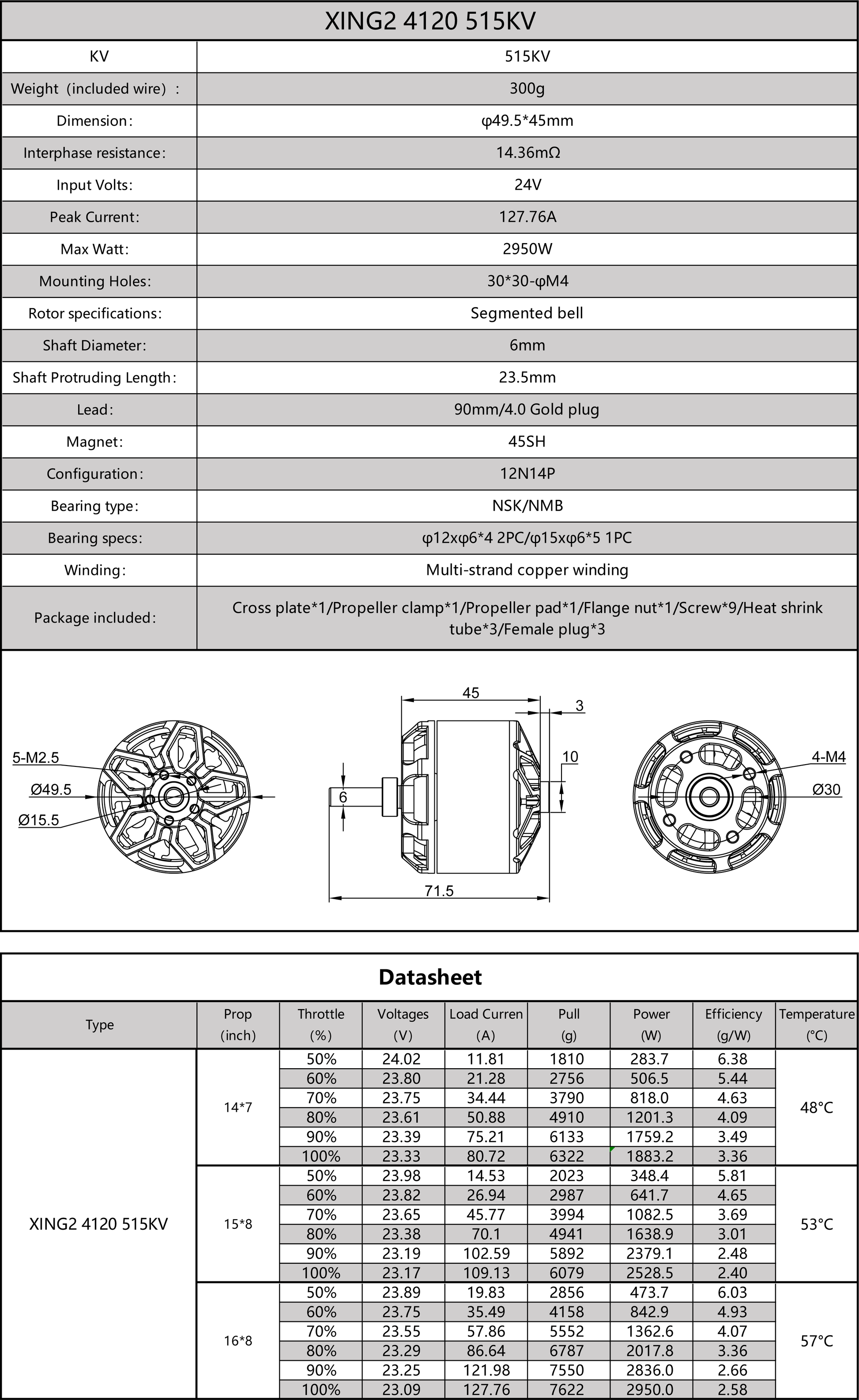

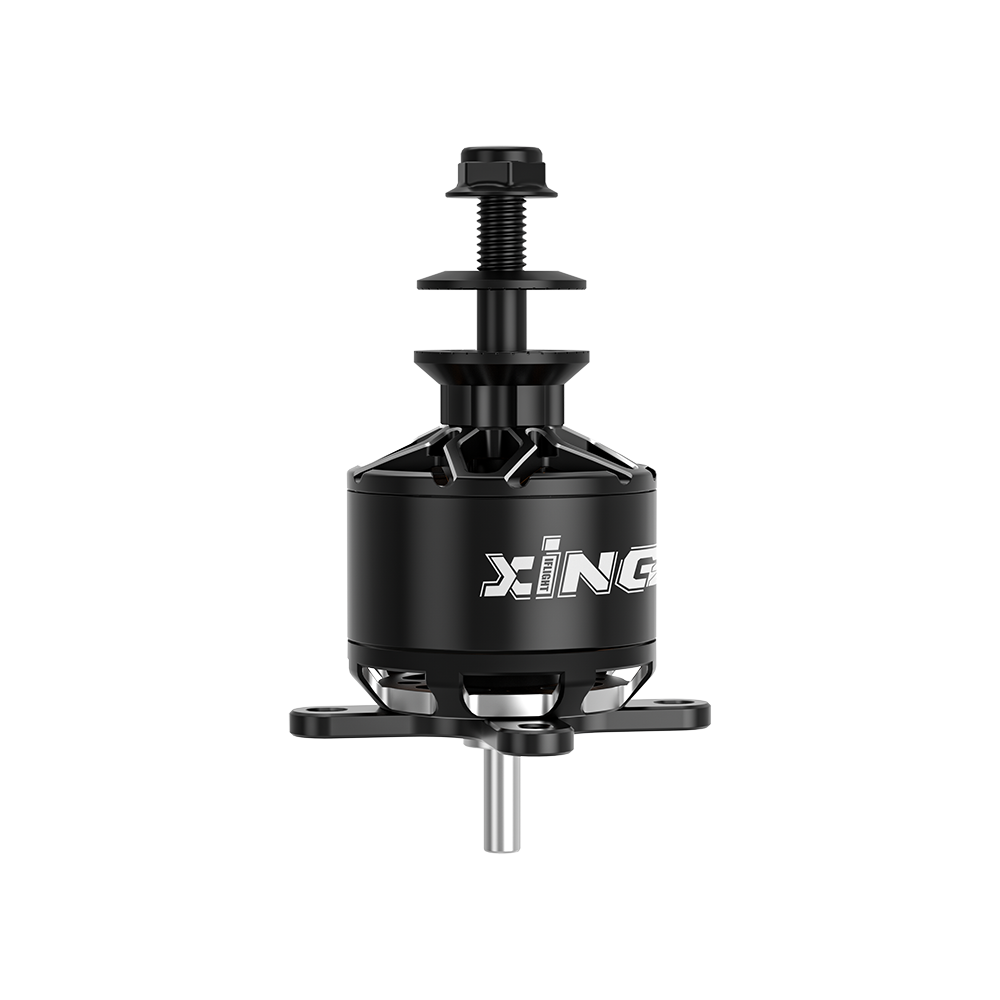

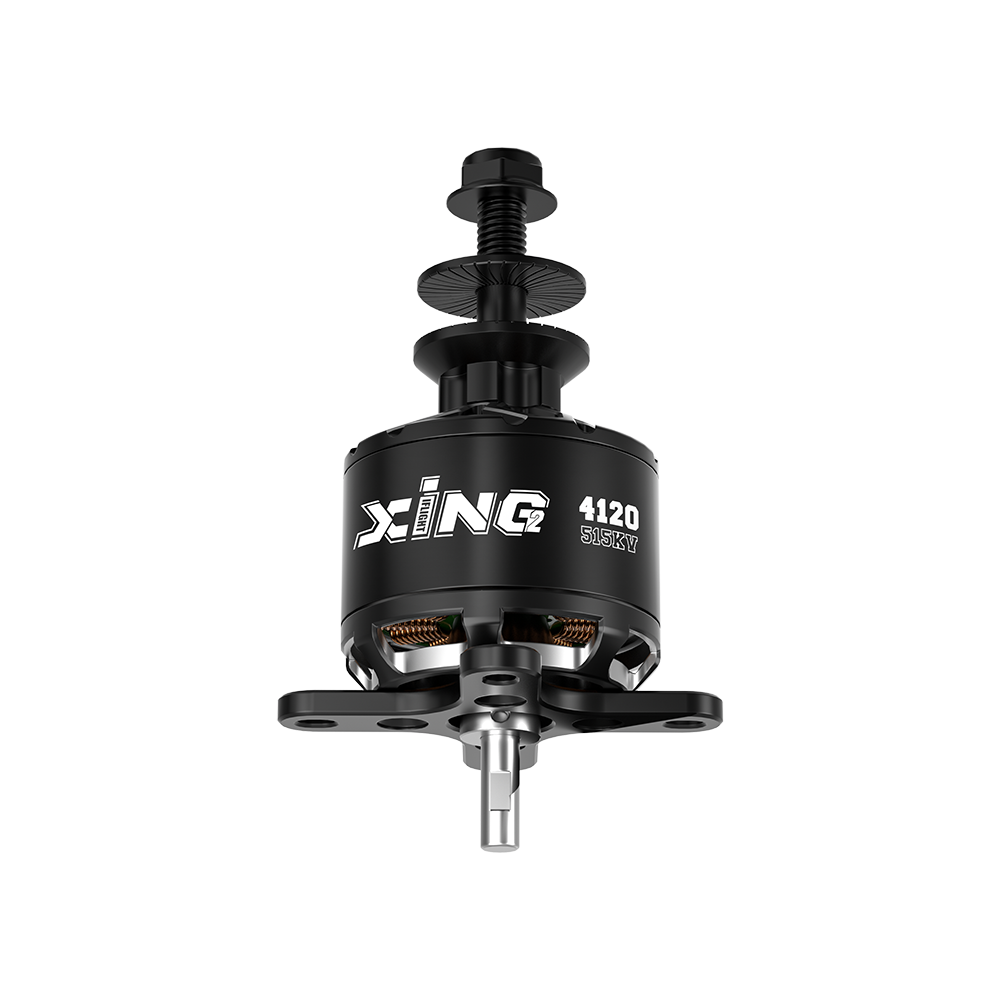

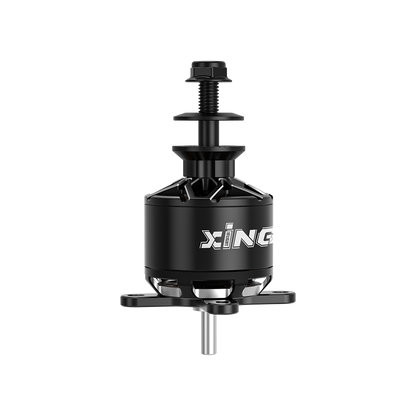

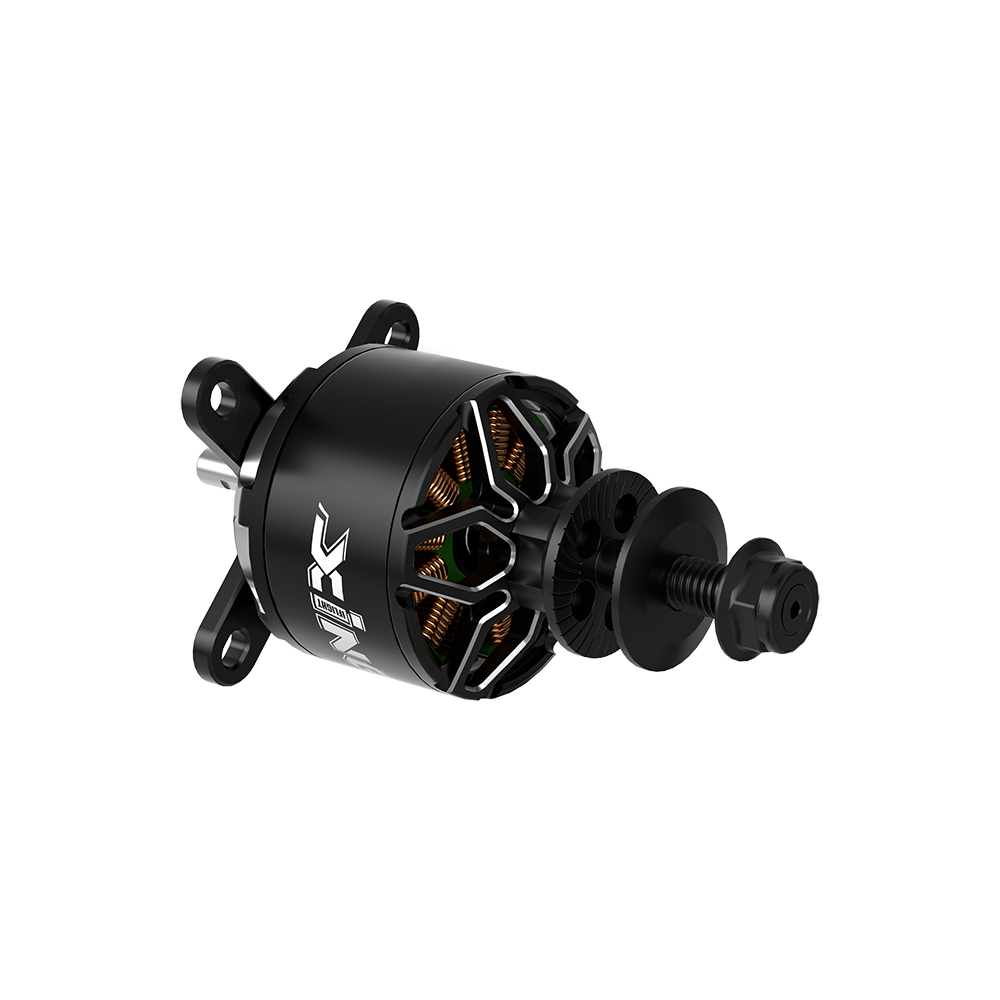

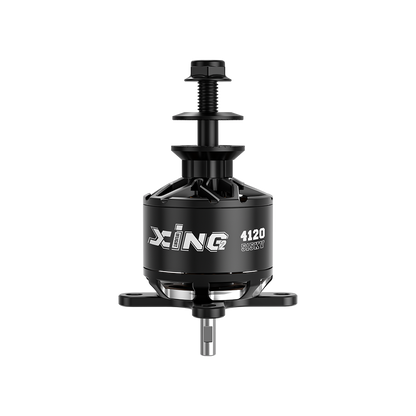

XING2 4120 515KV motor The high-quality XING2 4120 wing motor is designed to provide high performance and reliability especially for fixed-wing drone enthusiasts. Specifications: Model: Xing2 4120 KV: 515KV Weight (including wire): 300 g Size: φ49.5*45mm Phase-to-phase resistance: 14.36Ω Input voltage: 24V Peak current: 127.76A Maximum power: 2950W Mounting holes: 30*30mm φ4mm Rotor specifications: Segmented bell Shaft diameter: 6mm Length of protruding shaft: 23.5 mm Terminal: 90mm/4.0 gold connector Magnet: 45SH Configuration: 12N14P Bearing type: NSK/NMB Bearing specifications: φ12xφ6*4 2PC/φ15xφ6*5 1PC Winding: Multi-strand copper winding The package includes: 1 x Xing2 4120 515KV motor 1 x Prop Adapter 1 x Support Pad 1 x lock nut 4 x M4 socket head screws 4 x M*14 socket head screws 1 x aluminum washer 3 x gold-plated socket 3x Shrink tubing 1 x cross motor mount
