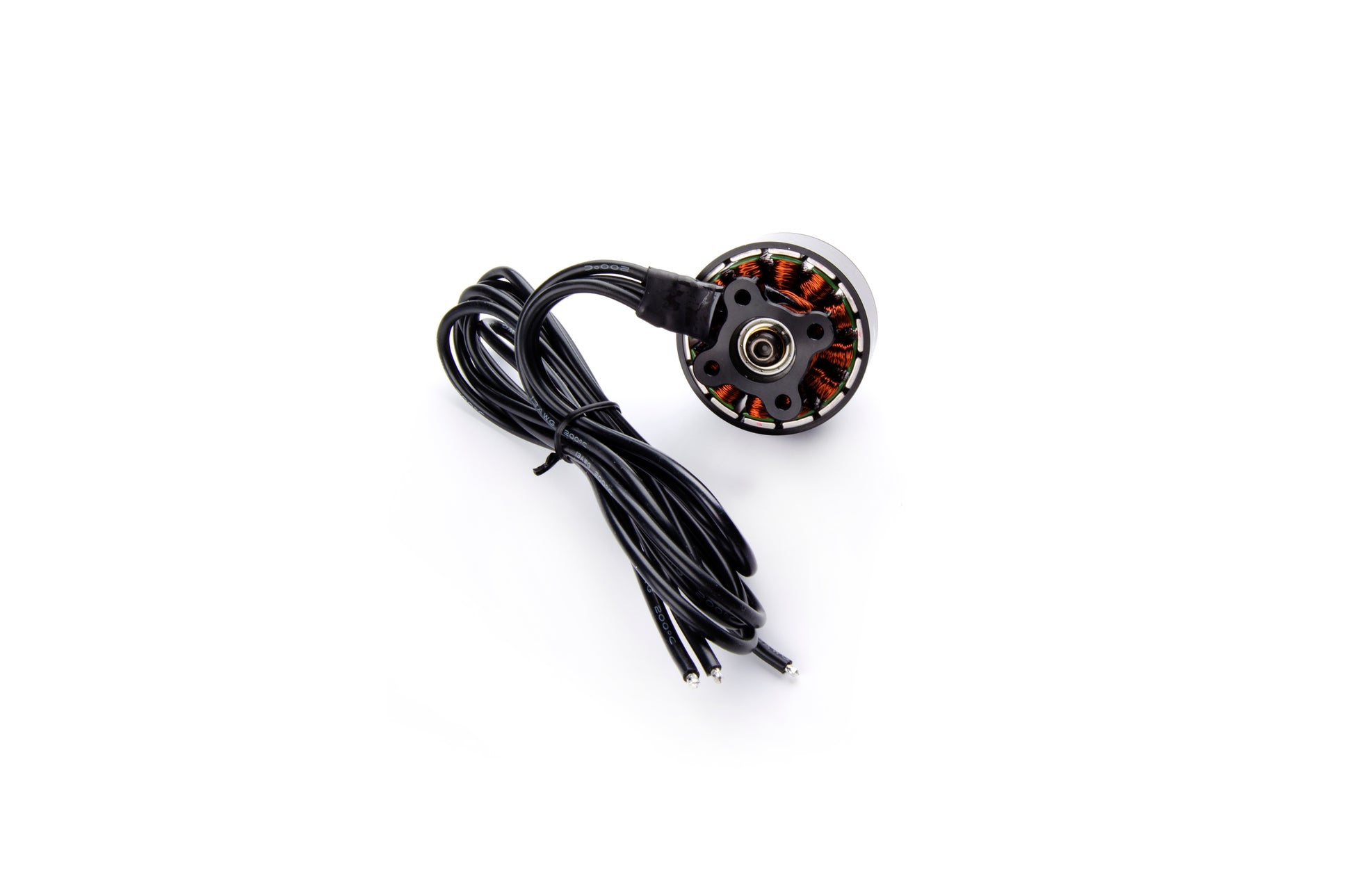

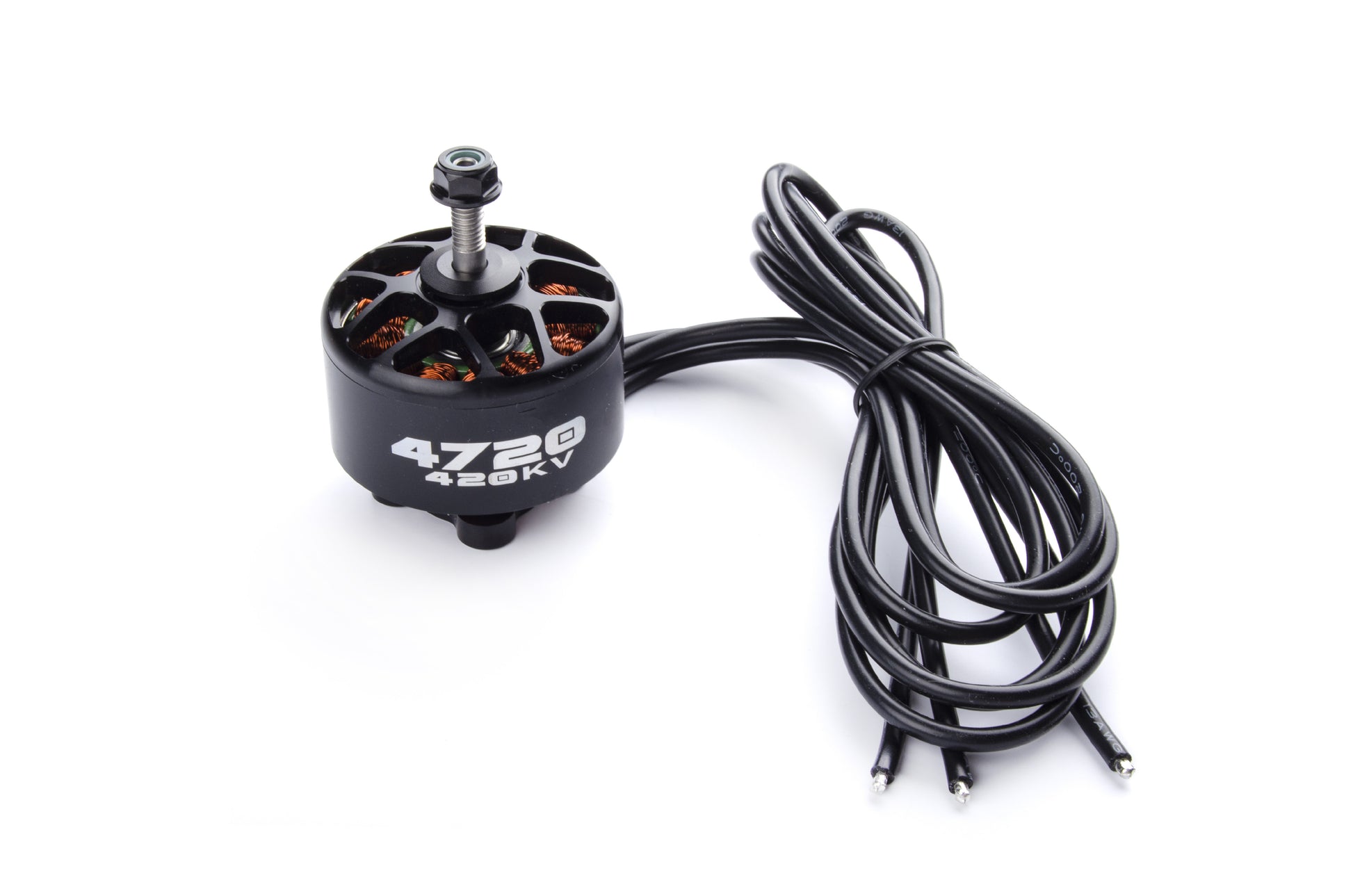

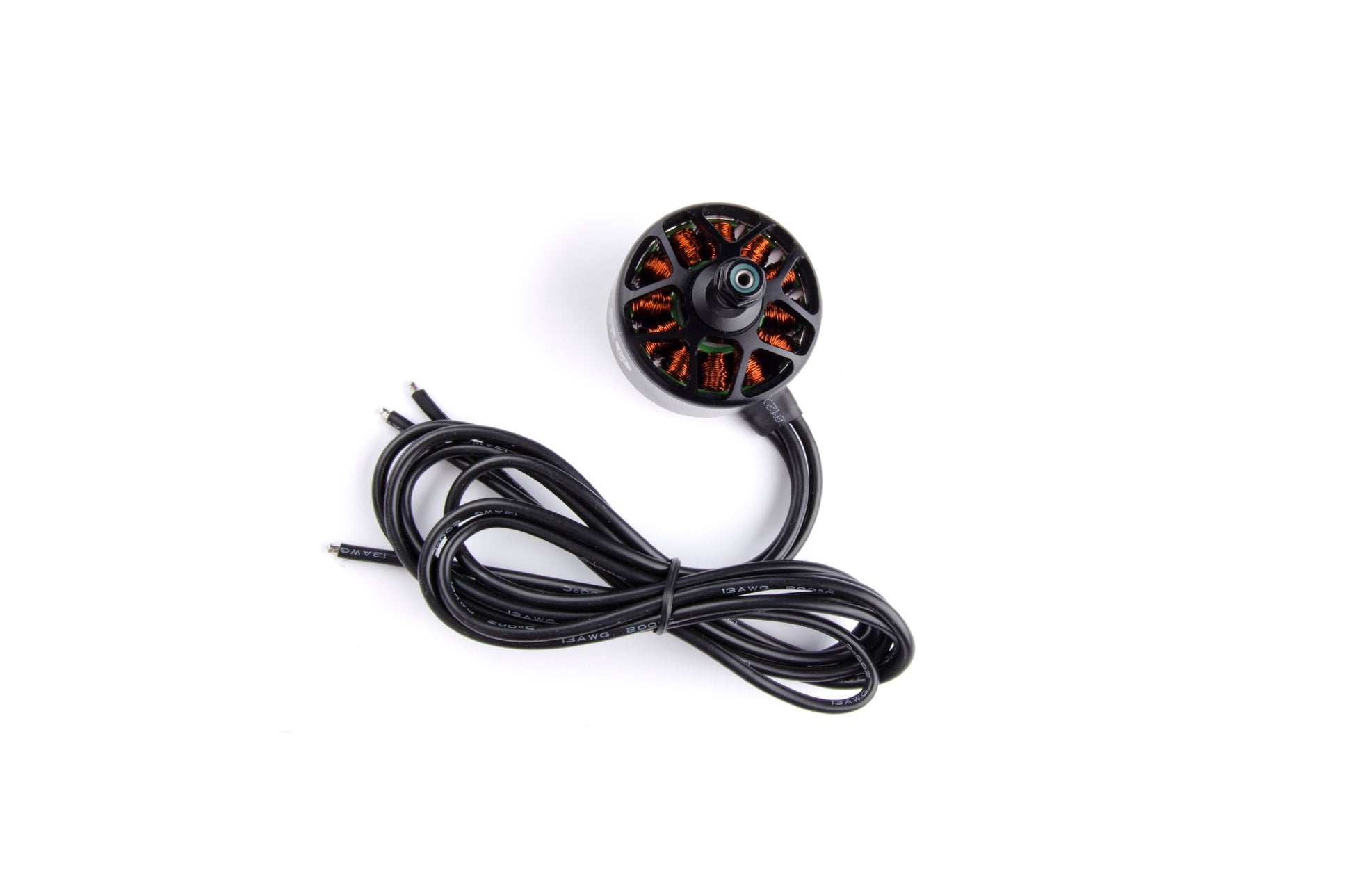

Pilotix 4720 420KV motor
The Pilotix 4720 420KV motor is a high-performance AC motor designed for professional drone systems that require maximum performance and stability. Thanks to the optimal KV rating and low internal resistance, this motor provides high efficiency even when operating with heavy propellers and in demanding conditions.
Its high output power ensures maximum performance during intensive use. Maximum thrust of 7232g ensures reliable operation with heavy drones and payloads. Compatible with 6-8S batteries.
Specifications:
KV: 420
Internal resistance: 30mΩ
Wheelbase: 6mm
Battery: 6-8S
Maximum power: 3037.38W
Maximum force: 7232g
Slot poles: 12N14P

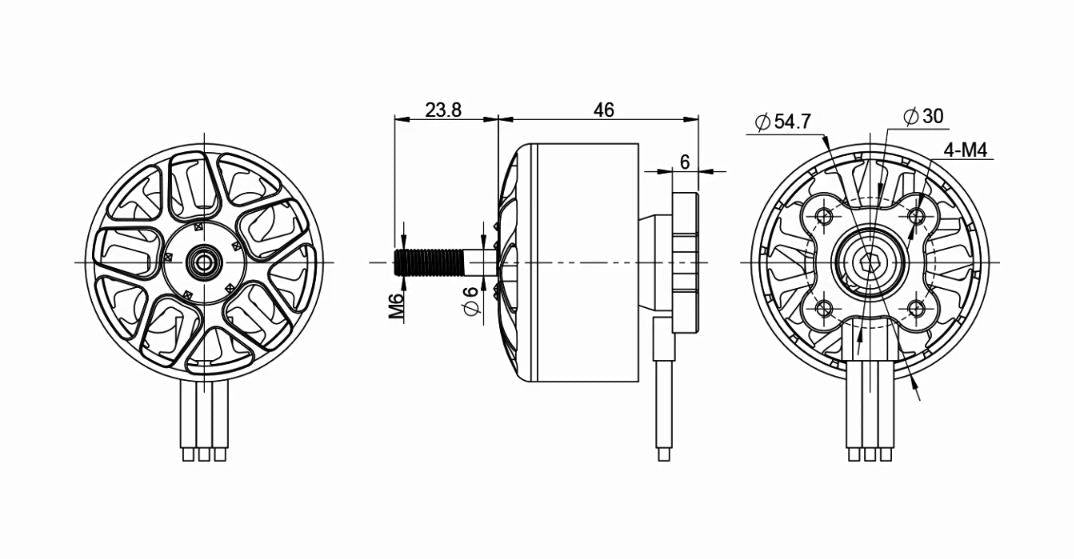

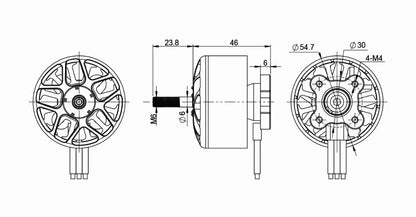

Size: Ø54.7 x 69.8mm
Silicone line: 13AWG
Weight (including cable): 336.0g
Maximum current: 99.7A
Current without payload (10V): 1.90A
Package includes:
1x Pilotix 4720-420KV motor
