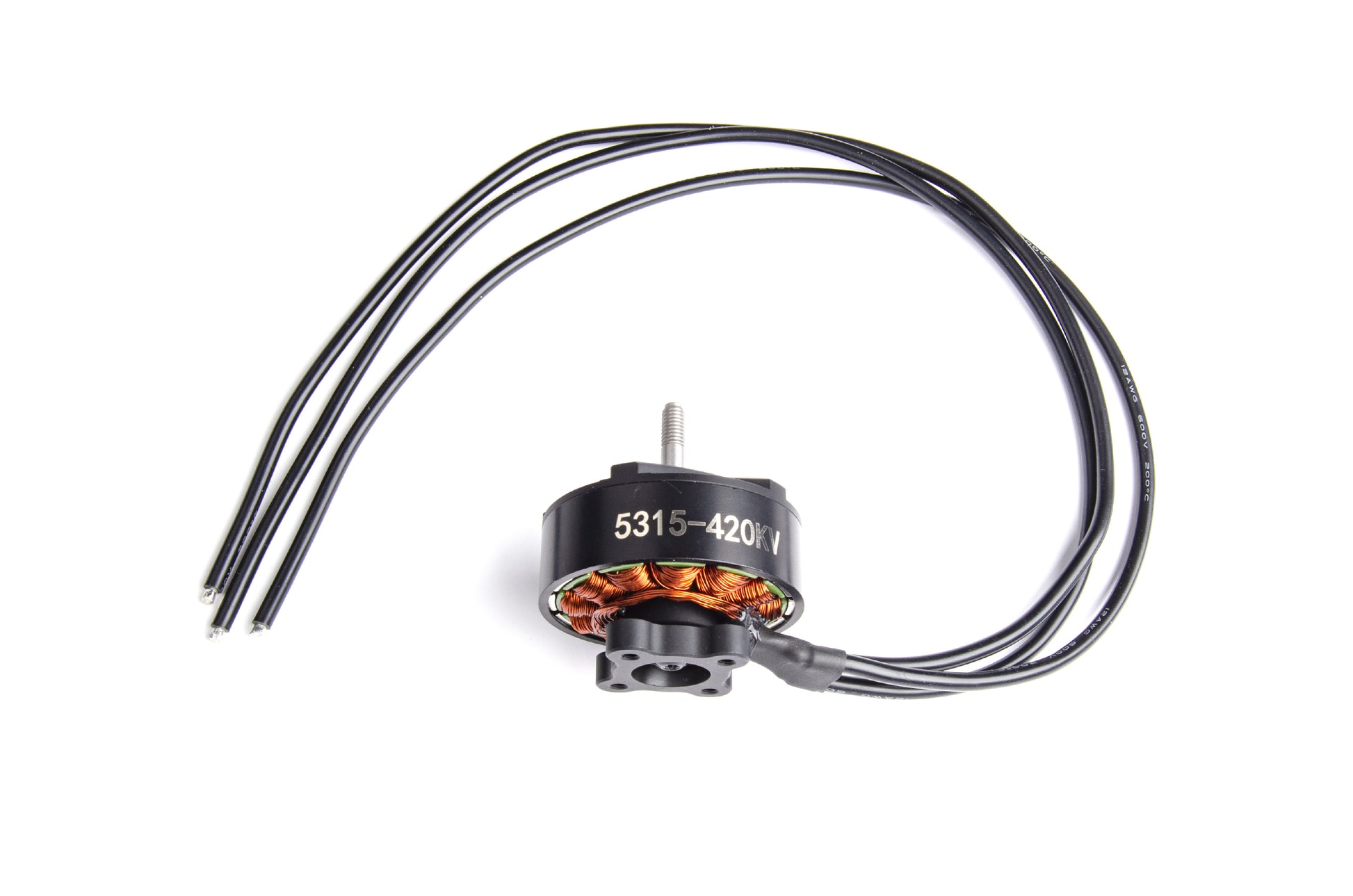

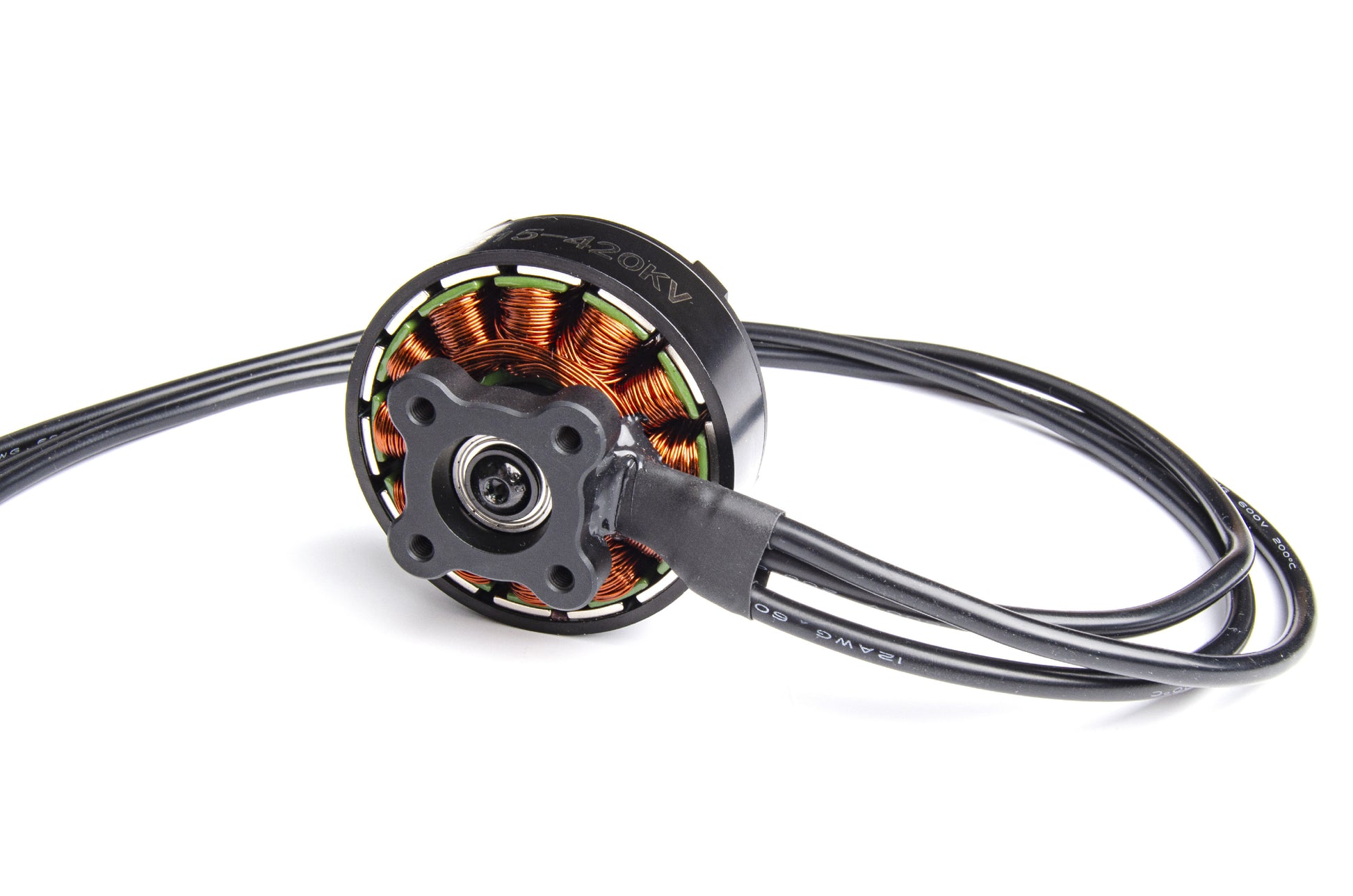

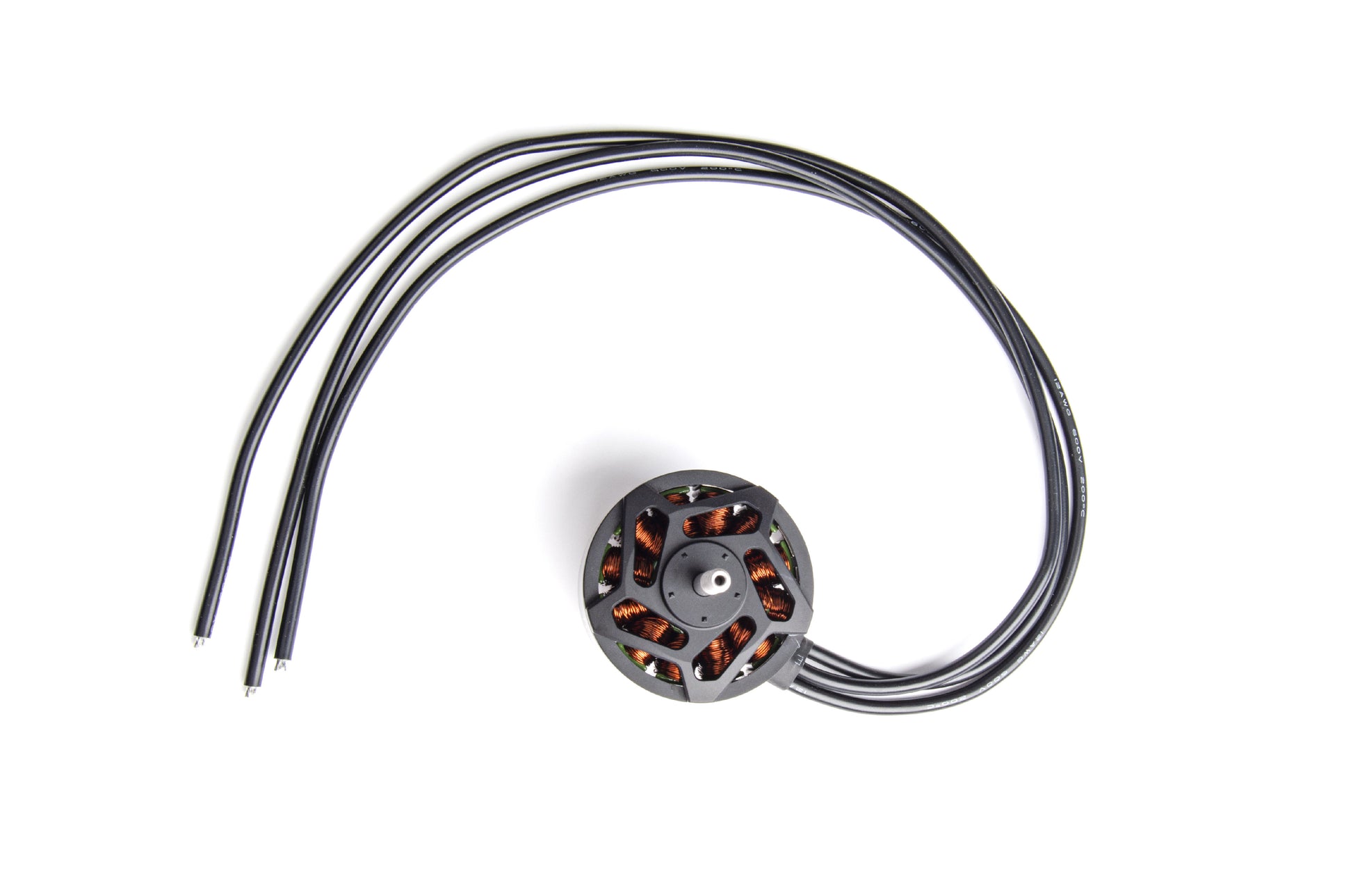

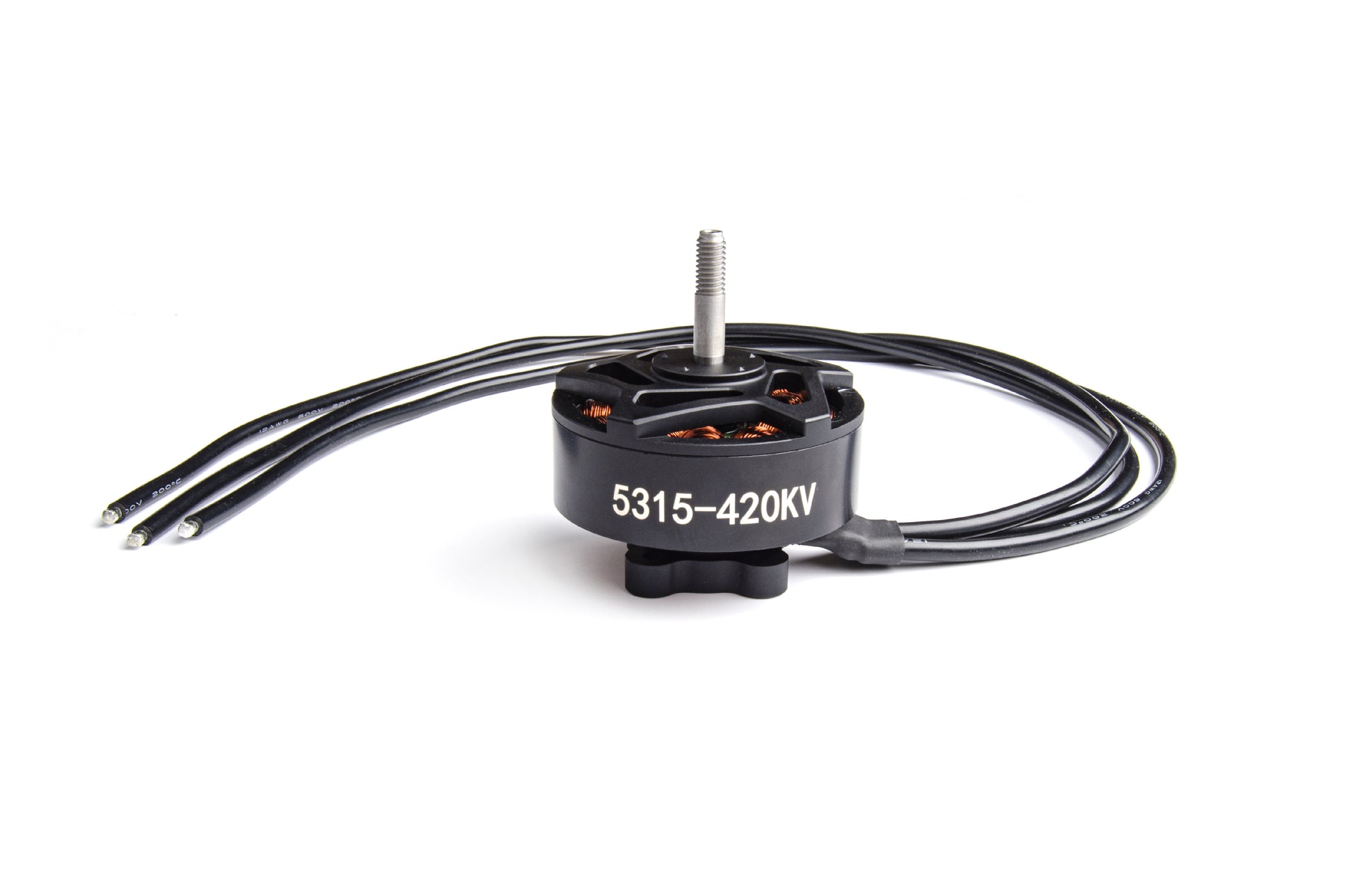

Pilotix 5315-420KV motor
Pilotix 5315-420KV is a high performance AC motor for powerful and efficient drones. It provides impressive thrust and consistent reliability, making it an excellent choice for heavy drones and demanding aviation applications. Built from durable materials and optimized for smooth operation, this engine ensures peak performance in every flight.
Specifications:
Model: F5315
Slot and pole: 12N14P
Motor size: Ø61xH44mm
Magnet: 120°C
Enameled wire: 180°C
Insulation test: 500V
Motor mounting dimensions: 4×M4@D30mm
Recommended propeller size: GF1507
KV: 420KV
Battery (LiPo): 6-8S
No load current /24V: ≤2.98A
Resistance: 20.25 mΩ ± 3%
Max. thrust (g): 6128g / 8324g
Max power: 1588.9W / 2980W
Wire size (AWG): 12#
Wire length (mm): 600mm ± 3
Dynamic balance: ≤20mg
Weight (with wire): 401g
Package includes:
1x Pilotix 5315-420KV
