Optic Fiber Roll Pilotix 15km SE V2

Name: Optic Fiber Roll Pilotix 15km SE V2
Brand: Baltic Drones
SKU: 6809
Price: 443.22 EUR
Availability: OutOfStock

Optic Fiber Roll Pilotix 15km SE V2

Brand: Pilotix

€443,22

~~€492,47~~ €443,22

-10% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

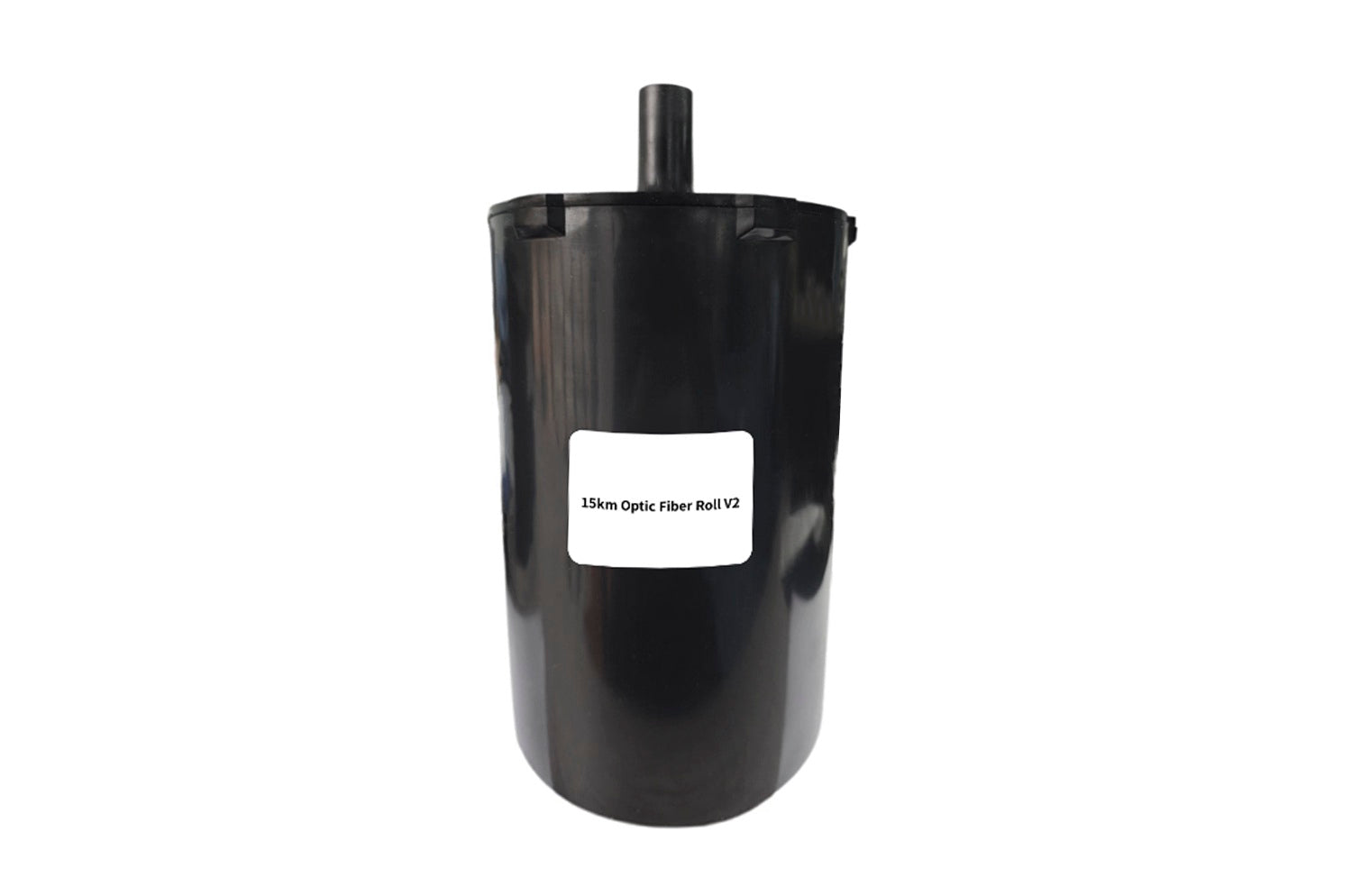

Optic Fiber Roll Pilotix 15km SE V2

The Pilotix 15km SE V2 optical roll is designed for long-distance, high-bandwidth communications where radio transmission is limited or unavailable. Ideal for professional drone systems, underwater or terrestrial robotics, this fiber ensures low latency data transmission with minimal signal loss.

Important notes:

- For reliable communication at a distance of 5 km, 10 km or 15 km, we recommend choosing a transmitter with a range of up to 20 km. For communication systems with a range of 20 km and more, a transceiver with a range of 40 km is recommended.

- Pilotix optical communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility or take responsibility for correct operation when using devices from other series.

Specifications:

Model: 15km Optic Fiber Roll SE V2
Thread Type: G657A2
Fiber diameter: 0.28 mm ±0.01
Fiber length: 15 km
Fiber weight: 80 g/km
Optical attenuation:
- 1310 nm: ≤0.35 dB/km, WT 0.329
- 1550 nm: ≤0.25 dB/km, WT 0.185
Optical interface: FC
Shell Material: Resin
Working temperature: -40 ~ +85 °C
Material: ABS
Color: black
Size: 147 x 276 mm
Weight: 1500 g

The package contains:
1x optical fiber Pilotix Roll 15km SE V2
