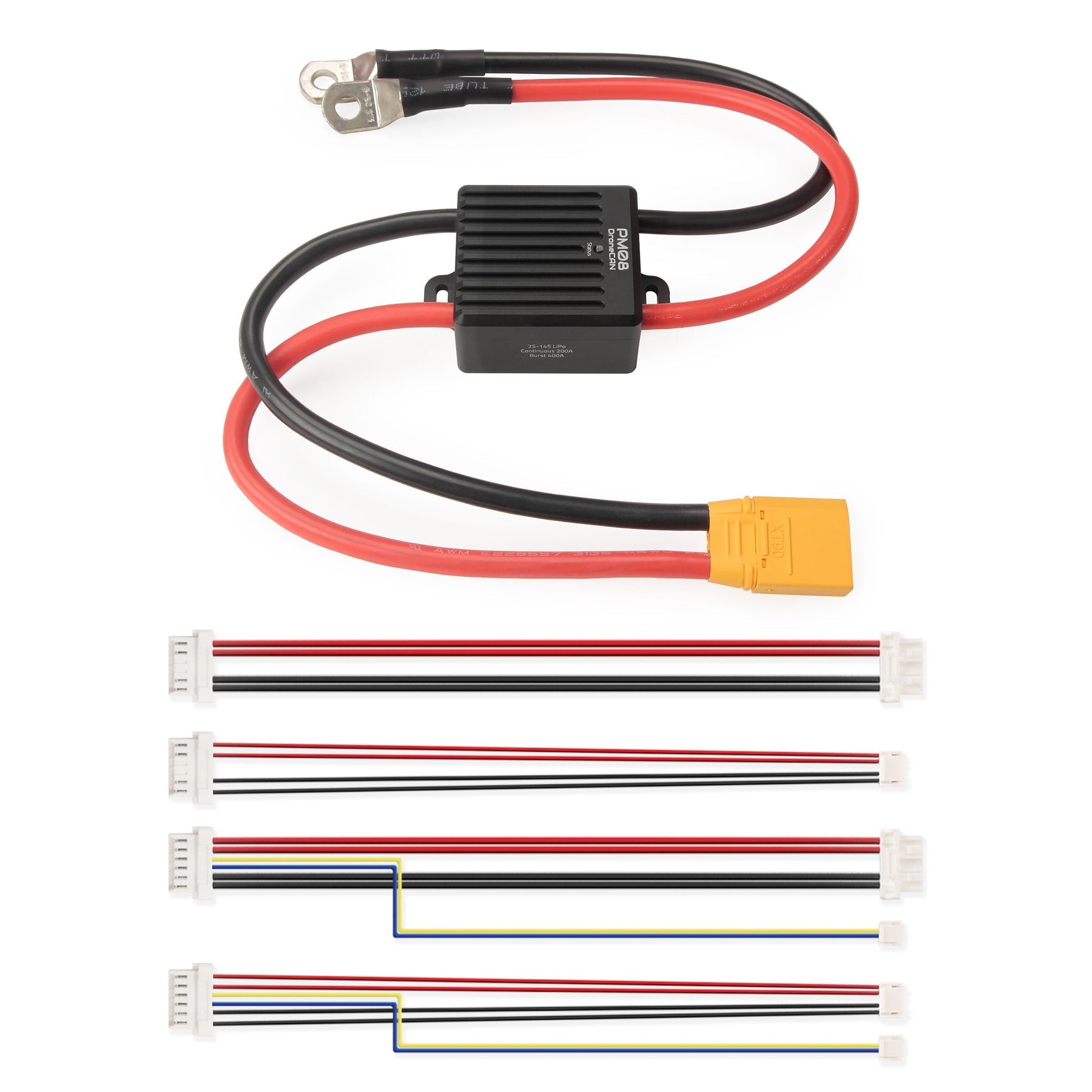

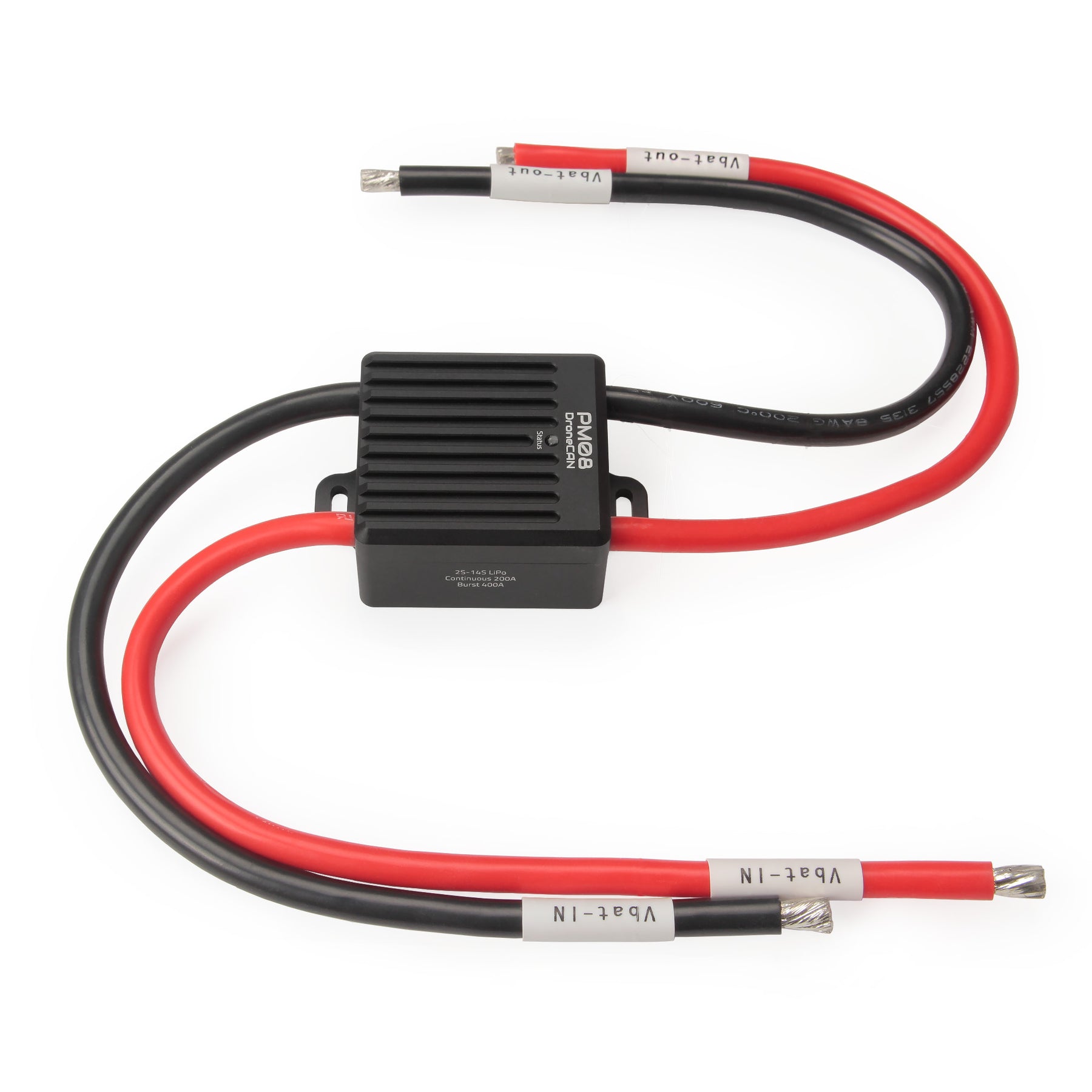

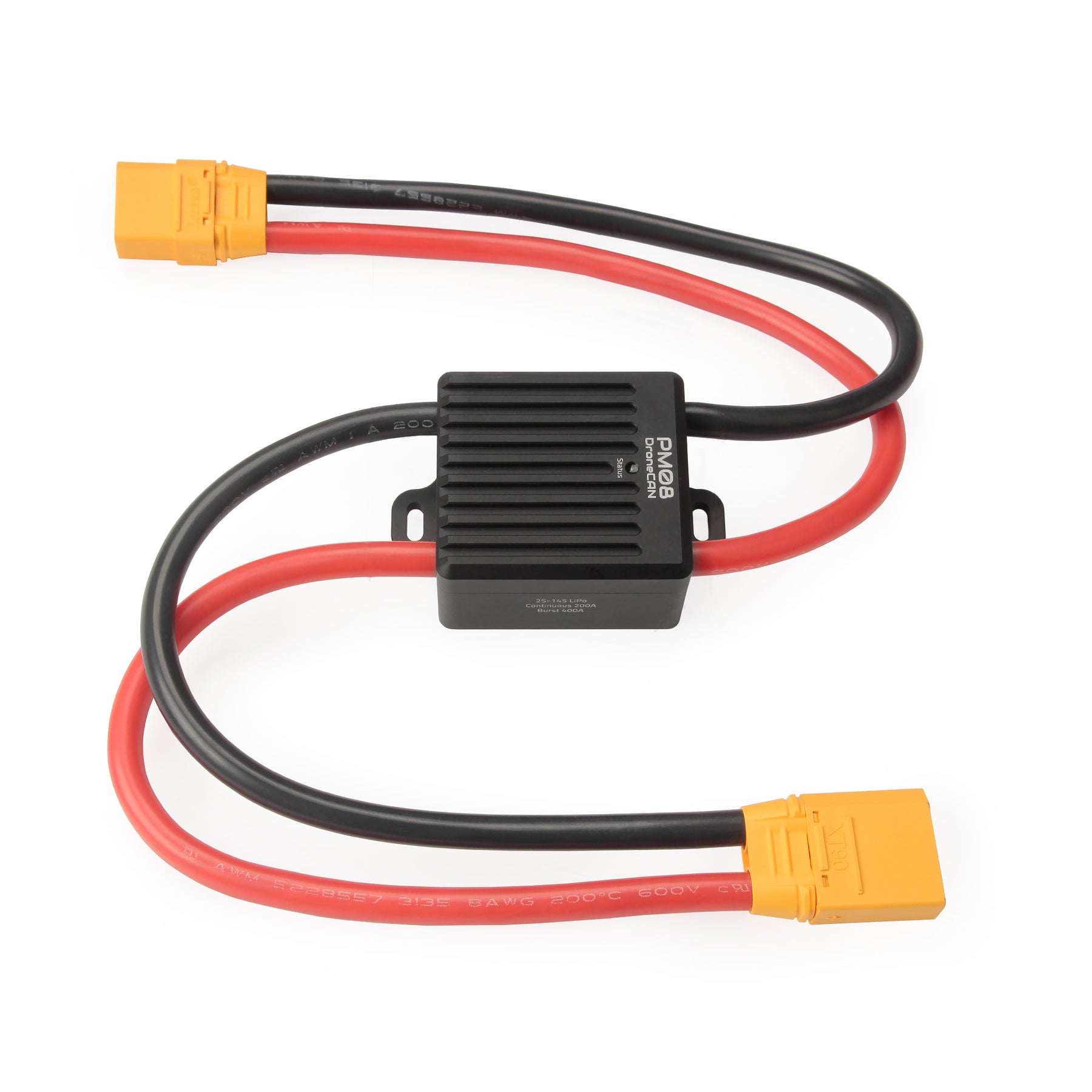

Power module Holybro PM08-CAN 14S 200A (XT90 connector) The Holybro PM08-CAN 14S 200A Power Module (XT90 Connector) is a high-performance power management solution designed for drones and robotics. It supports 2-14S battery configurations with 200A continuous current and 400A burst current and ensures reliable power supply. It features the DroneCAN communication protocol, which ensures seamless integration with CAN-enabled flight controllers. The module includes two independent 5V BEC outputs, a galvanically isolated current sensor (AEC-Q100 Grade 1 certified) for accurate monitoring and a high-precision temperature sensor for temperature control. Its compact design, separate sensor board and BEC, and aluminum heat-dissipating shell minimize electrical interference and ensure stable operation in demanding environments. Features: - Supports 2-14S and 200A Cont, 400A Burst. - DroneCAN communication protocol - Small and compact design - Two 5V outputs with independent integrated circuit BEC and circuits - Separate sensor and BEC board to minimize electrical interference - Galvanically isolated current sensor IC (meets AEC-Q100 Grade 1) - High precision temperature sensor for temperature monitoring - Highly efficient aluminum shell for heat dissipation Specifications: Processor: STM32F405RG 168MHz 1024KB Flash 196KB RAM Voltage input: 7~60.9V (2S~14S) Continuous current: 200A Burst current - 400A @ 25℃ 1 sec - 1000A @ 25℃ < 1s Maximum current sensing: 376A Current Accuracy: ±5% Temperature accuracy: ±1℃ Power port output: Each port: 5.3V/3A Protocol: DroneCAN Operating temperature: -25℃~85℃ Firmware upgrade: Support Calibration: Support The package contains: - 1x Holybro PM08-CAN 14S 200A power supply module (XT90 connector).
