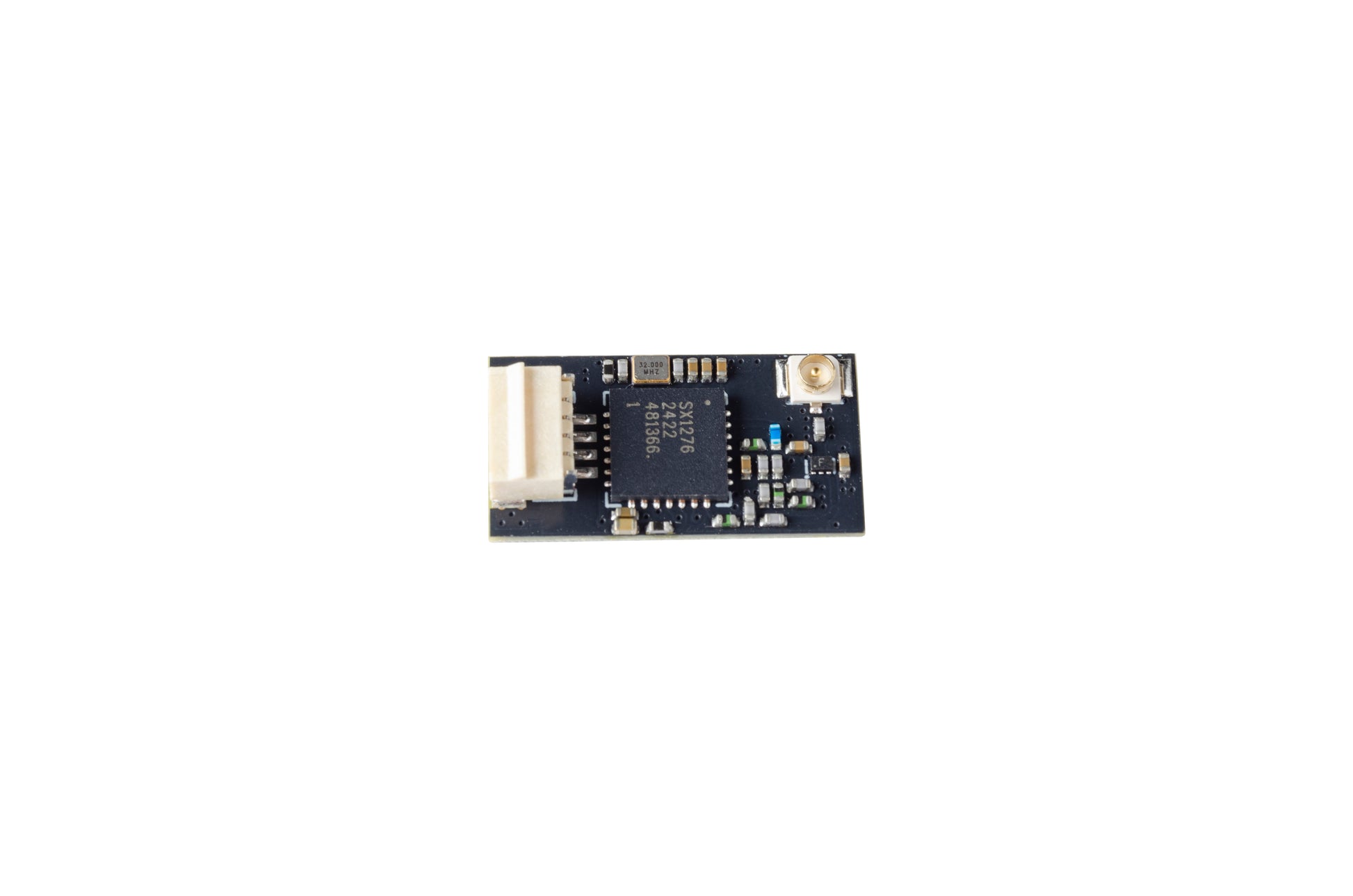

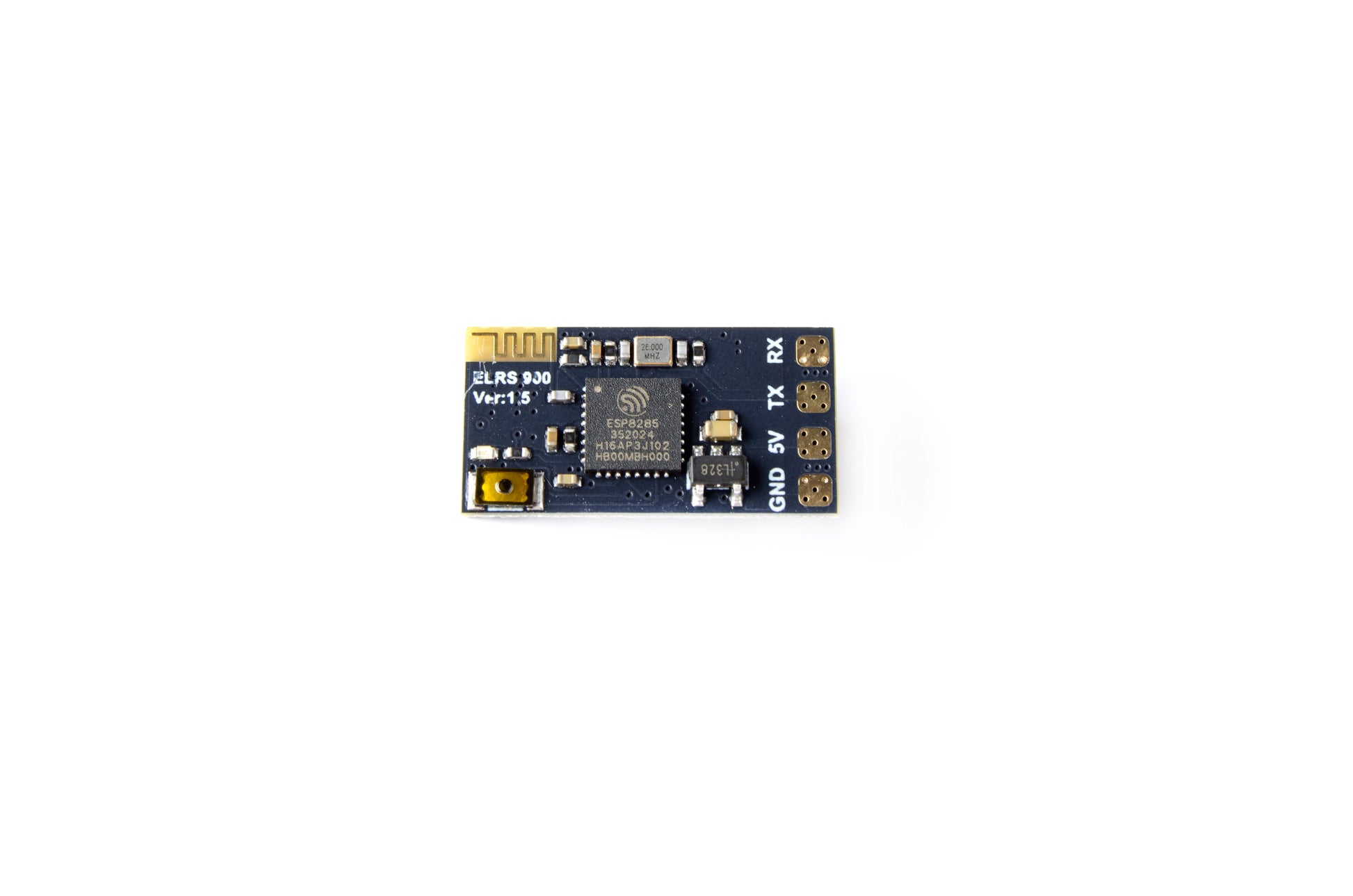

Pilotix ELRS 868/915M Nano receiver with T-antenna The Pilotix ELRS 868/915MHz receiver is equipped with a T-shaped antenna (IPEX-1 connector) and ensures optimal signal reception for uninterrupted communication between the drone and the transmitter.

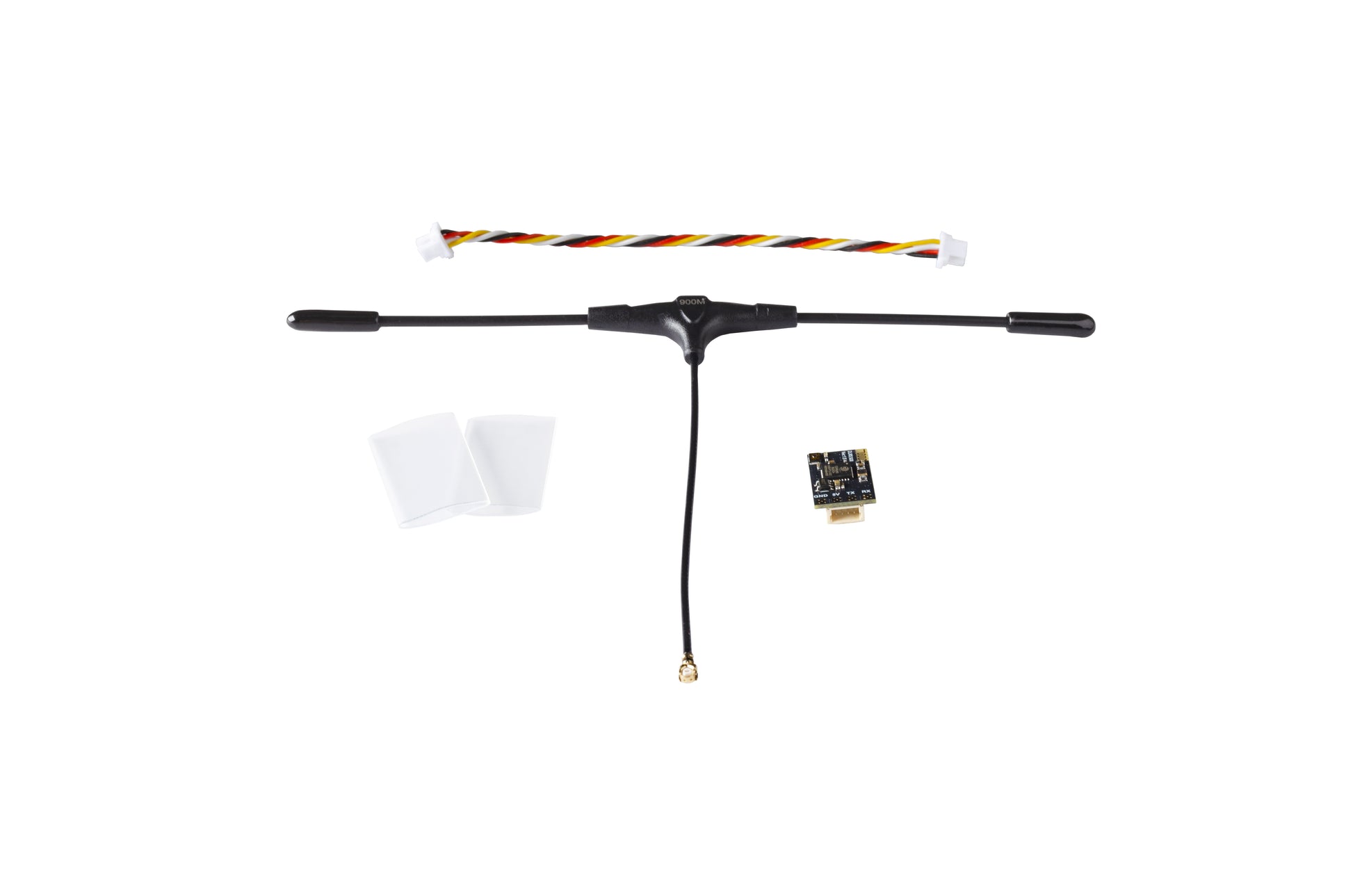

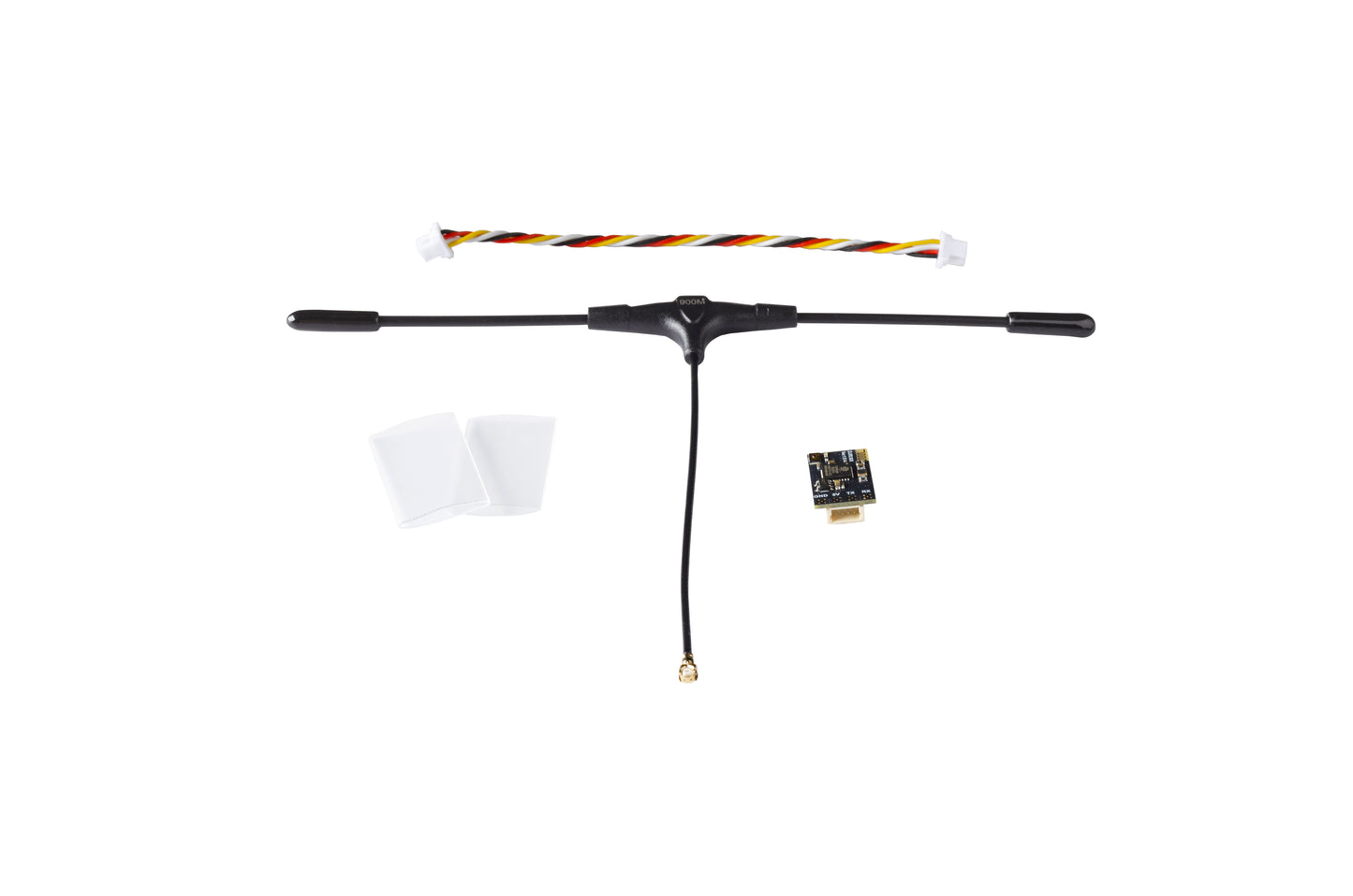

Installation is simplified with a connector interface, which eliminates the need for soldering and reduces installation time. This plug-and-play approach allows for quick and secure integration with the existing flight stack, making the Pilotix ELRS 868/915M a versatile and user-friendly choice for advanced FPV pilots. Specifications: Item: Pilotix ELRS 868/915M Nano with T-antenna Frequency band: 868/915 MHz Input voltage: 4.5V-5.5V Antenna connector: IPEX1 Type: ISM Weight: 6g Dimensions: 20x12mm Firmware: Aocoda 900 RX Receiver protocol: CRSF The package includes: 1x receiver

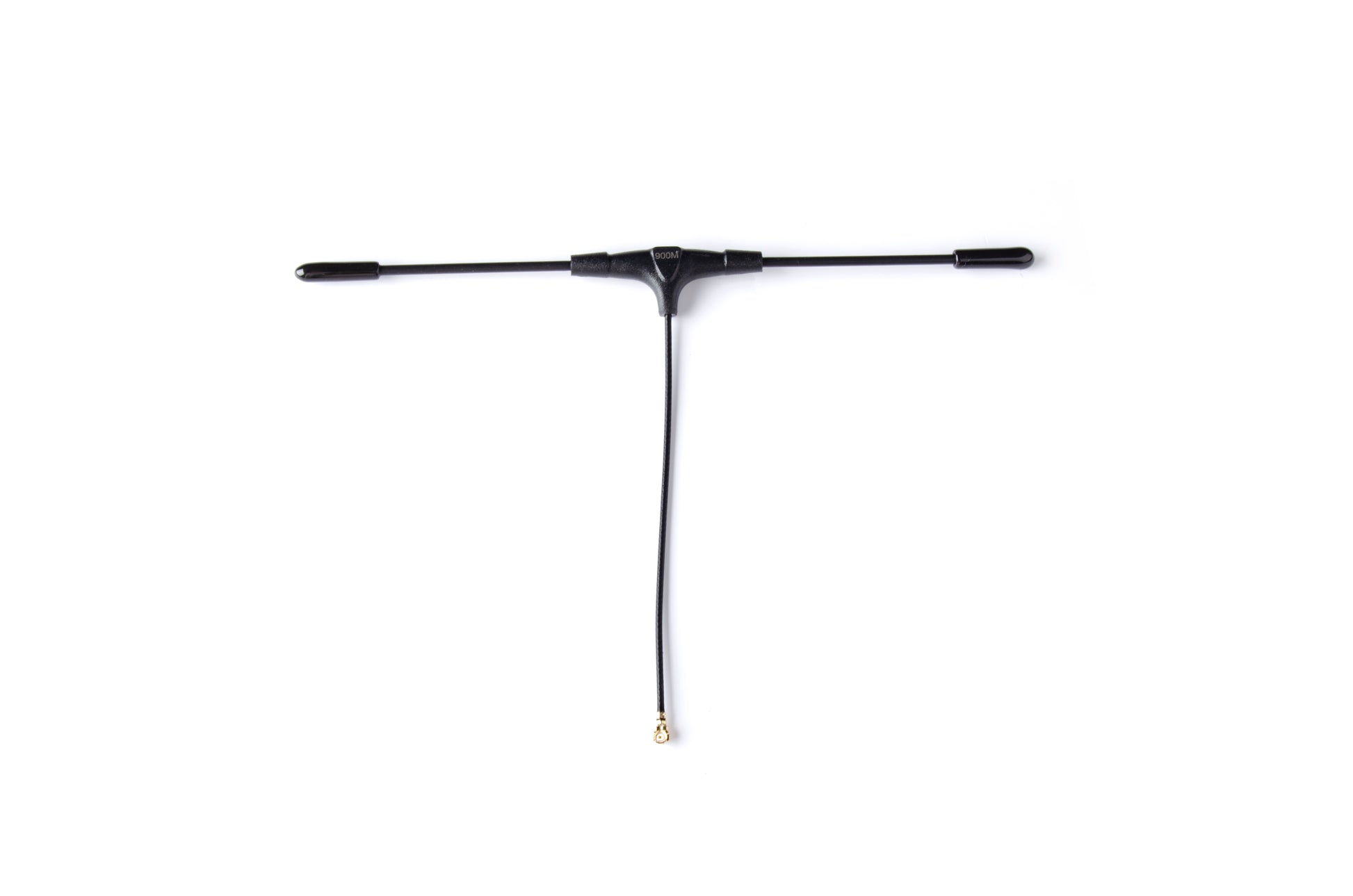

1x T-shaped antenna
1x 110cm connecting wire
1x transparent shrink tube
