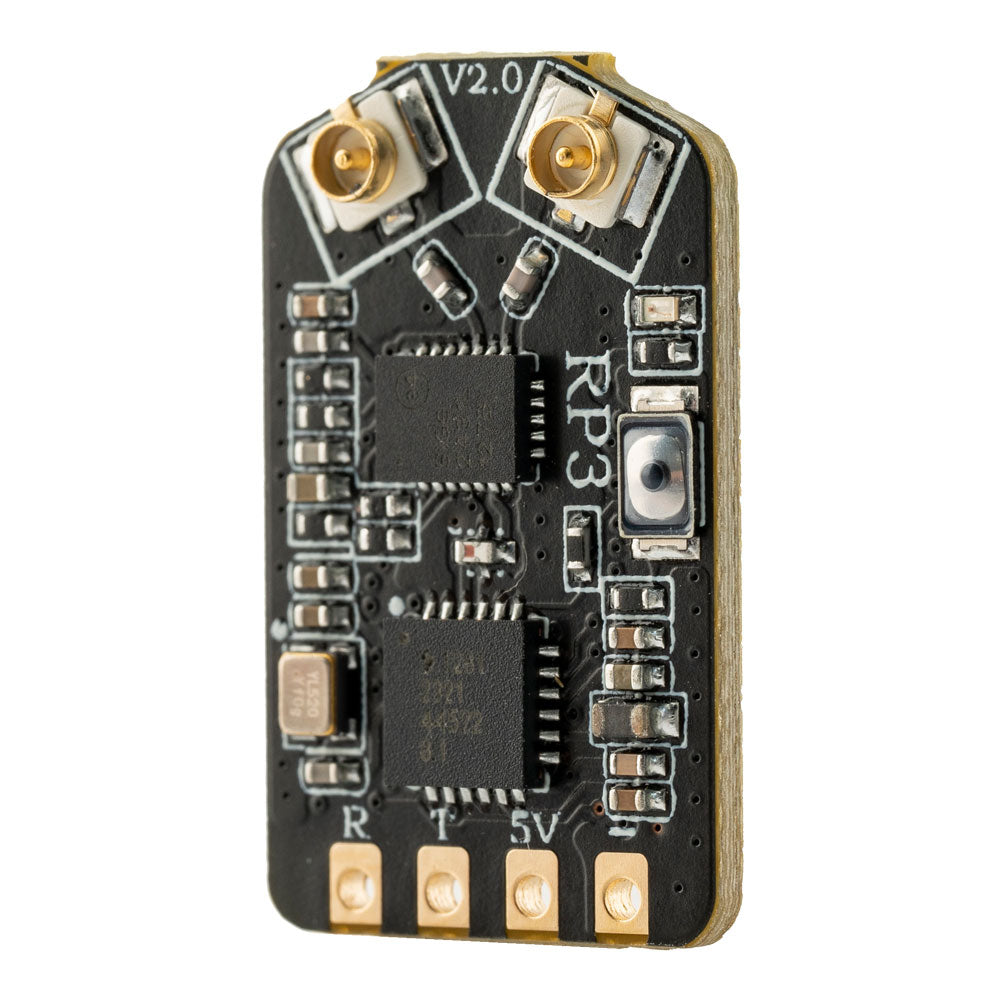

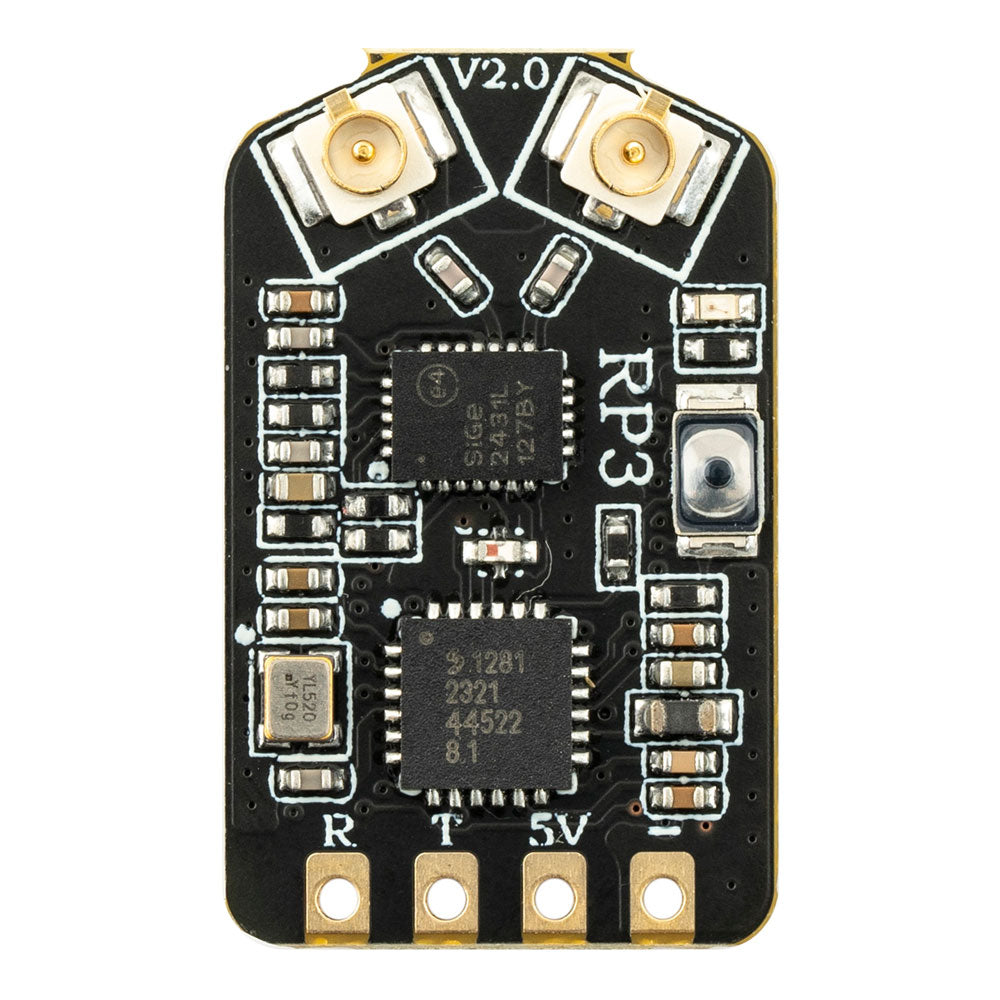

RP3 ExpressLRS 2.4GHz Nano Receiver (LBT) The RadioMaster RP series receivers now feature a built-in TCXO (Temperature Compensated Crystal Oscillator) that ensures reliable, stable and accurate signal reception, enabling superior performance in challenging environments and enhancing the flight experience. Developed around the ESP8285 MCU and SX1280IMLTRT RF chip, the RP series features Lora and FLRC 2.4GHz RF links offering incredible range and low latency. With built-in Wifi, FW updates can be done without removing the receiver. Binding can be done using a binding phrase, meaning no more binding plugs or awkward button presses when trying to insert a battery. The RP3 receiver includes a Skyworks SE2431L providing an LNA for improved receiver performance, a PA providing up to 100mW of telemetry power and antenna switching for antenna diversity. Function: - Optimized PCB design for better heat dissipation. - LNA for better receiver range. - PA for better telemetry range. - Antenna diversity for better signal stability and range. Notes: Available with standard ISM or EU LBT FW. EU LBT FW is required for use with
