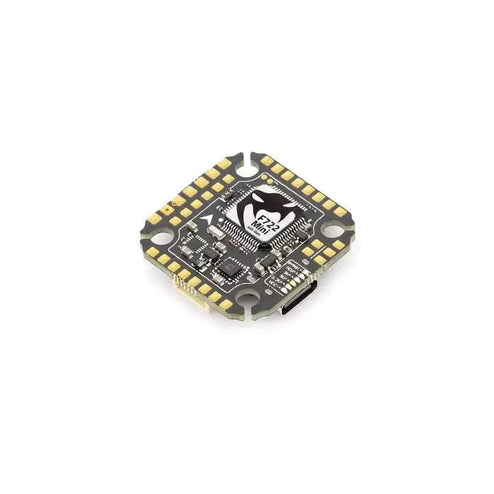

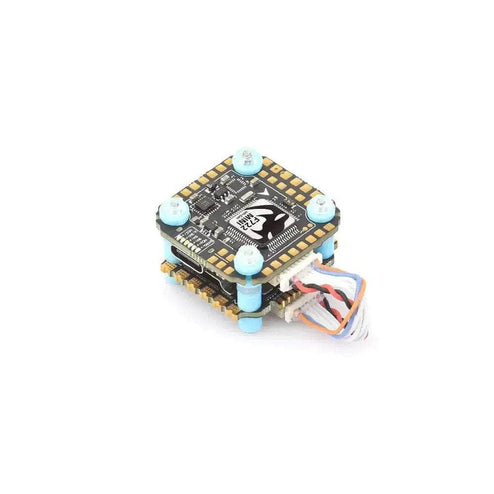

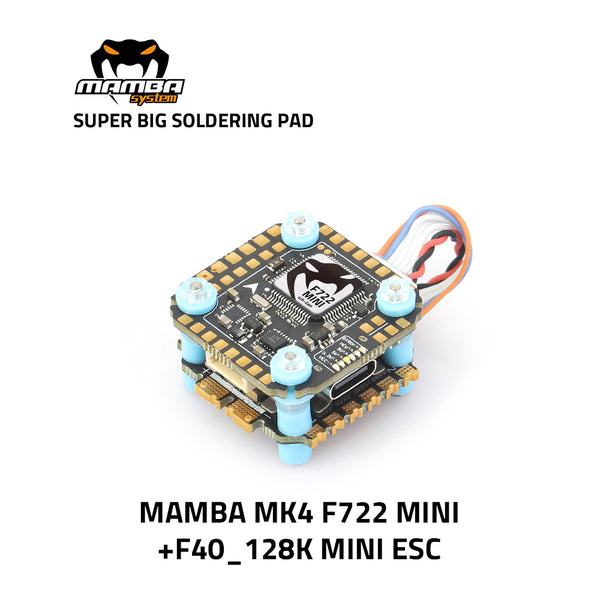

MAMBA MK4 F722MINI F40_128K MINI

Diatone has released its 4th generation F722 mini stack. The MK4 F722 mini 20x20 stack boasts larger pads, wider pad spacing, more UARTs, l2C and is configurable via the Speedy Bee app via built-in Wi-Fi.

Function
- Pad area increased by 30%
- Pad spacing increased by 100%
- MP9943 synchronous rectifier BEC
- Upgrade MINI DJI interface series and 5V 15W/9V 18W 2 BEC set
- USB Type C
- 6 Set UART and I2C
- 4 Set power protection
- 32Bit ESCs all support 128K
- Mini FC series uses 2mm and 3mm mounting holes, with a special - damping ring
- Upgrade twisted pair cable anti-interference and reinforcement process

Specifications:
Model: Mamba Mini F722 MK4
Input: 6S
MCU: ICM42688P
Barometer: Yes
OSD: Yes
Blacbox: 16M Flash memory
Uarts: 6 hundred
Protocol: Dshot300/600/1200
ESC Telemetry: Yes
Power LED: Yes
LED driver: BF LED
F.Port: Yes
Buzz: Yes
TVS Protection: Yes
BEC: 3.3V 0.5A & 5V 2.5A
Mounting pattern: 20x20 M3/M2

Model: Mamba F40 128k Mini ESC
Input Voltage: 6S Lipo
Maximum continuous current: 40A
Maximum burst current: 45A
Target: BLHeli_32 MAMBA F40_128K_MINI
Protocol: Dshot300/600/1200
PWM Range: 24-128K
Mounting pattern: 20x20 M2/M3

The package includes:
1x Diatone Mamba MK4 F722 Mini F40_128k 2-6S 20x20 Stack/Combo
5x M2 silicone grommets
5x M3 silicone grommets
5x M2 ESC isolation posts
5x M3 ESC insulating posts
1x 8-pin single-ended flight controller cable
2x 8-pin cable
1x 6-pin air unit cable
1 x XT60
1x capacitor
