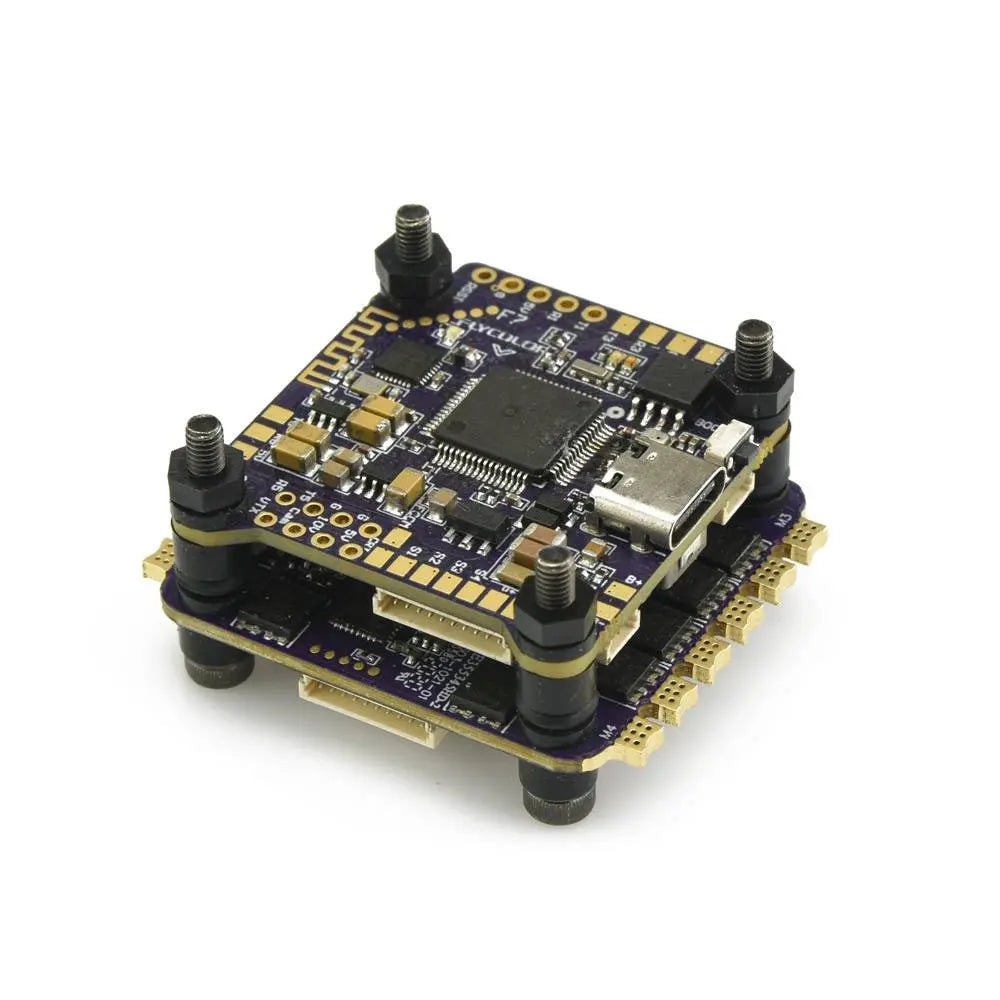

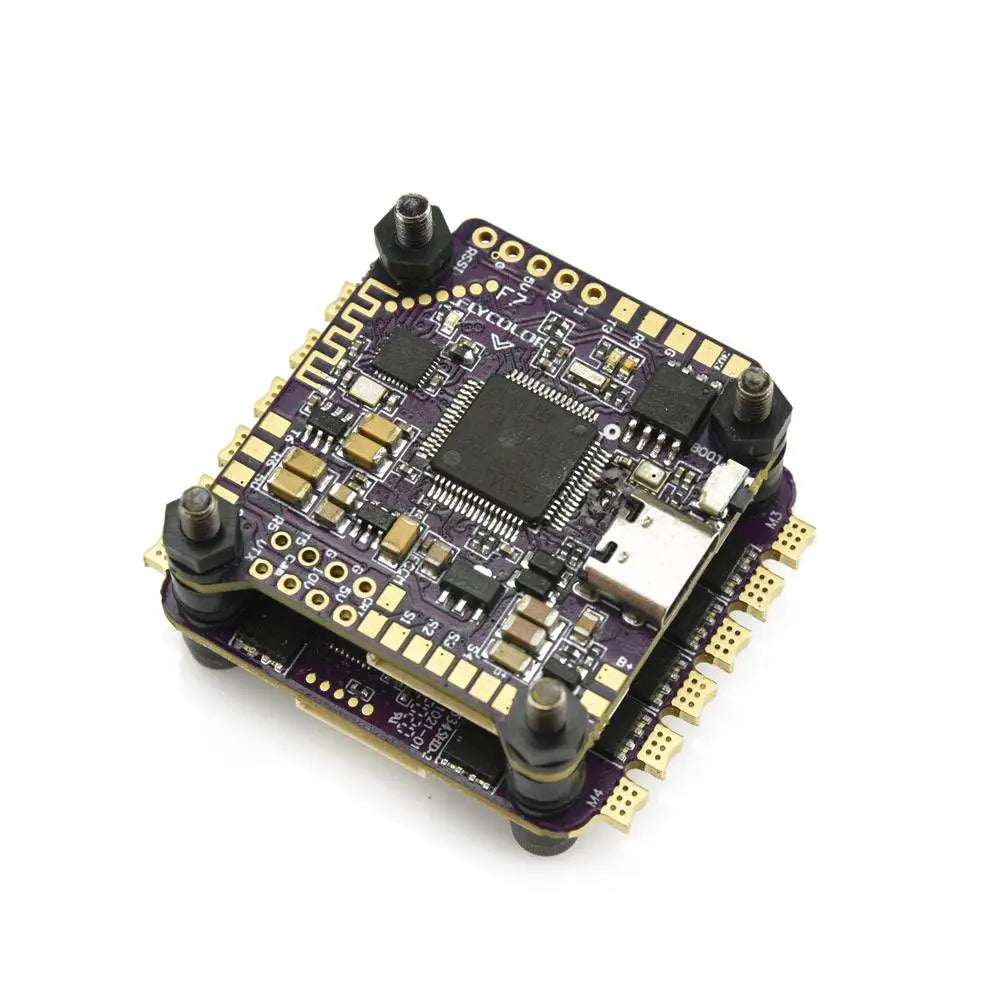

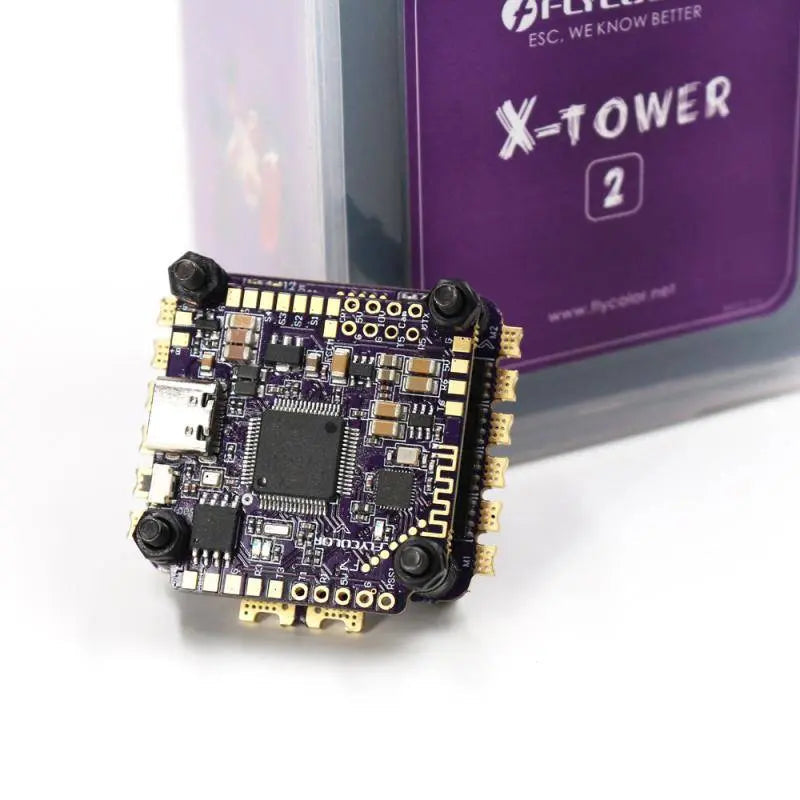

Stack Flycolor X-Tower 2 60A F7

Function:

- High Performance MOSFETs: This assembly features MOSFETs that have low Rds, can handle large currents efficiently, making it ideal for fast flight conditions.

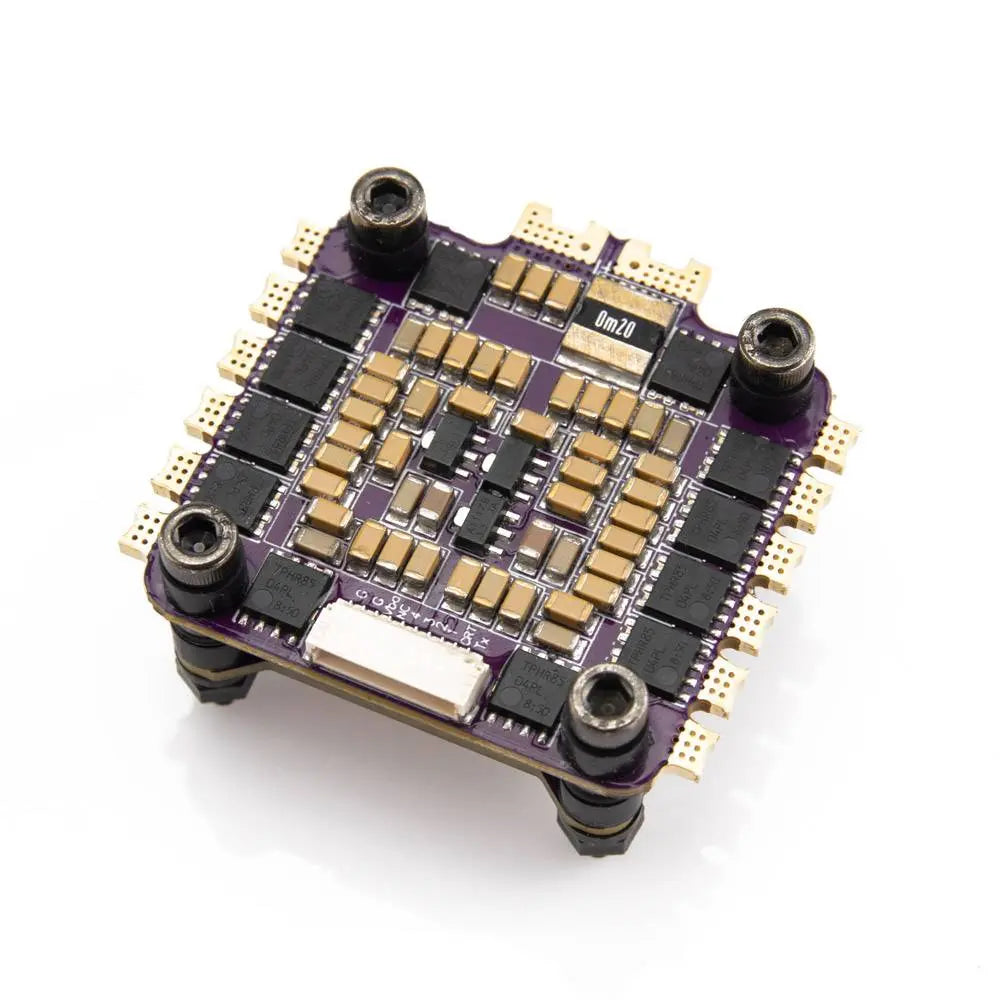

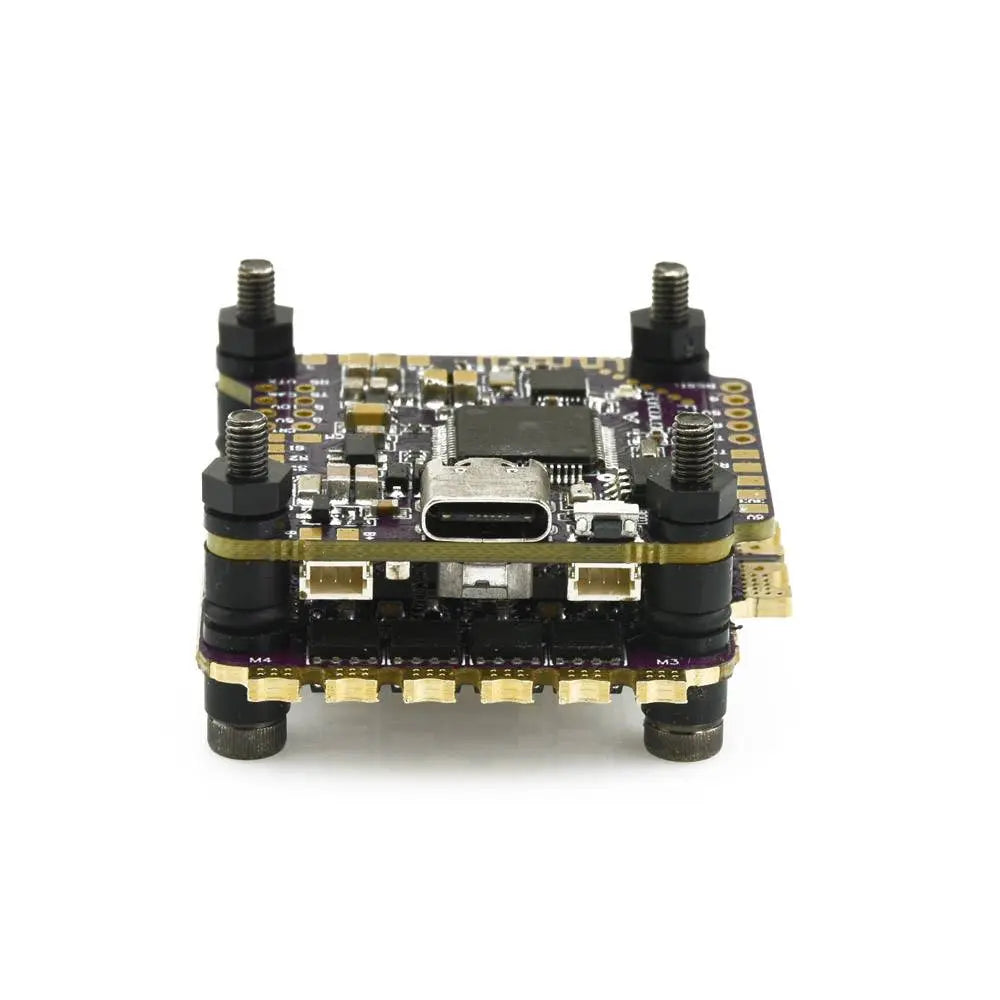

- Double-layer tower structure: 4-in-1 ESC and FC are connected by cable in a double-layer tower structure, supported by silicone vibration dampers. This design minimizes the impact of vibration on flight control.
- Dimmed Light with Regenerative Braking: The ESC uses Dimmed Light Regenerative Braking technology, which allows very fast engine deceleration and includes active idling.
- Universal signal support: The system supports various input pulse widths, including common 1-2ms, Oneshot125, Oneshot42 and Multishot. Additionally, it supports all Dshot and Proshot signals.
- Wide receiver compatibility: Compatible with SBUS, SPEKTRUM1024/2048 and other remote control/receive modes.
- Integrated power outputs: The flight controller includes integrated 3.3V, 5V and 12V outputs for powering the receiver, VTX, camera, buzzer, LED and other peripherals.
- LED port and safe power supply: It has a 4-way LED port with independent 5V BEC power supply, which ensures safer and more reliable power distribution.
- Customizable LED colors: LED colors can be adjusted using the Betaflight Configurator.

Designed for high performance and versatility, this stack is suitable for demanding flight conditions and supports a wide range of configurations and peripherals.

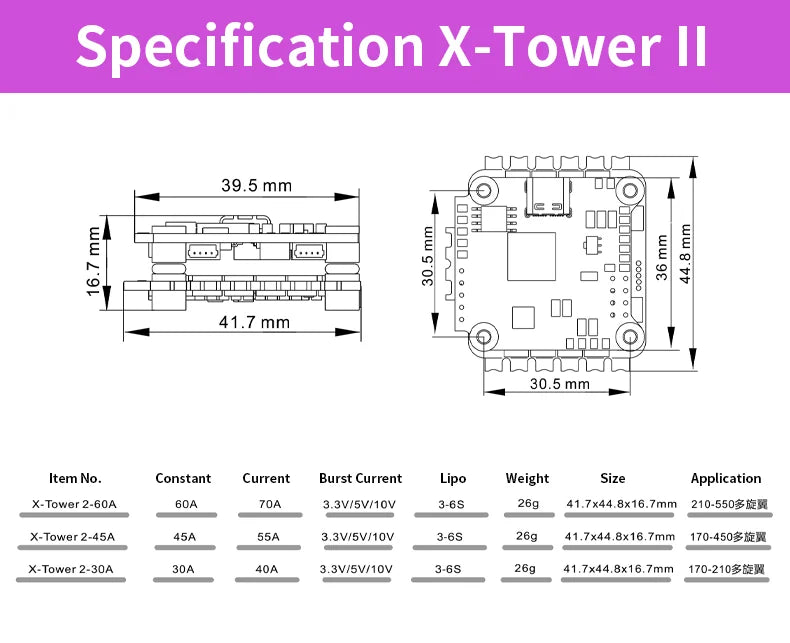

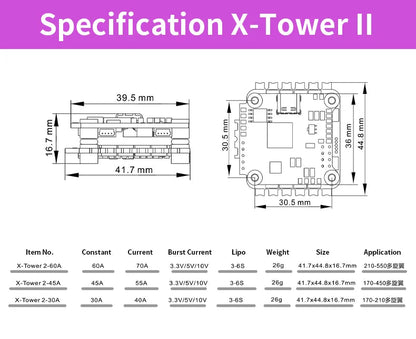

Specifications:
Model: X-Tower 2 60A
Support voltage: 3-6S Lipo
Con. Current: 60A
Explosive current: 70A
Construction: Tower
FC voltage: 3.3V/5V/10V
MCU F7: STM32F722
F7 Firmware: STM32F7X2 (Configuration: FLYCOLORF7)
ESC firmware: Flycolor_X_Cross_BL_32
Bluetooth: FC_Bluetooth.
USB: Type C
Installation hole: 30.5×30.5 mm, M3
Size: 41.7×44.8×16.7mm
Weight: 26g

The package includes:
1x Stack Flycolor X-Tower 2 60A F7
