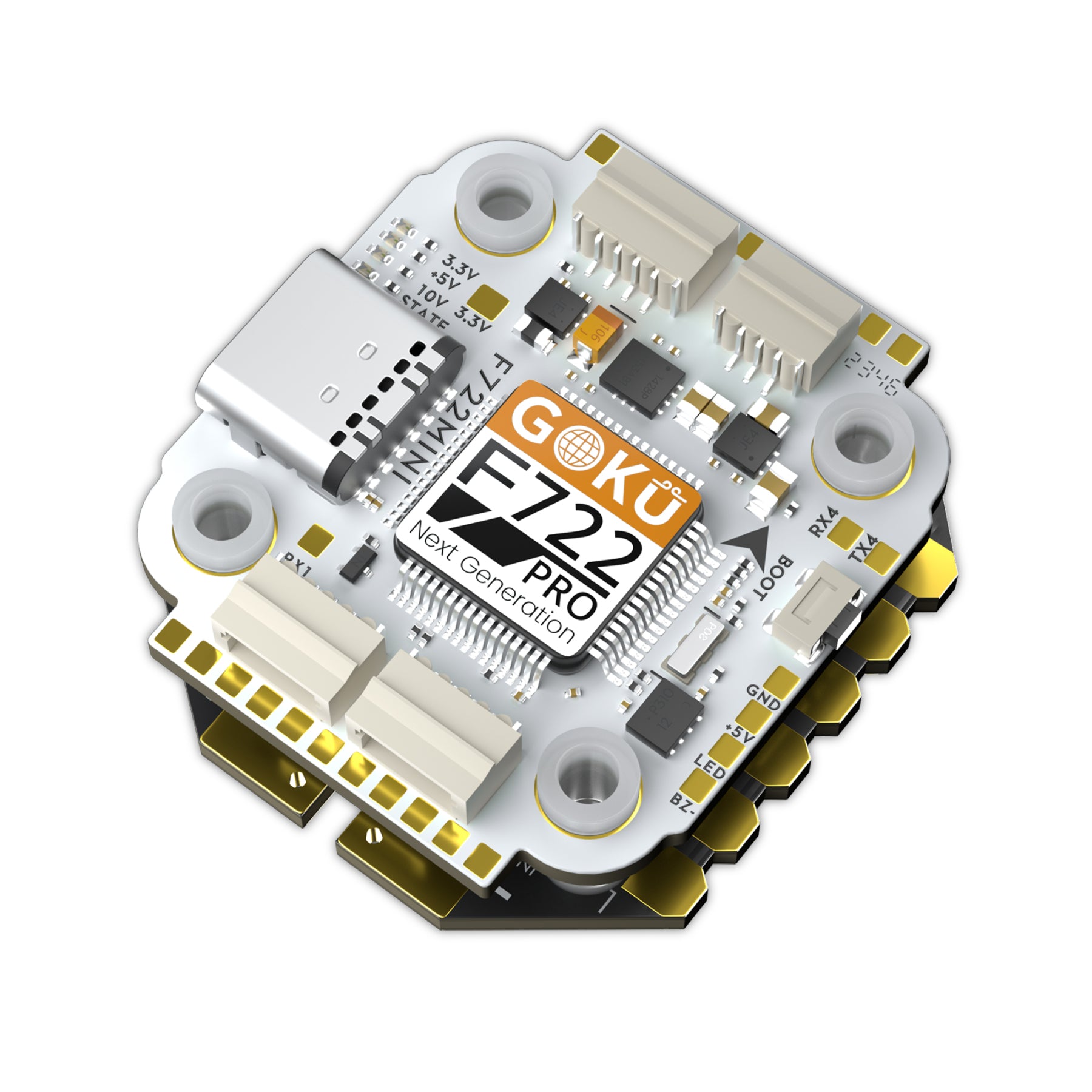

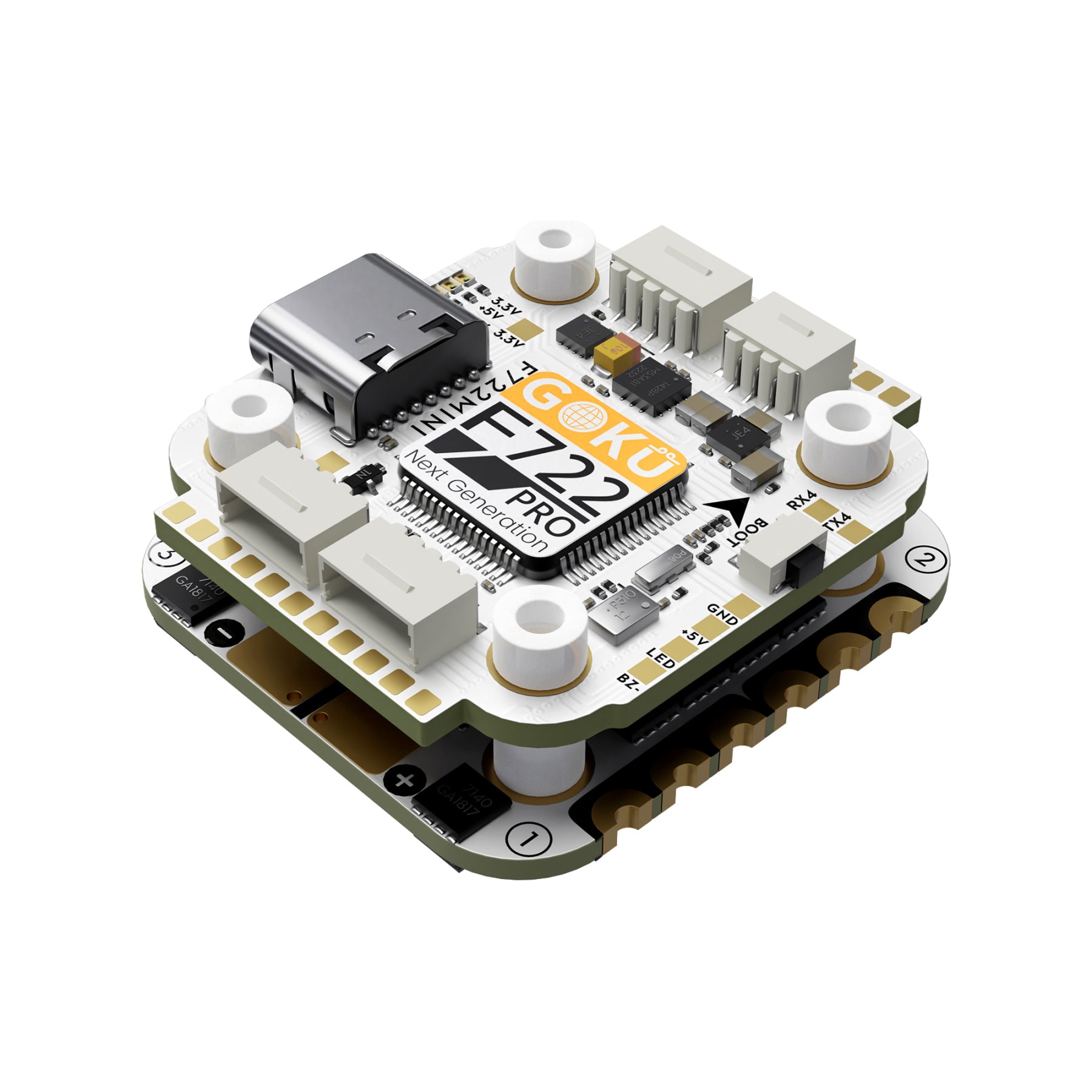

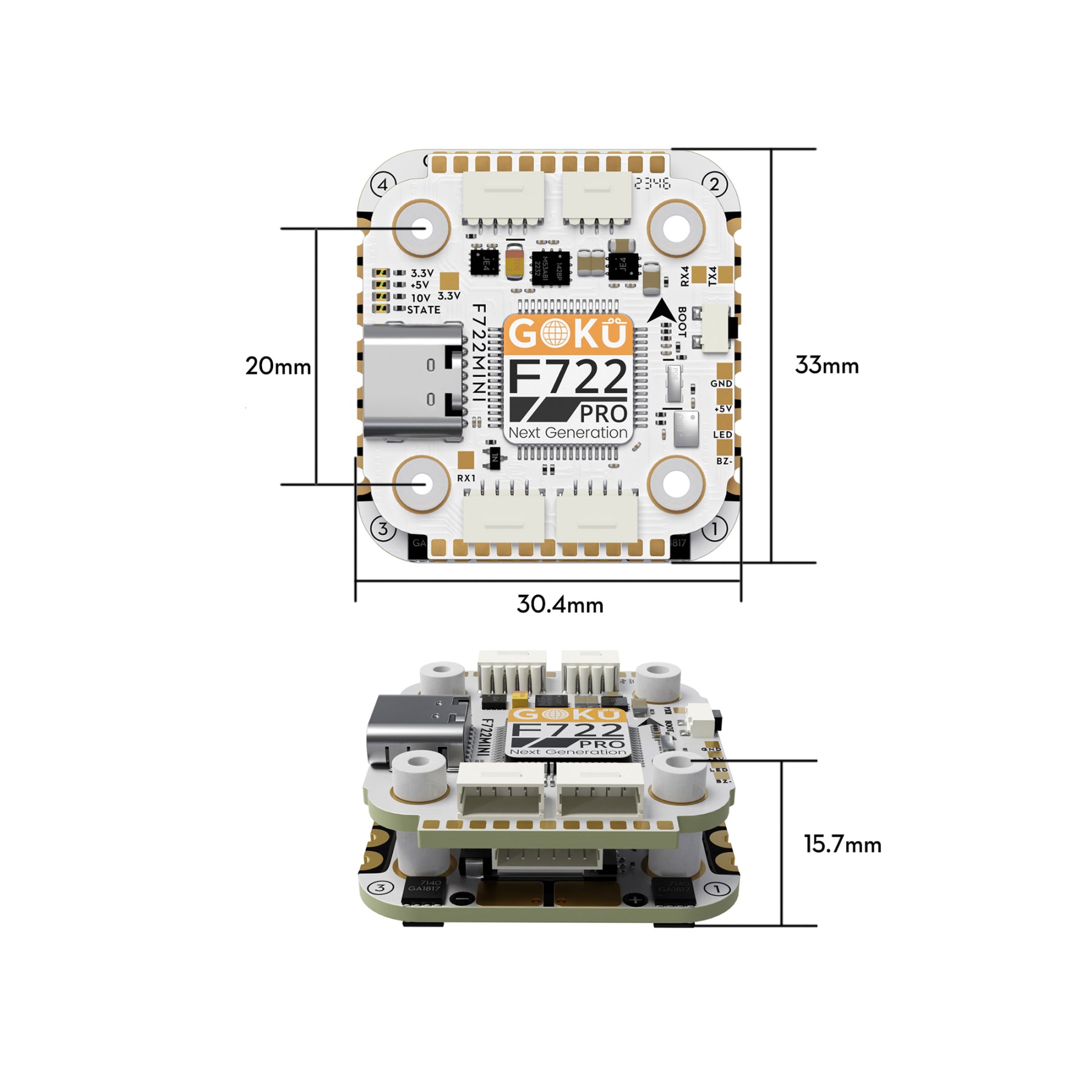

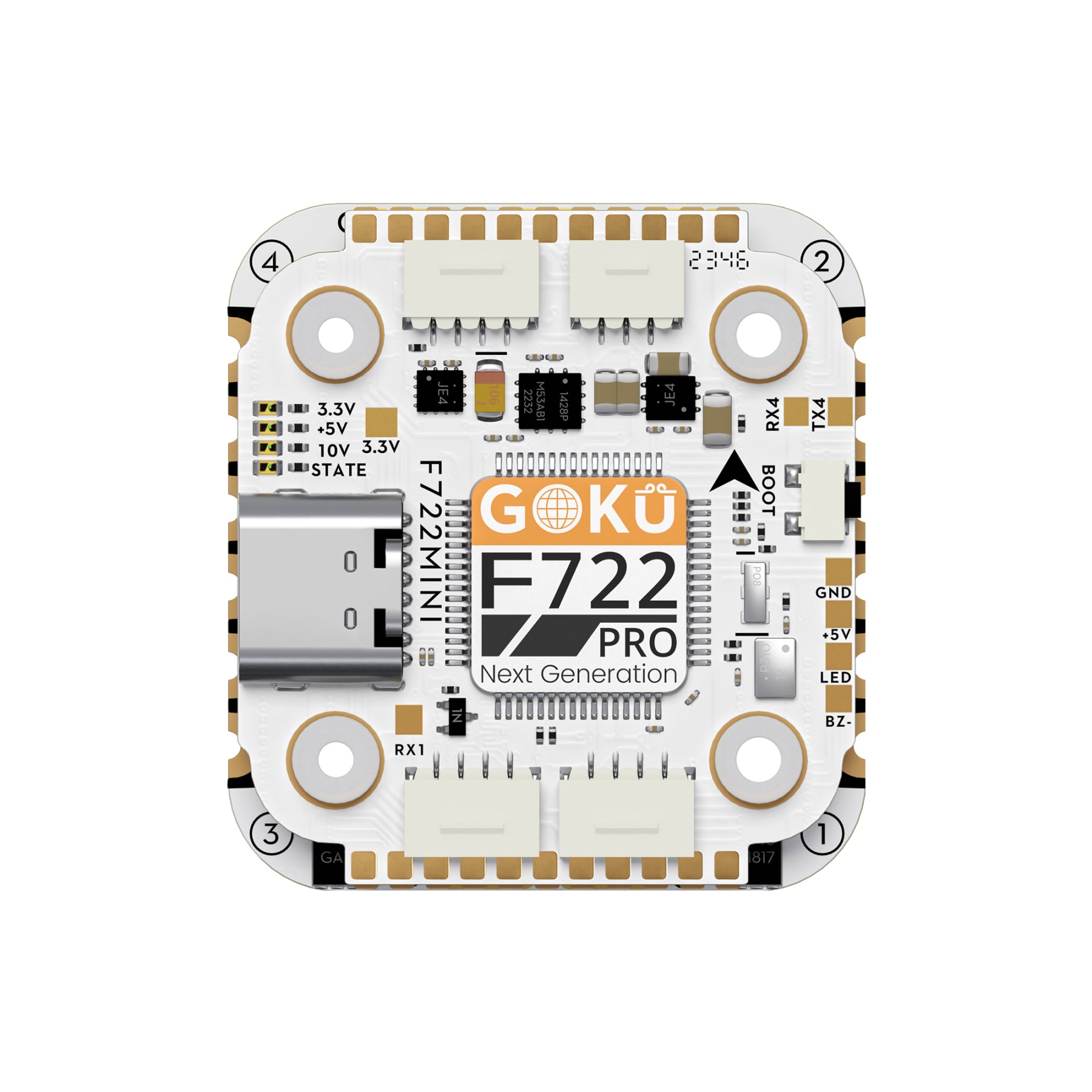

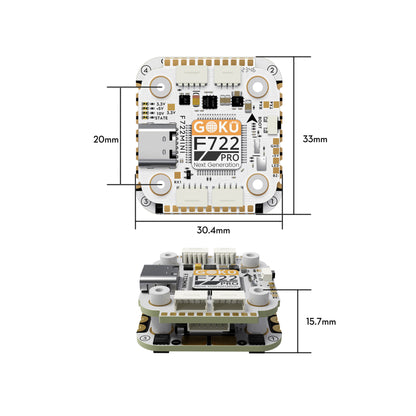

Stack Flywoo GOKU F722 Pro Mini V2 45A 32Bit 128K Stack (20x20) (AM32) The Flywoo GOKU F722 Pro Mini V2 Stack is a high performance 20x20 flight controller and ESC combo tailored for advanced FPV pilots. The FC is built on a powerful STM32F722 MCU, equipped with an ICM42688 gyroscope, barometer, OSD and a 16MB black box for enhanced flight data logging. Combined with GOKU G45M 4 in 1 ESC supporting AM32 firmware, 128kHz PWM frequency and 45A continuous current, it ensures smooth, sensitive flight and precise control. Designed to be compatible with 2-6S LiPo, this stack is ideal for freestyle or long flights. It offers plug-and-play support for DJI O3 and other peripherals. Flight controller: Firmware (BF): FLYWOO F722PROV2 Firmware (INAV): FLYWOO F722PRO MCU: STM32F722 Gyroscope: ICM42688 OSD: AT7456E Barometer: DPS310 / SPL06 Black box: 16 MB UART: 1 / 2 / 3 / 4 / 5 / 6 Input Voltage: 7.4V-26V (2-6S LiPo) BEC: 10 V 2 A / 5 V 2 A Dimensions: 32 x 29 x 20 mm Mounting holes: M2 20 × 20 mm Weight: 9.9 g ESC: Name: GOKU G45M 4-in-1 Firmware: GOKU_F4A32_PRO Supported by: AM32 Supported protocols: DShot300 / DShot600 / DShot1200 PWM frequency: 24K – 128KHz Input voltage: 2-6S LiPo Continuous current: 45A The package contains: 1 × GOKU F722 PRO Mini V2 Flight Controller 1 × GOKU G45M 32bit 4in1 ESC 1 x FC & ESC connection cable 1 x buzzer connection cable 1 x GPS connection cable 1 x DJI O3 connection cable 1 x receiver connection cable 5 x M3 damping balls 5 x M2 damping balls 1 x camera connection cable
