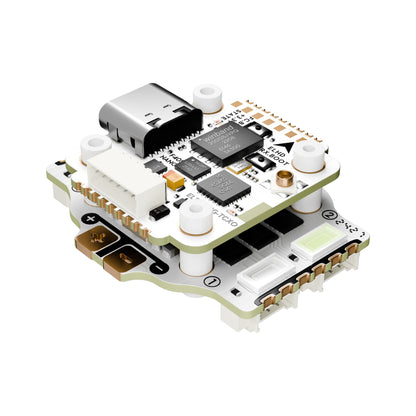

Stack Flywoo GOKU GN405 Nano HD 20A Stack V3 with ELRS The Flywoo GOKU GN405 Nano HD 20A Stack V3 combines a high-performance F4 flight controller with a reliable 20A 4-in-1 ESC in a compact 16x16mm stack that is ideal for micro FPV setups. The FC is powered by an STM32F405 BGA chip and equipped with an ICM-42688P gyroscope for smooth flight performance, as well as a 2.4GHz ELRS for sensitive long-range control. Combined with a 20A ESC supporting multiple DShot and PWM protocols, this stack provides reliable performance for 2-6S LiPo batteries. It's the perfect solution for pilots looking for lightweight construction without sacrificing performance or functionality. Flight controller: MCU: STM32F405 BGA Gyroscope: ICM-42688P (SPI) Barometer: DP310 OSD: No Black box: 16 MB USB: Type C UART: 1 / 2 / 3 / 4 / 5 / 6 BEC: 5V 2A / 3.3V 0.5A Input Voltage: 7.4V-24V (2-6S LiPo) Dimensions: 25 x 23 x 8 mm Mounting: M2 16 x 16 mm Weight: ~3 g ESC: ESC MCU: BB21F16G Continuous current: 20 A Input: 2-4S LiPo Supported protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600 Dimensions: 27 x 33 mm Mounting: M2 16x16 mm Weight: 4.5 g Power LED: Yes The package contains: 1 × GOKU GN405 Nano HD Flight Controller 1 x GOKU BS 20A ESC V3
