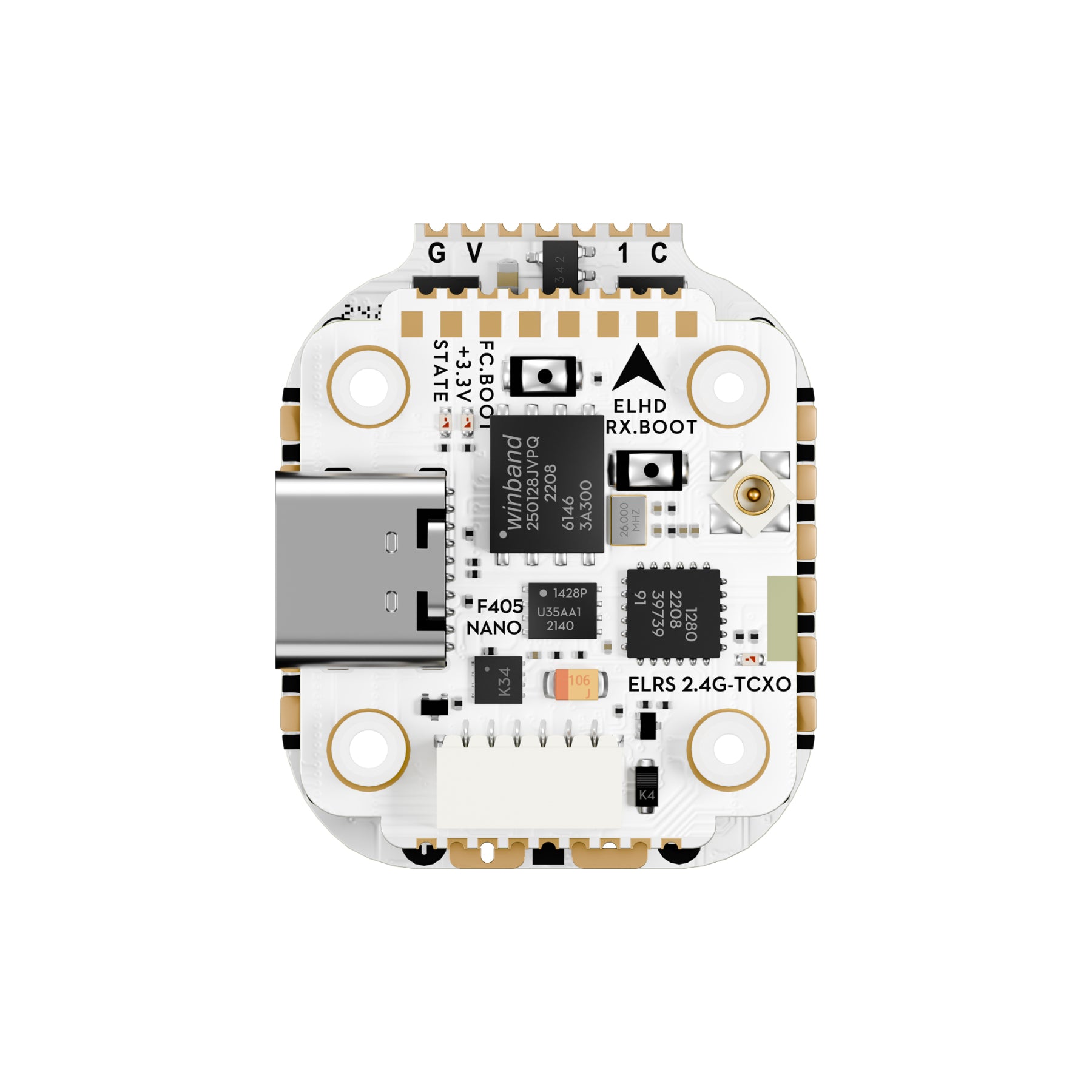

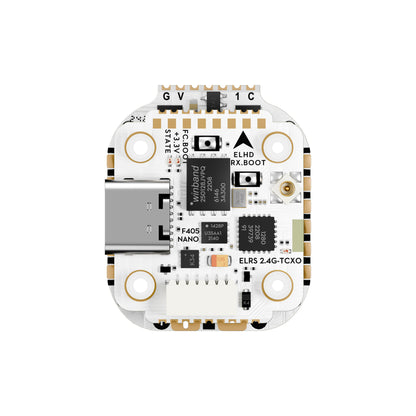

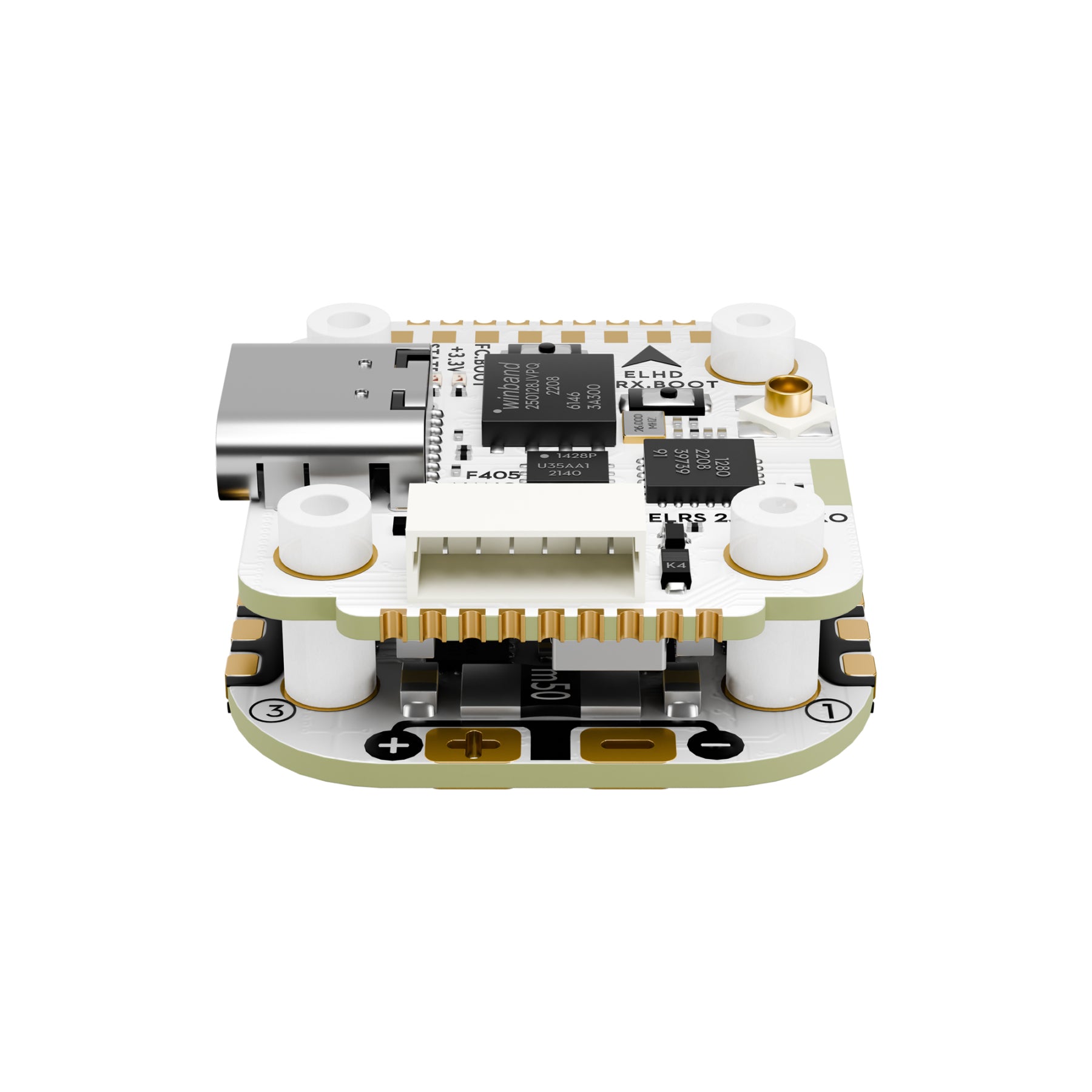

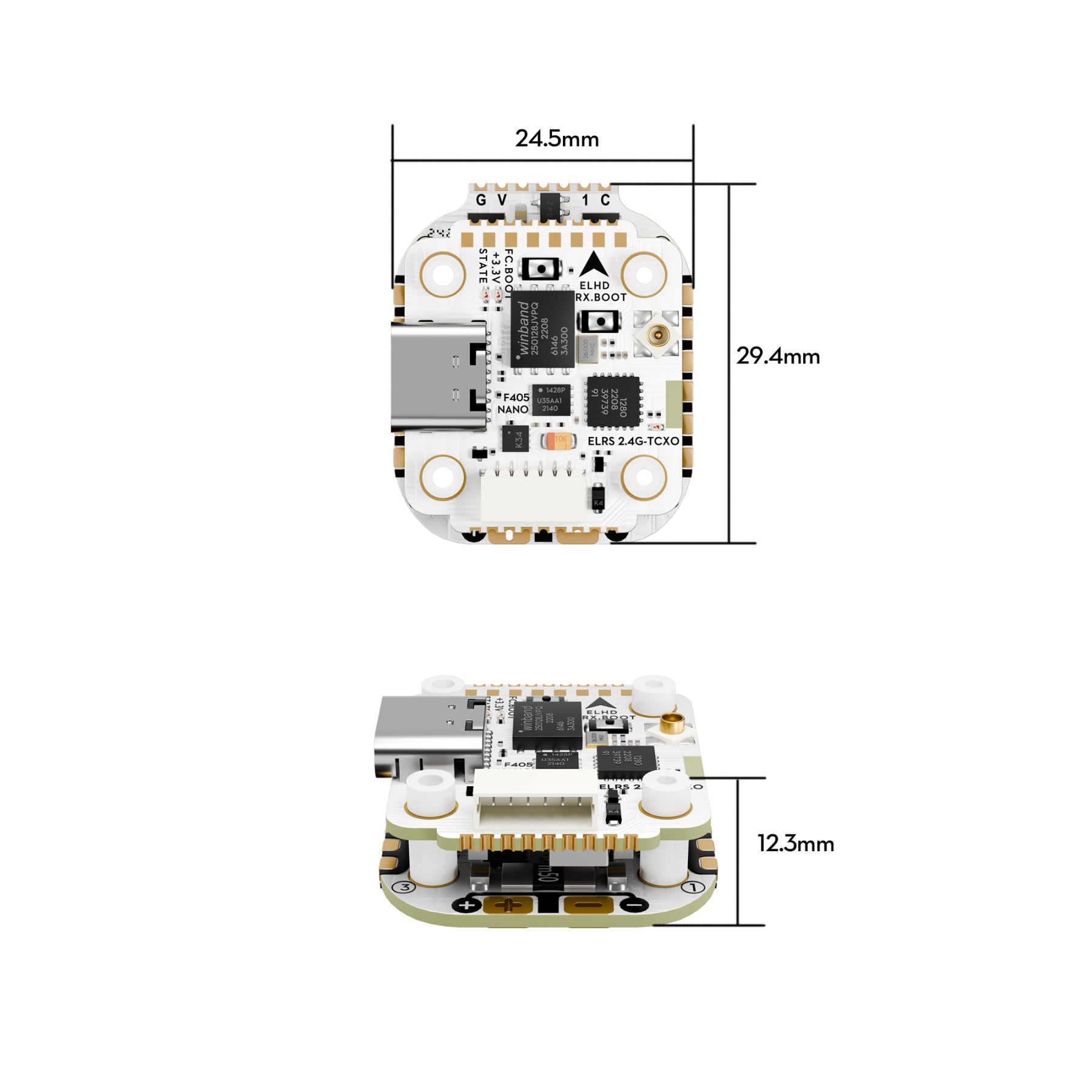

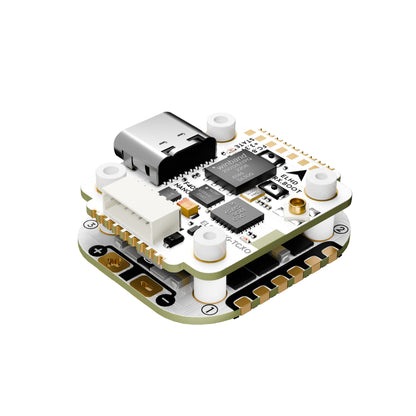

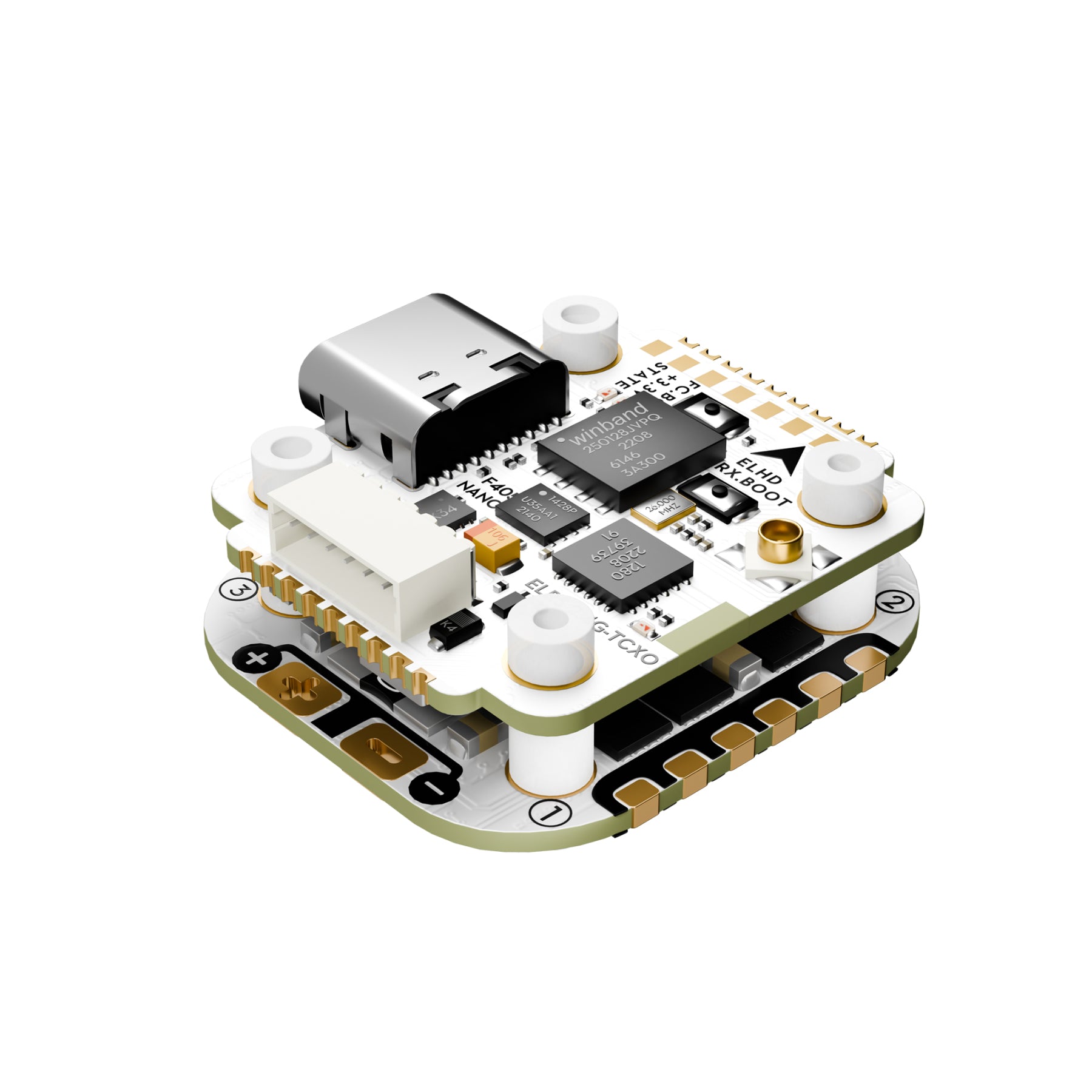

Stack Flywoo GOKU GN405 Nano HD 35A Stack V3 with ELRS The Flywoo GOKU GN405 Nano HD 35A Stack V3 is a high-performance, ultra-compact solution designed for powerful micro FPV drones. It integrates a feature-packed STM32F405-based flight controller with a 2.4GHz ELRS receiver and a rugged 35A 4-in-1 ESC that offers exceptional control and responsiveness. Equipped with an advanced ICM-42688P gyroscope, built-in black box and 6 full UARTs, this stack is ideal for 2-6S LiPo builds that require high current and stable flight. With convenient plug-and-play, durable components and a compact 16x16 mm format, it is the ideal choice for demanding pilots looking for reliability and performance in a small package. Flight controller: MCU: STM32F405 BGA Gyroscope: ICM-42688P (SPI) Barometer: DP310 OSD: No Black box: 16 MB USB: Type C UART: 1 / 2 / 3 / 4 / 5 / 6 BEC: 5V 2A / 3.3V 0.5A Input Voltage: 7.4V-24V (2-6S LiPo) Dimensions: 25 x 23 x 8 mm Mounting: M2 16 x 16 mm Weight: ~3 g ESC: ESC MCU: BB21F16G Continuous current: 35 A Input voltage: 2-4S LiPo Supported protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600 LED power indicator: No Dimensions: 27 x 33 mm Mounting: M3 16x16 mm Weight: ~3.6g The package contains: 1 × Stack Flywoo GOKU GN405 Nano HD 35A Stack V3 with ELRS
