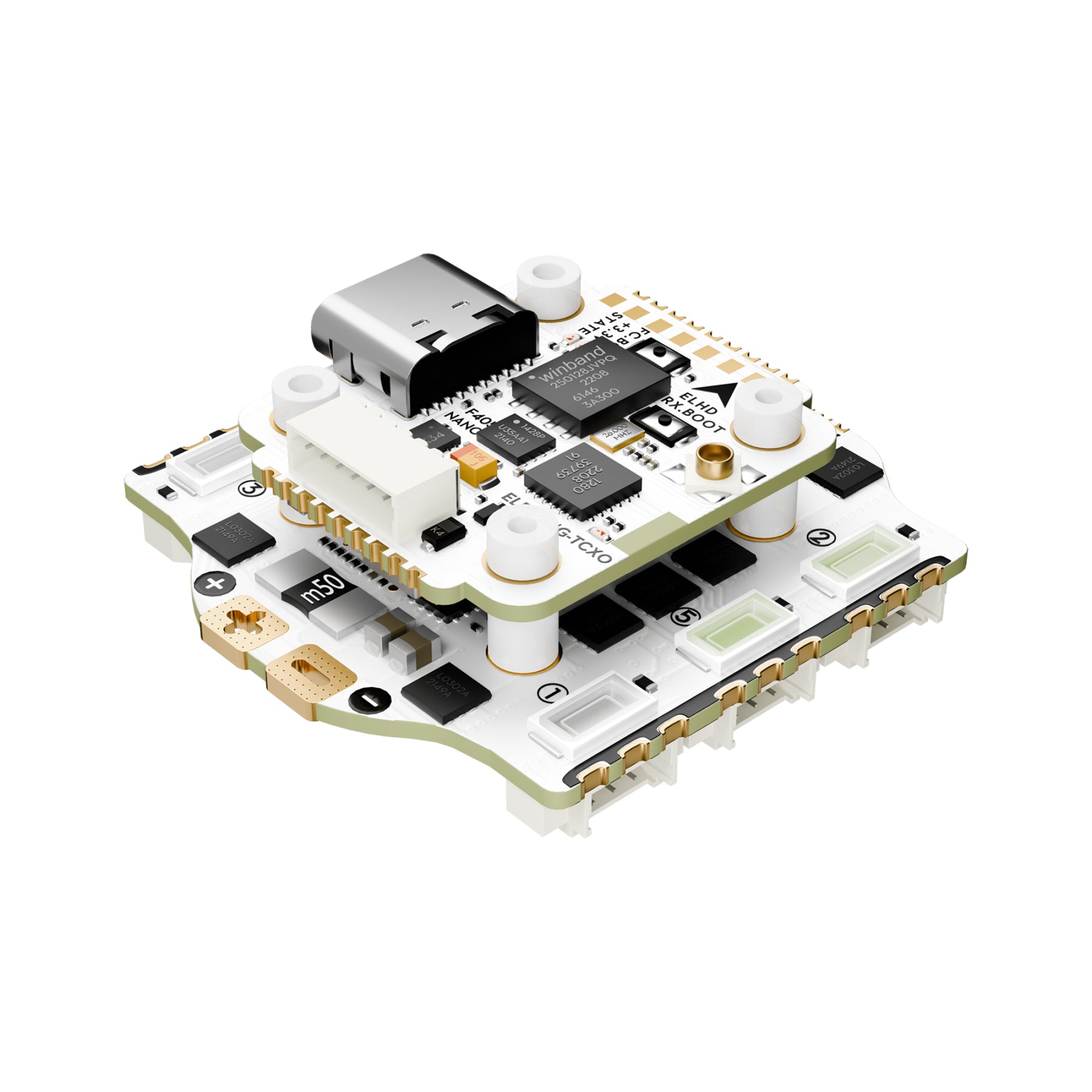

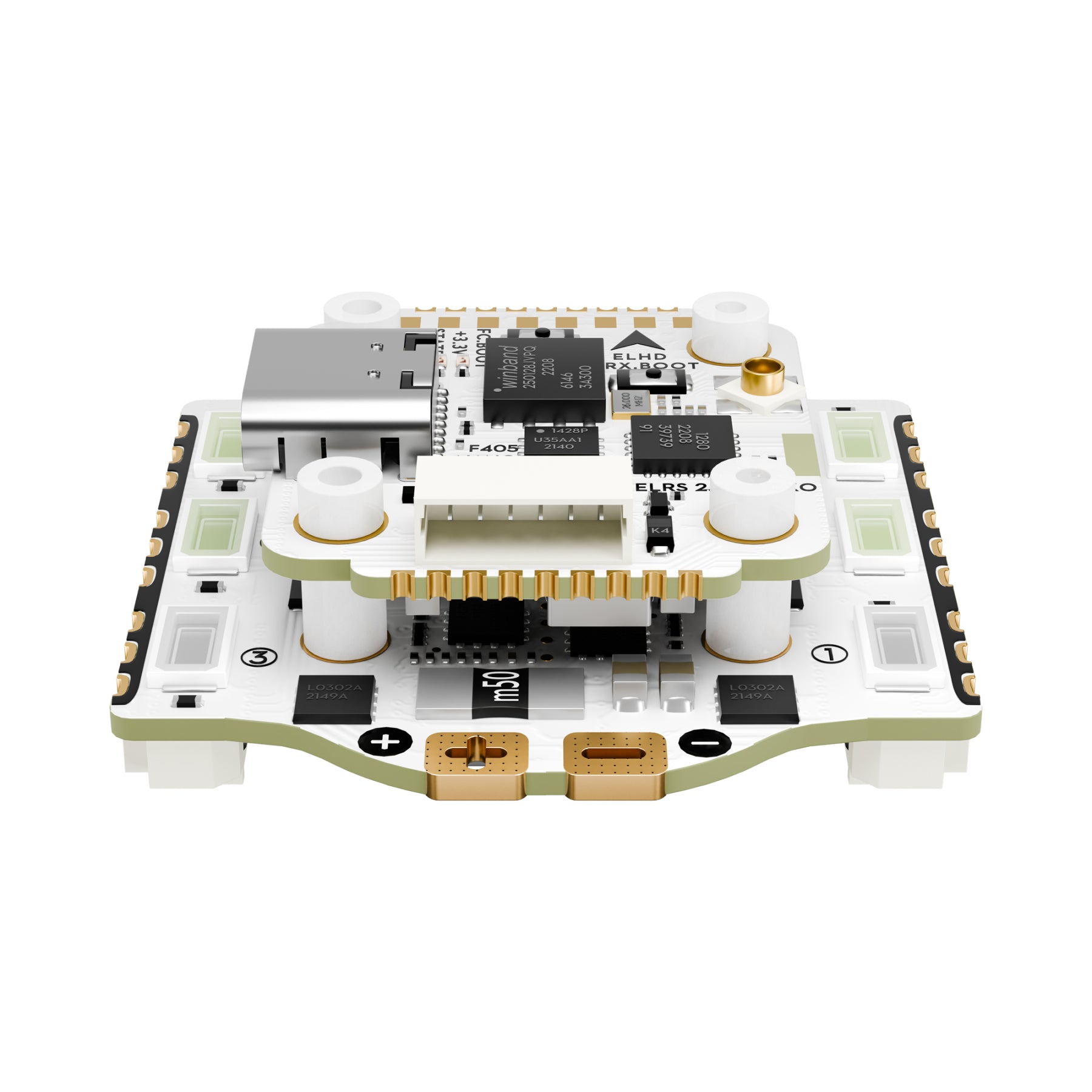

Stack Flywoo GOKU HEX GN405 HD 20A Stack V3 ELRS Flywoo GOKU HEX GN405 HD 20A Stack V3 is a compact and highly efficient solution for building micro hexacopters. This stack combines a robust STM32F405-based flight controller with a built-in ELRS receiver and a 6-in-1 20A ESC, enabling smooth performance for advanced 2-4S setups. With ICM-42688P precision gyroscope, 16MB black box and up to 6 UARTs, it supports demanding FPV configurations with reliable stability. Its plug-and-play architecture and 16 x 16 mm mounting format make it ideal for compact designs requiring multiple motor outputs without compromising performance, control or response. Flight controller: MCU: STM32F405 BGA Gyroscope: ICM-42688P (SPI) OSD: No Barometer: DP310 Black box: 16 MB USB: Type C UART: 1 / 2 / 3 / 4 / 5 / 6 Input Voltage: 7.4V-24V (2-6S LiPo) BEC output: 5V 2A / 3.3V 0.5A Dimensions: 25 x 23 x 8 mm Mounting holes: M2 16 × 16 mm Weight: 3 g ESC: ESC MCU: BB21F16G Continuous current: 20 A Input voltage: 2-4S LiPo Supported protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150/300/600 LED power indicator: No Dimensions: 33 x 35 mm Mounting holes: M3 16x16 mm Weight: 6.4 g The package contains: 1 × Stack Flywoo GOKU HEX GN405 HD 20A Stack V3 ELRS
