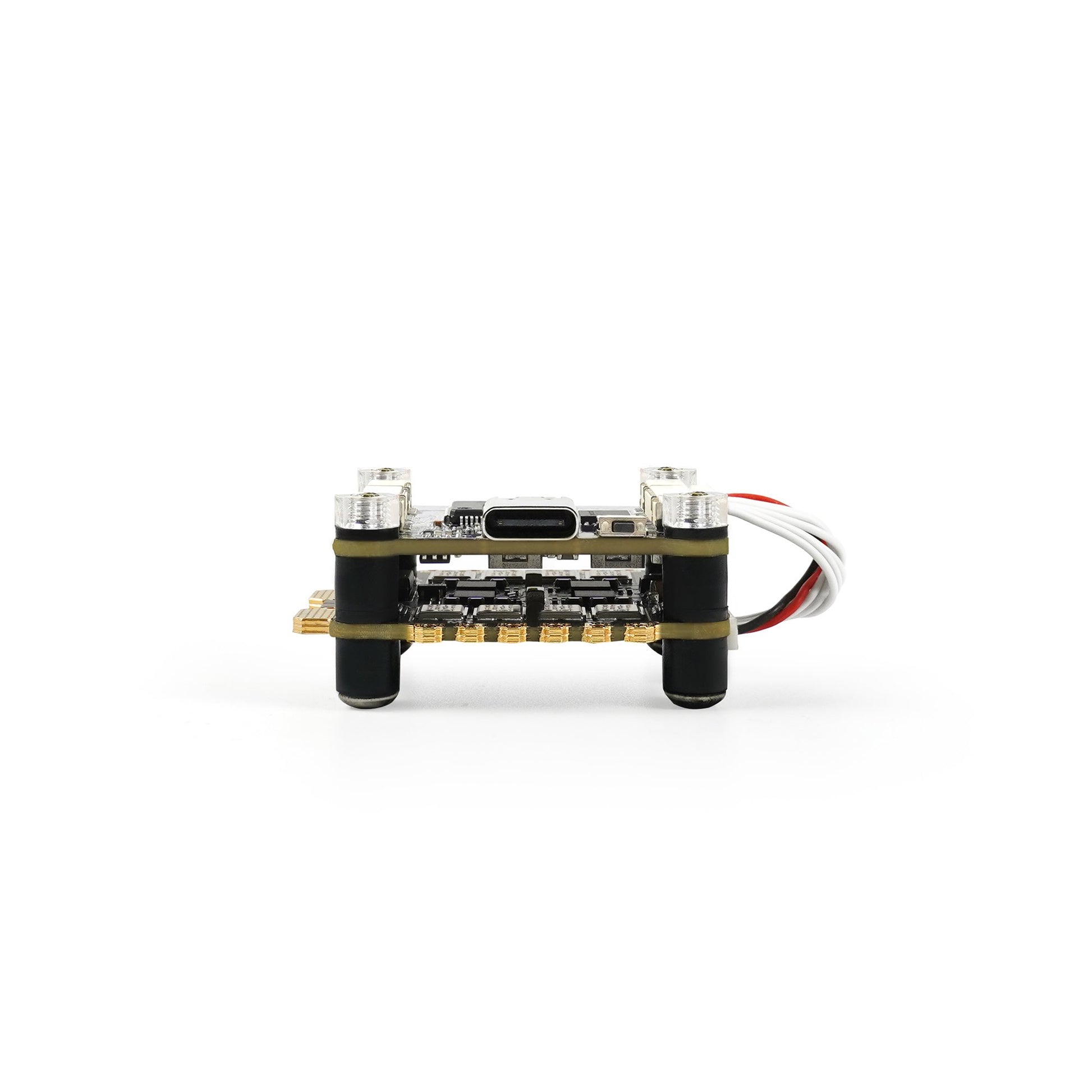

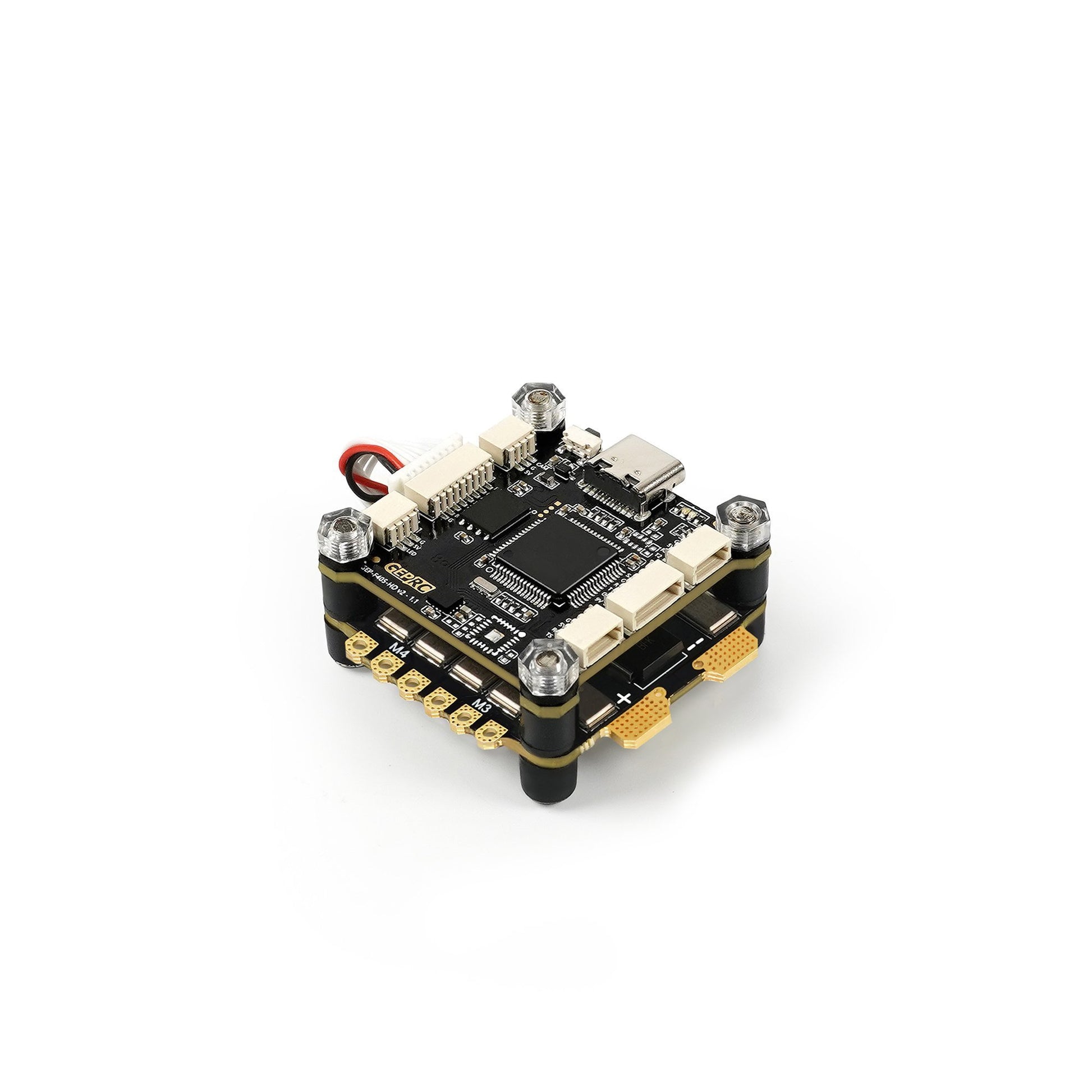

Stack GEPRC TAKER F405 BL32 70A

The GEPRC TAKER F405 BL32 70A STACK is a plug-and-play flying tower system specifically designed for the DJI Air Unit. It uses STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box and TAKER H70_96K 4IN1 ESC collocation, the flight dynamics is strong and has a more delicate hand feeling.

The GEPRC TAKER F405 BL32 70A STACK can be directly plugged into the DJI air unit, which can save the trouble of welding. Upgrade the USB Type-C interface, which significantly extends the life of the socket and reduces the risk of poor contact. 9V@2.5A + 5V@3A dual independent BEC, more stable power supply for external devices.

Function:
- Use mainstream STM32F405 chip
- Equipped with the latest gyroscope 42688-P
- 16M storage in a black box
- Integrated LC filter
- USB Type C interface upgrade
- Directly plugged into the DJI air unit
- With TAKER H70_96K ESC, 70A continuous current, strong performance and the flight feeling is silky
- Simple and reasonable installation method, the damper can make the gyroscope work very stable
- 9V@2.5A + 5V@3A dual independent BEC

Specifications:

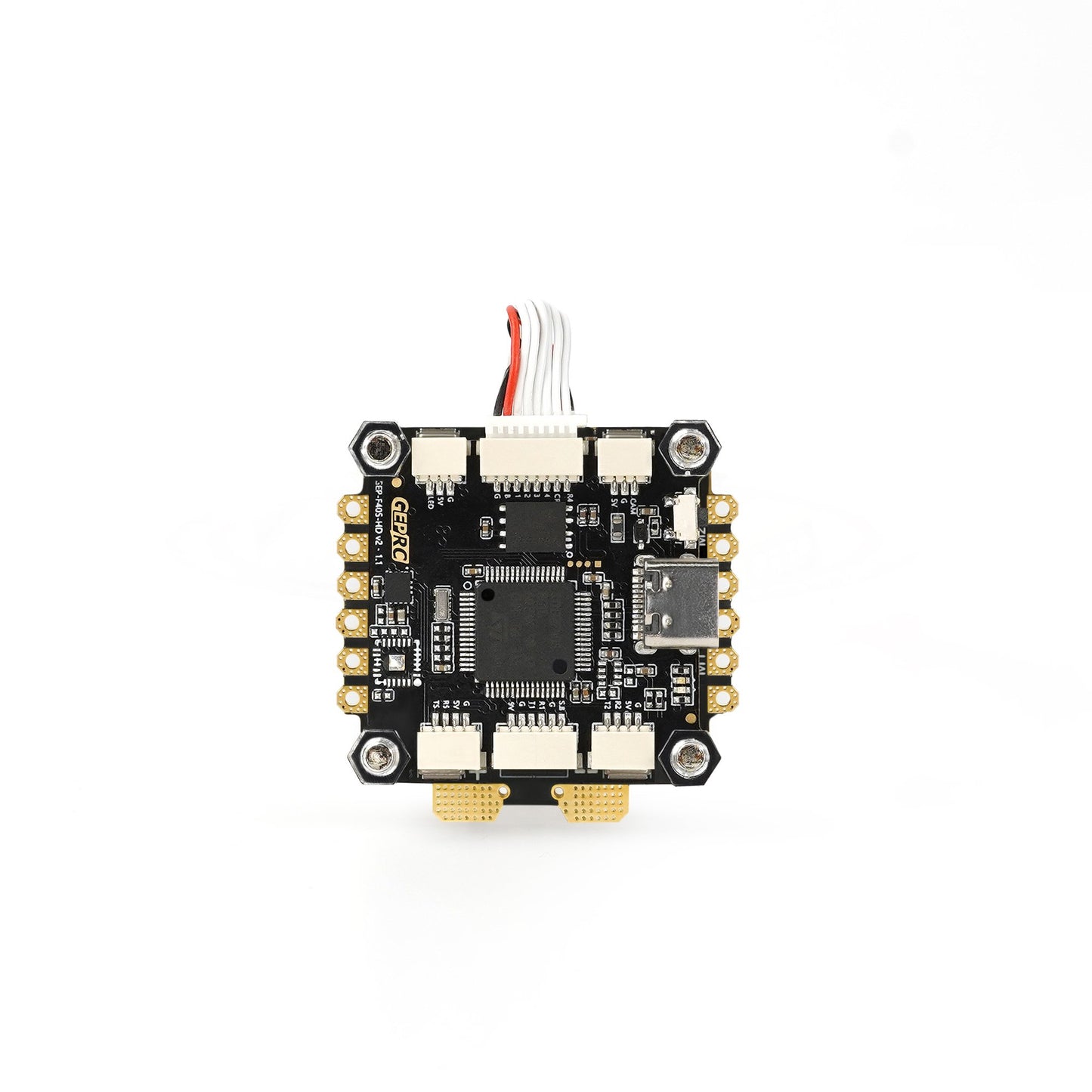

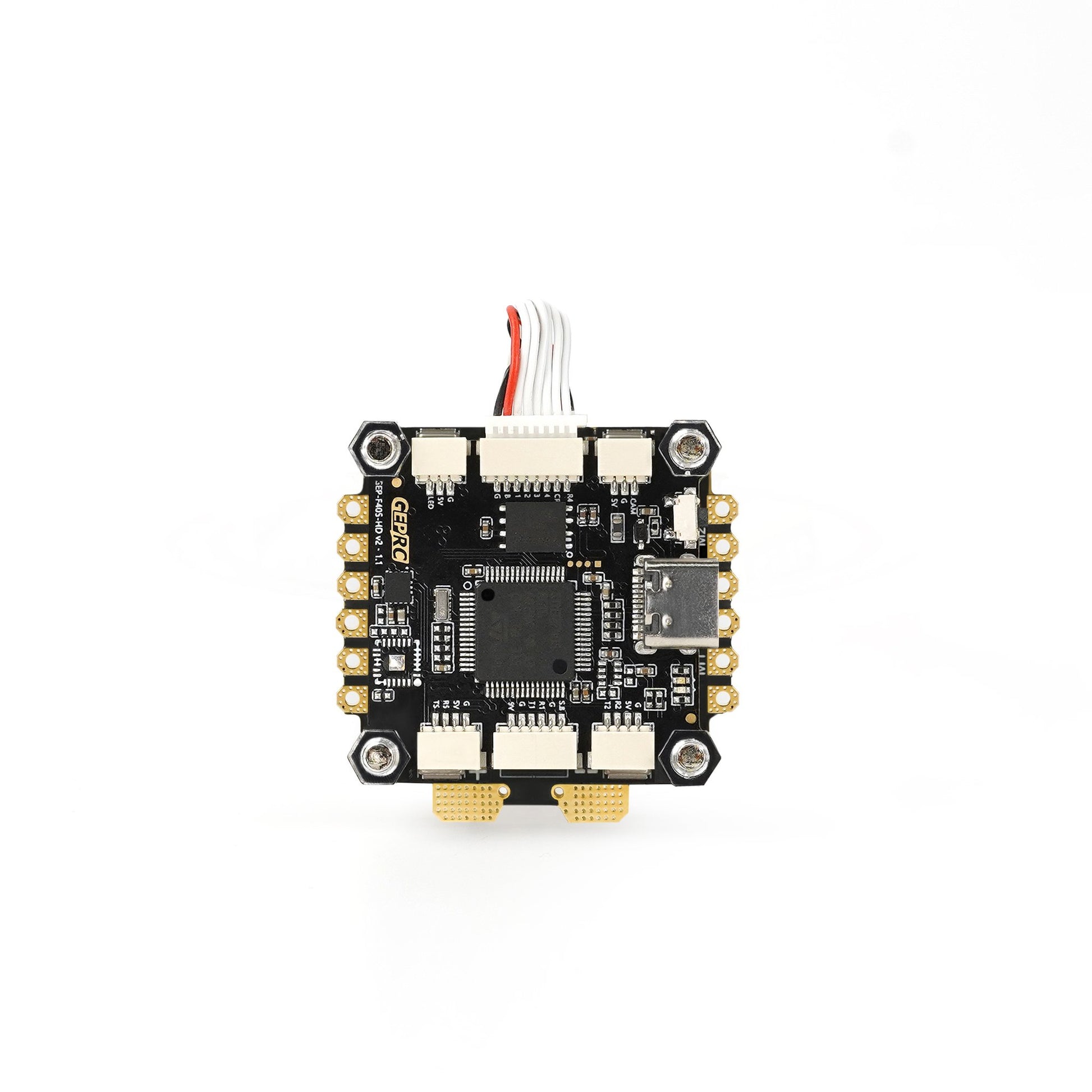

GEP-F405-HD v2 Flight Controller
MCU: STM32F405
IMU: ICM42688-P(SPI)
Air Unit Connection: Direct connection to DJI air unit
Black box: 16M on board
USB interface: Type-C
OSD: BetaFlight OSD with AT7456E chip
BEC: 5V@3A, 9V@2.5A dual BEC
Firmware Target: GEPRCF405
Size: 36.8×36.8mm, hole 30.5×30.5mm, hole φ4mm will change to φ3mm after using the shock-absorbing silicone ring.
Input voltage: 3-6S LiPo
UART: 6
Power filter: Integrated LC filter
Weight: 7.7g

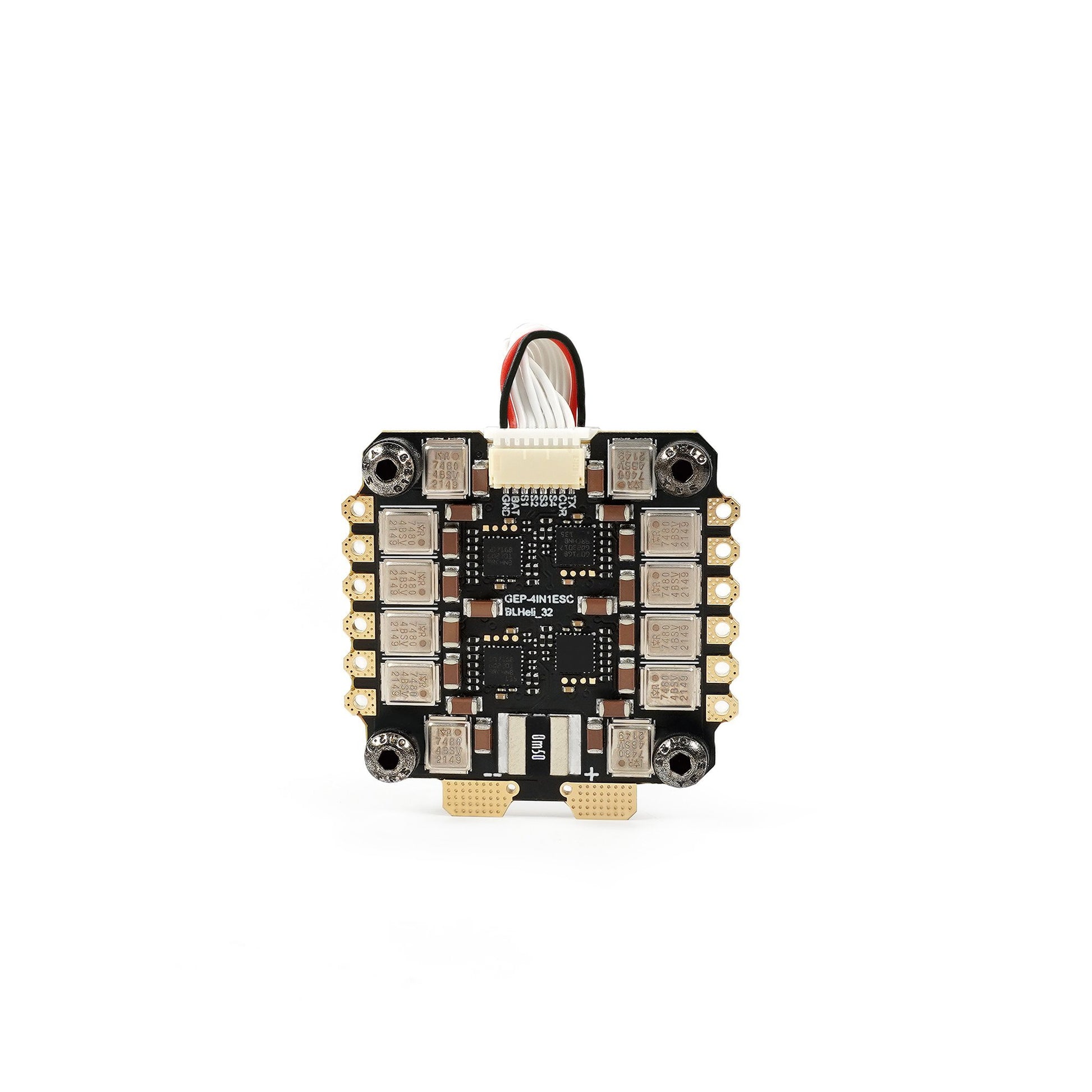

GEPRC TAKER H70_96K ESC
Input Voltage: 3-6S Lipo
Galvanometer: Support
PWM frequency: 24-96K
Continuous current: 70A
Burst current: 80A (5 seconds)
Support protocol: Dshot 150/300/600
Size: 42.6 * 42.1mm, hole 30.5 × 30.5mm, hole φ4mm will change to φ3mm after using the shock-absorbing silicone ring.
Weight: 12.8g
Target: GEPRC_G071_4IN1_96K

The package includes:
1 x flight controller
1 x ESC
1x capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x nylon nuts
8x silicone grommets
2 x sh1.0 4pin silicone cable
1 x cable for connecting the camera
