Stack iFlight BLITZ E80 Single CNC*4+BLITZ F7 Pro V1.1 (X4)

Name: Stack iFlight BLITZ E80 Single CNC*4+BLITZ F7 Pro V1.1 (X4)
Brand: Baltic Drones
SKU: F013180
Price: 426.97 EUR
Availability: OutOfStock

Stack iFlight BLITZ E80 Single CNC*4+BLITZ F7 Pro V1.1 (X4)

Brand: iFlight

€426,97

~~€426,97~~ €426,97

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

BLITZ E80 Single CNC*4+BLITZ F7 Pro V1.1 (X4)

Function

- Improved circuit design, better components and lower electrical noise!
- DJI HD VTX connector (Plug-and-Play / no soldering required)
- FC indicator LED for visual tuning
- The BLITZ E80 BLHeli Dshot600 Single ESC has been designed to give your motors smooth performance with great stability and durability. 32-bit 48mHz G071 MCU and 11 pieces of TDK MLCC total 240UF Low ESR capacitors bring faster response and smoother flying experience.

FC specification

Product name: BLITZ F7 Pro Flight Controller
Mounting pattern: 35 * 35mm / 4mm PCB hole diameter
Smartaudio / IRC Tramp VTX protocol supported
Target firmware: IFLIGHT_BLITZ_F7_PRO
Input voltage: 14.8V-34V (4S-8S LIPO)
Motor outputs: 4x (SH1.25 connector)
Flash: 512 MB (Blackbox flash)
I2C serial: SDA / SLA pads
Dimensions: 41*41.5mm
Barometer: DPS310
OSD chip: AT7456E
LED driver: Yes
MCU: STM32 F722
Weight: 17g (±2)
Buzzer: Yes
Gyroscope: BMI270
UARTS: 4

ESC specification

Product name: BLITZ E80 Single ESC
Input voltage: 2-8S
Max. Continuous current: 80A
Max. Explosive current: 100A
MCU: G071
BEC: No
Firmware: BLHeli32
Current sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G2
Dimensions: L40 x W17 x W10 mm
Weight: 14.5g (±2)

Protocol: DShot DShot150/300/600/MultiShot/OneShot PWM Drive

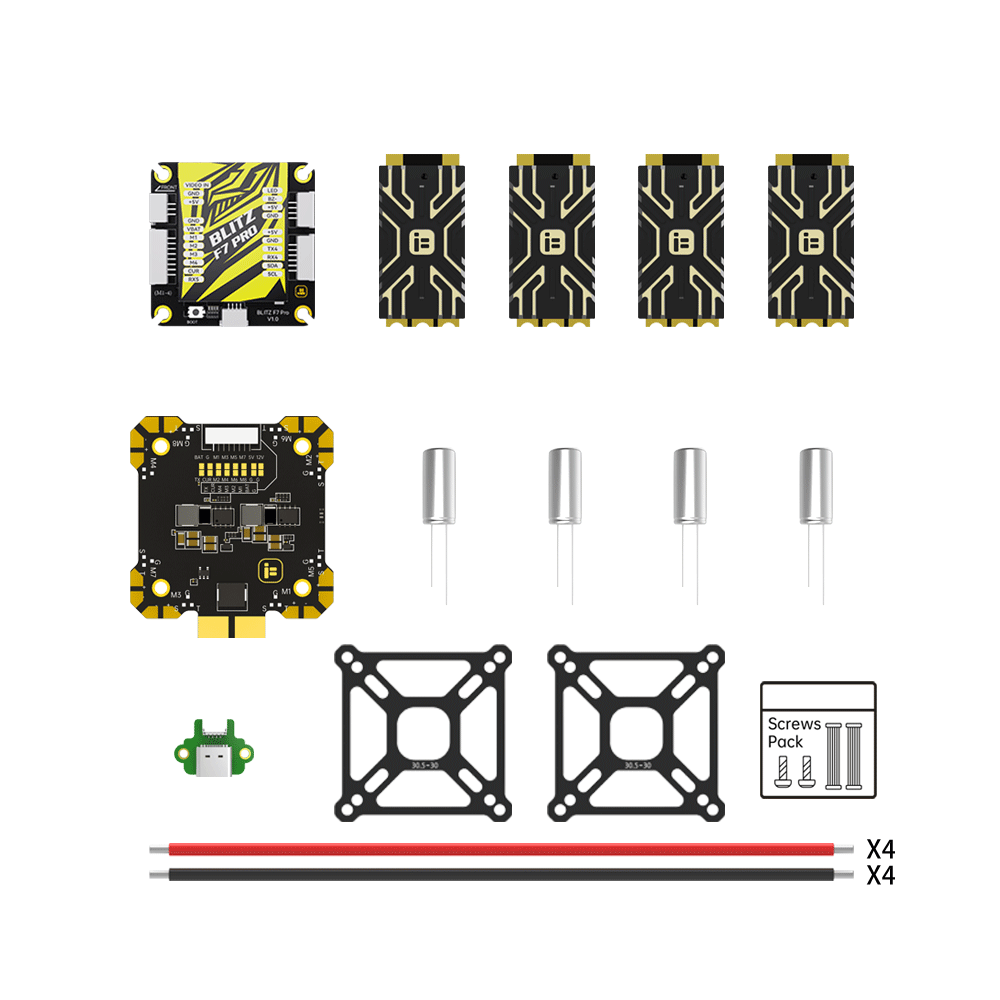

Packing list
1 x BLITZ F7 Pro Flight Controller
4 x BLITZ E80 Single ESC with CNC Alum Cover (Combo2)
4 x 50V 470UF capacitor (Combo2)
4 x ESC power cables and signal wires (Combo2)
1 x BLITZ For PDB
1 x pack of screws
1 x USB adapter board
