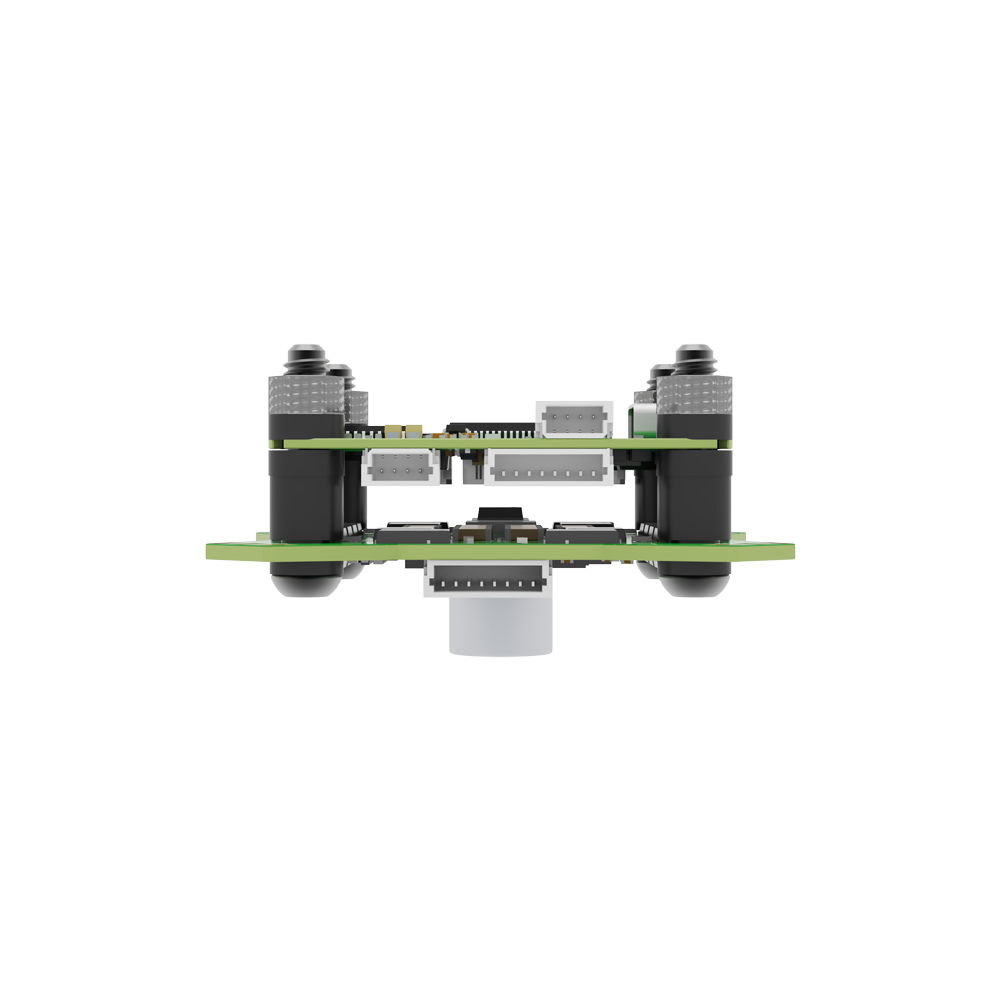

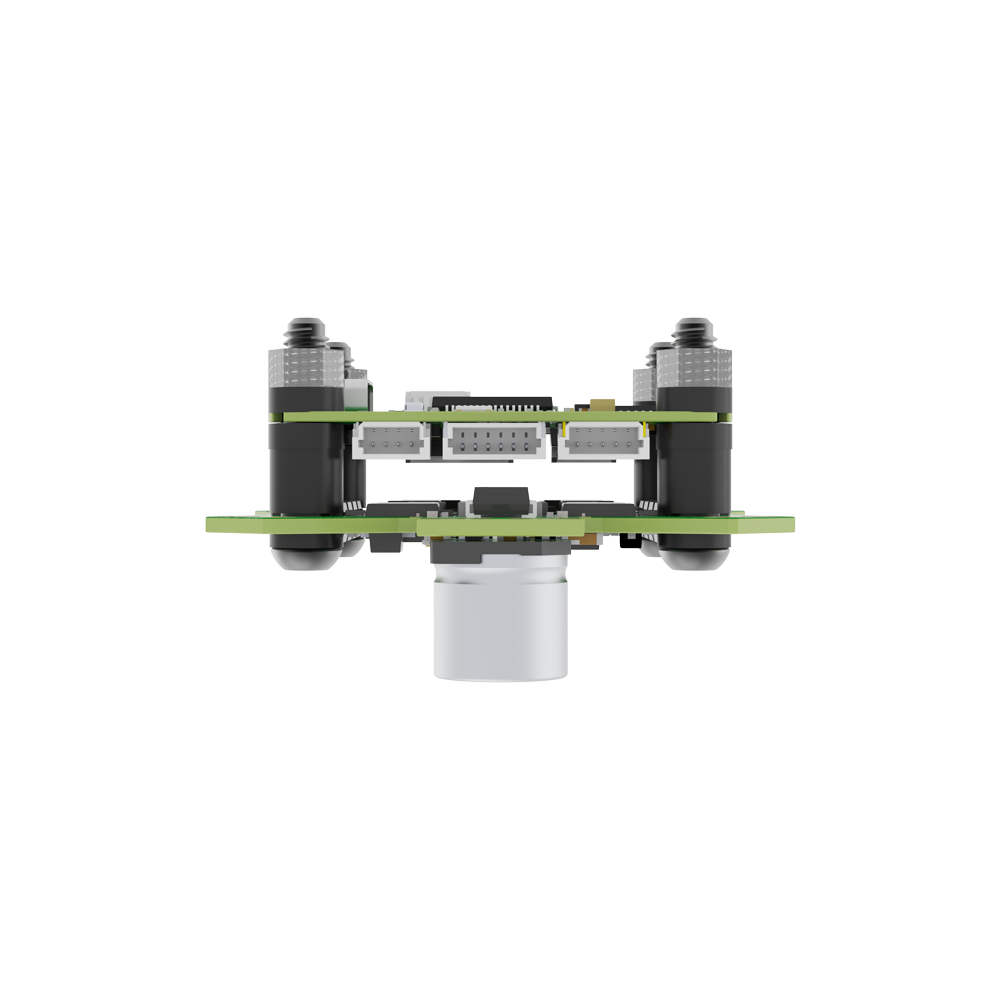

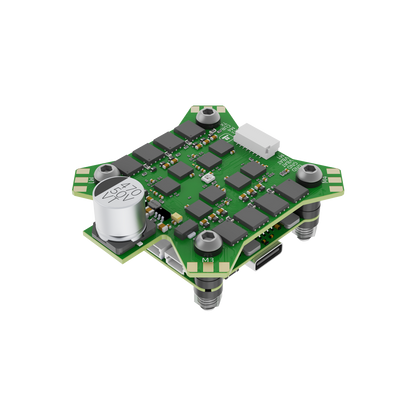

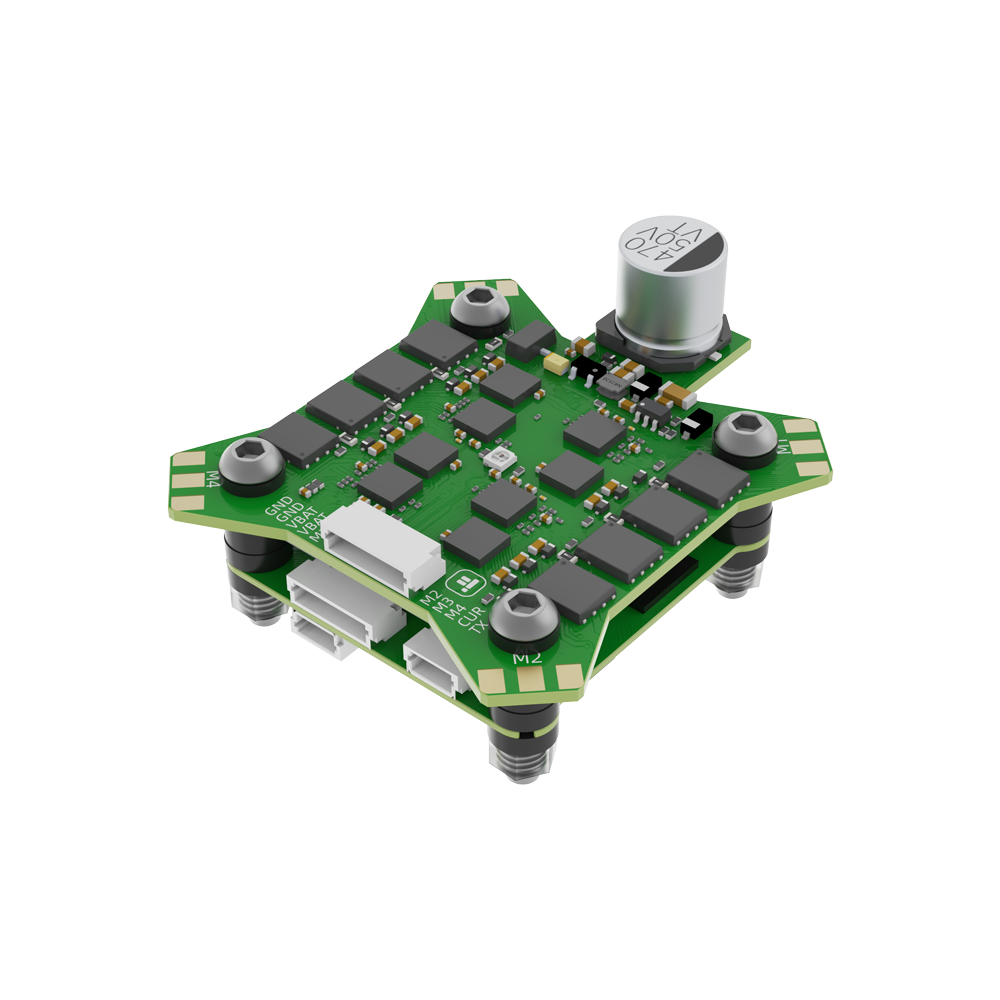

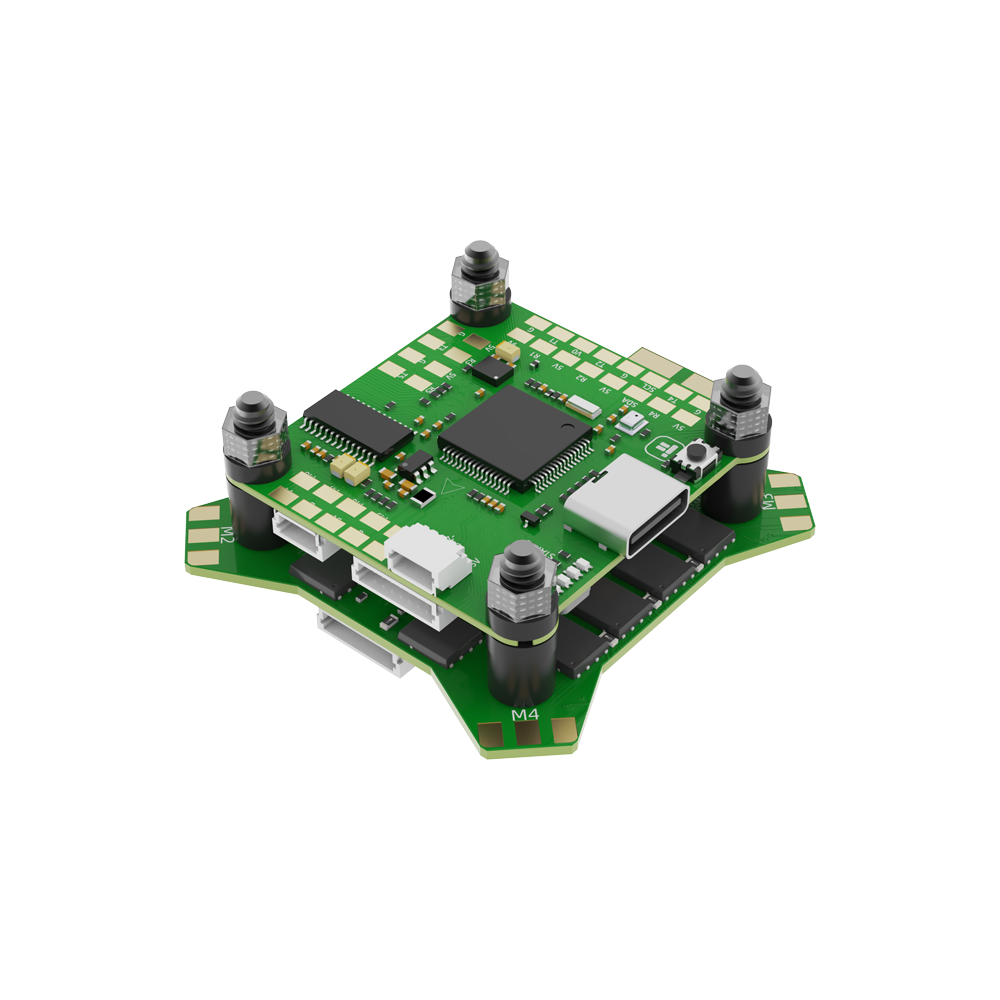

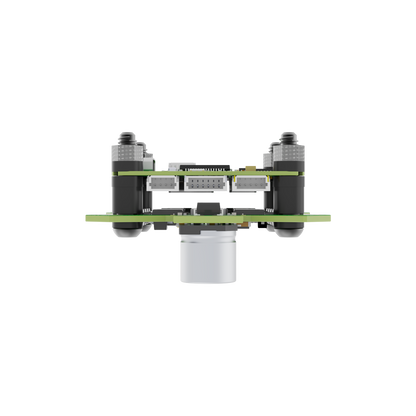

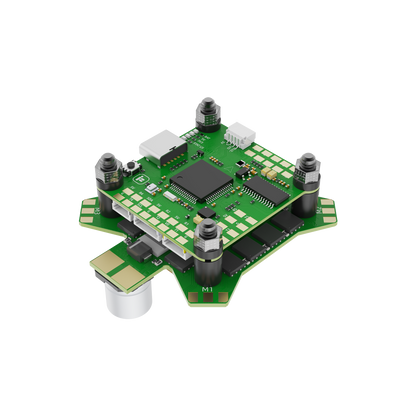

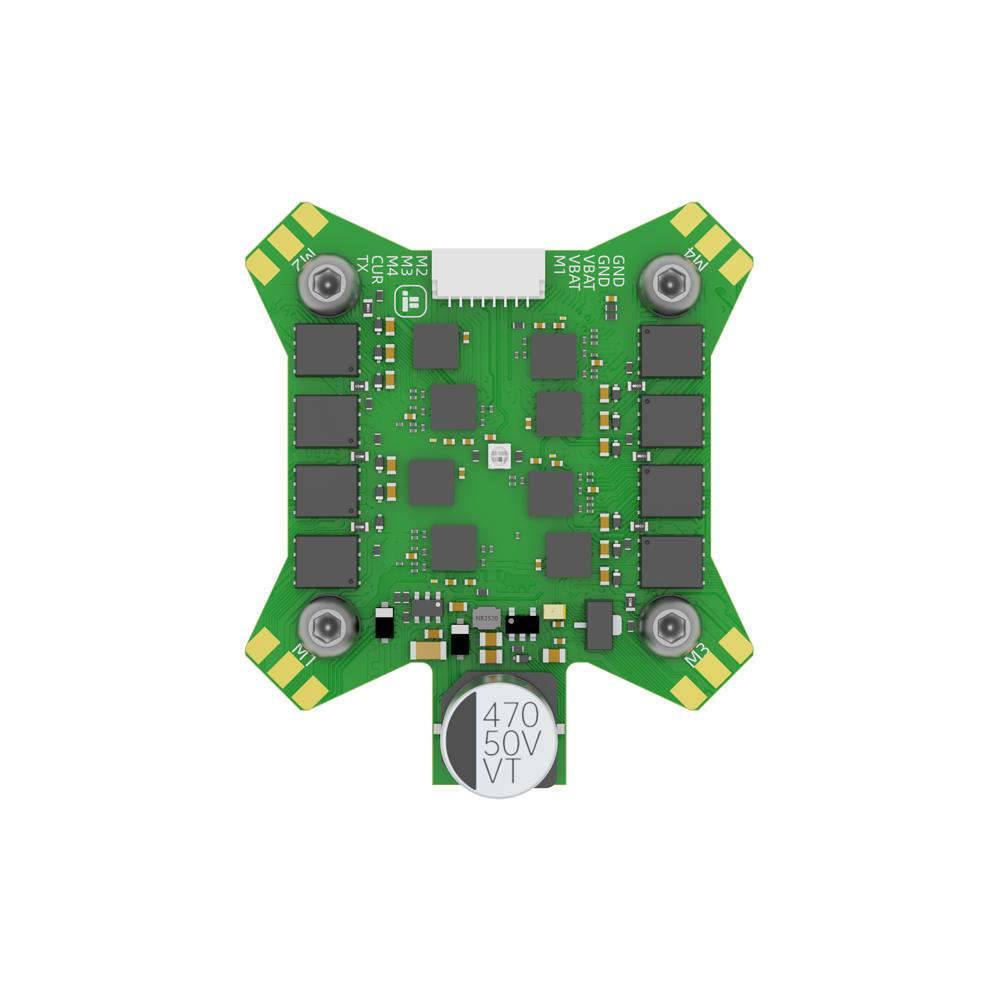

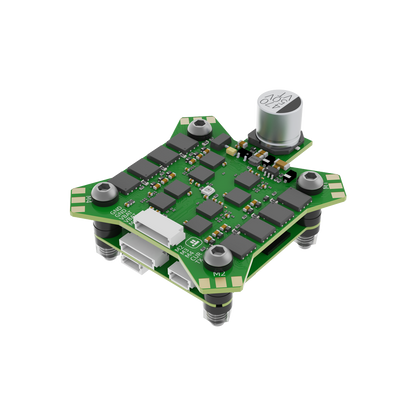

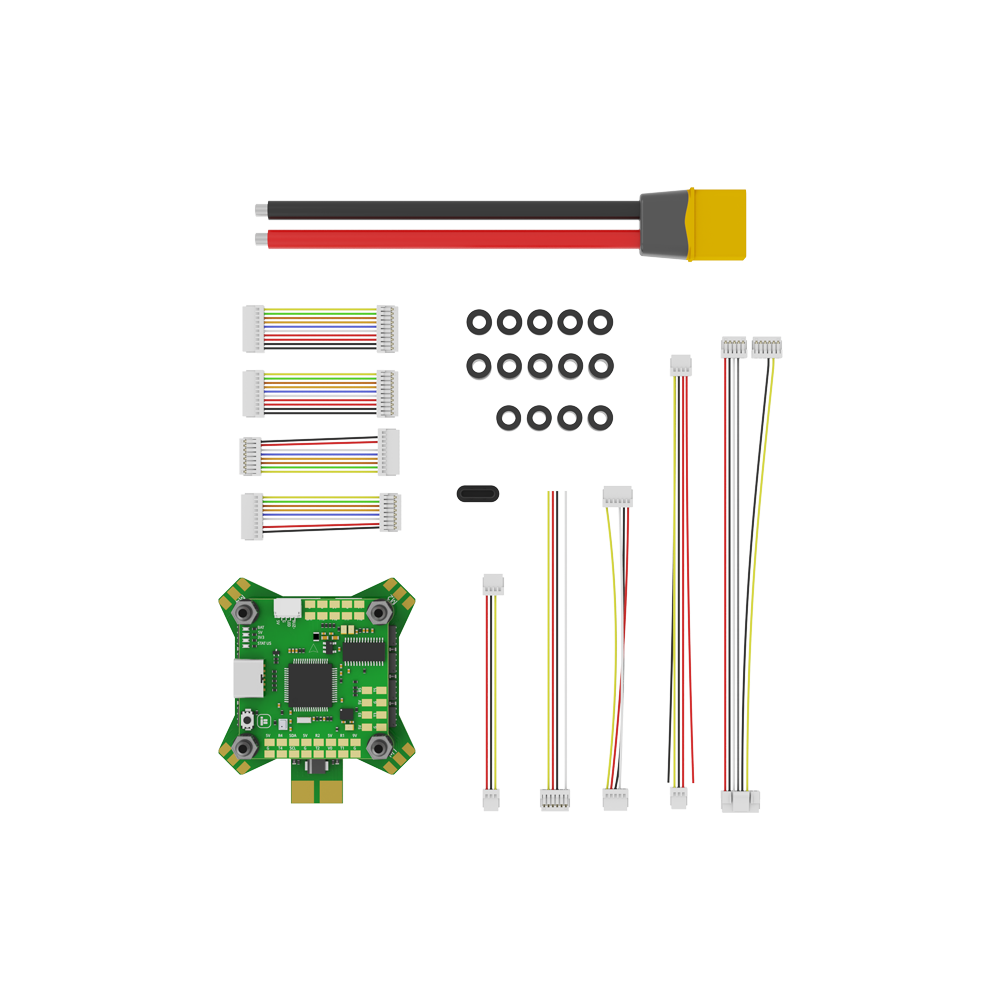

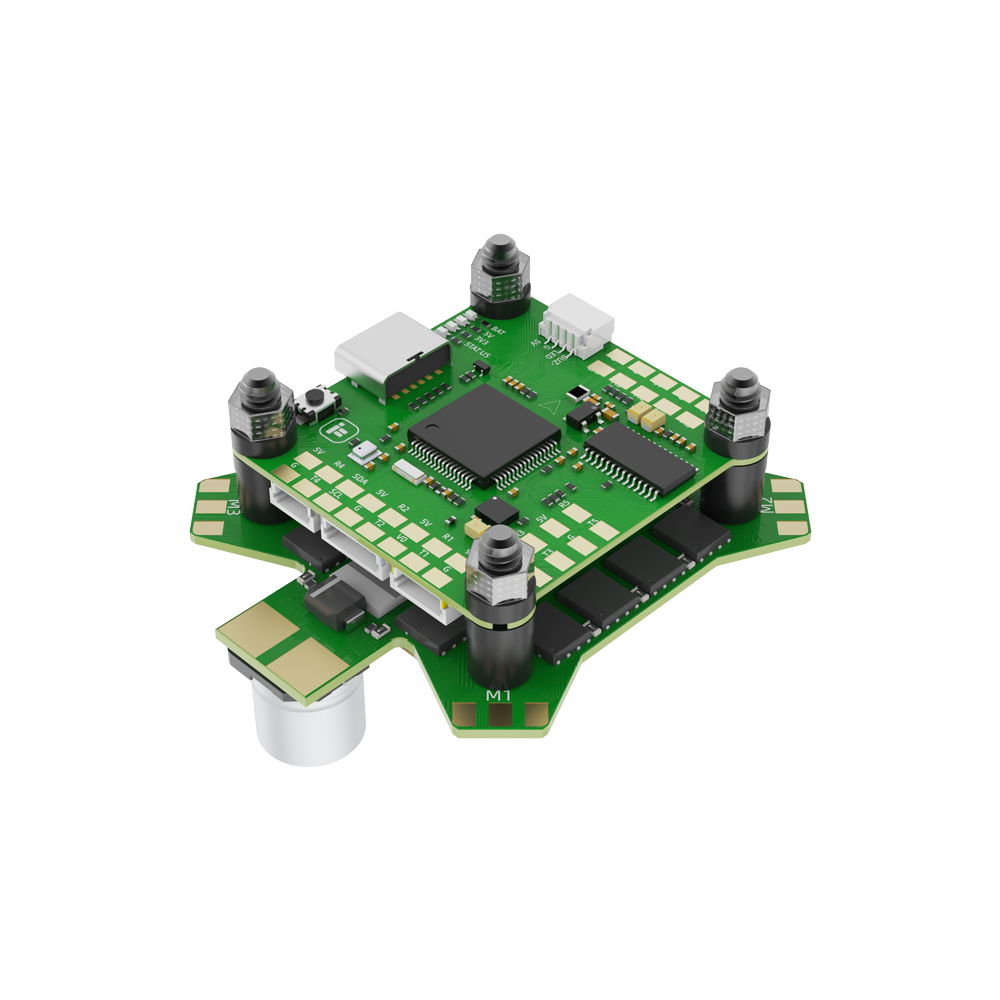

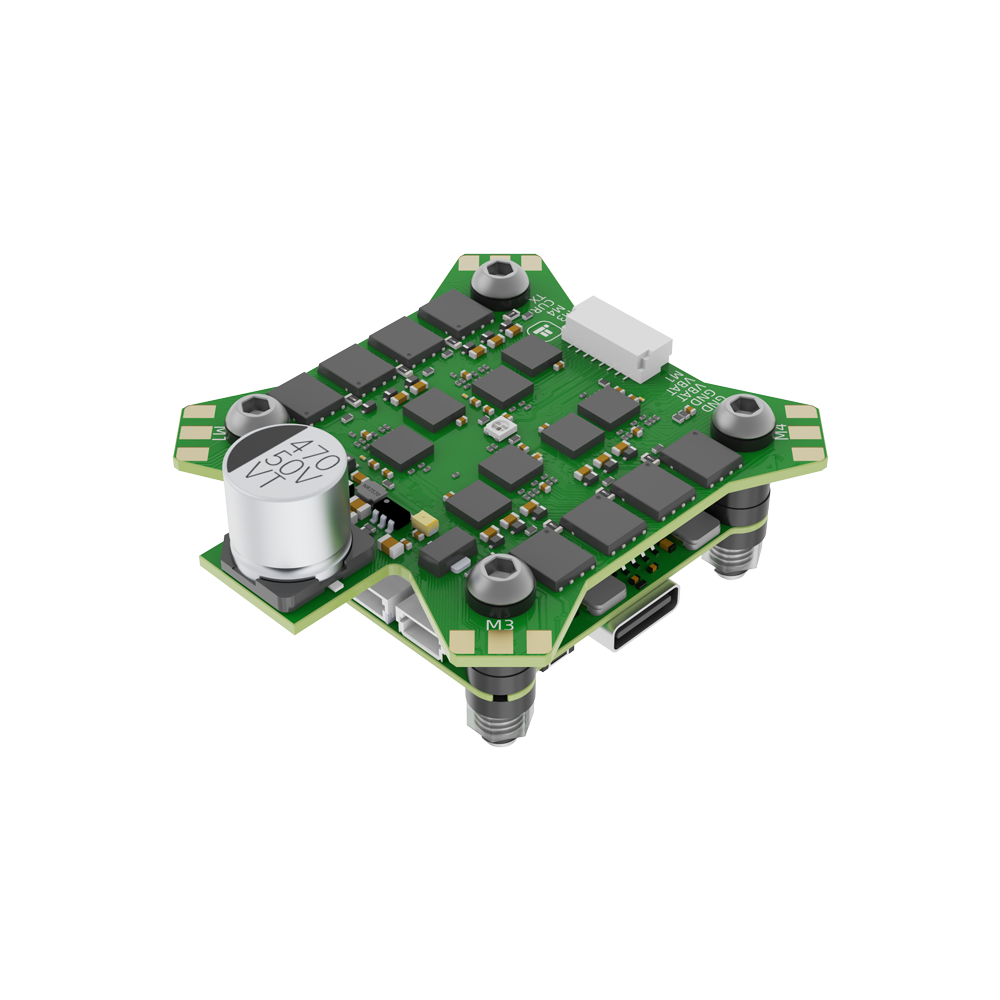

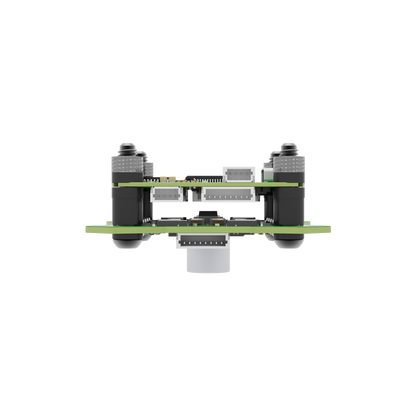

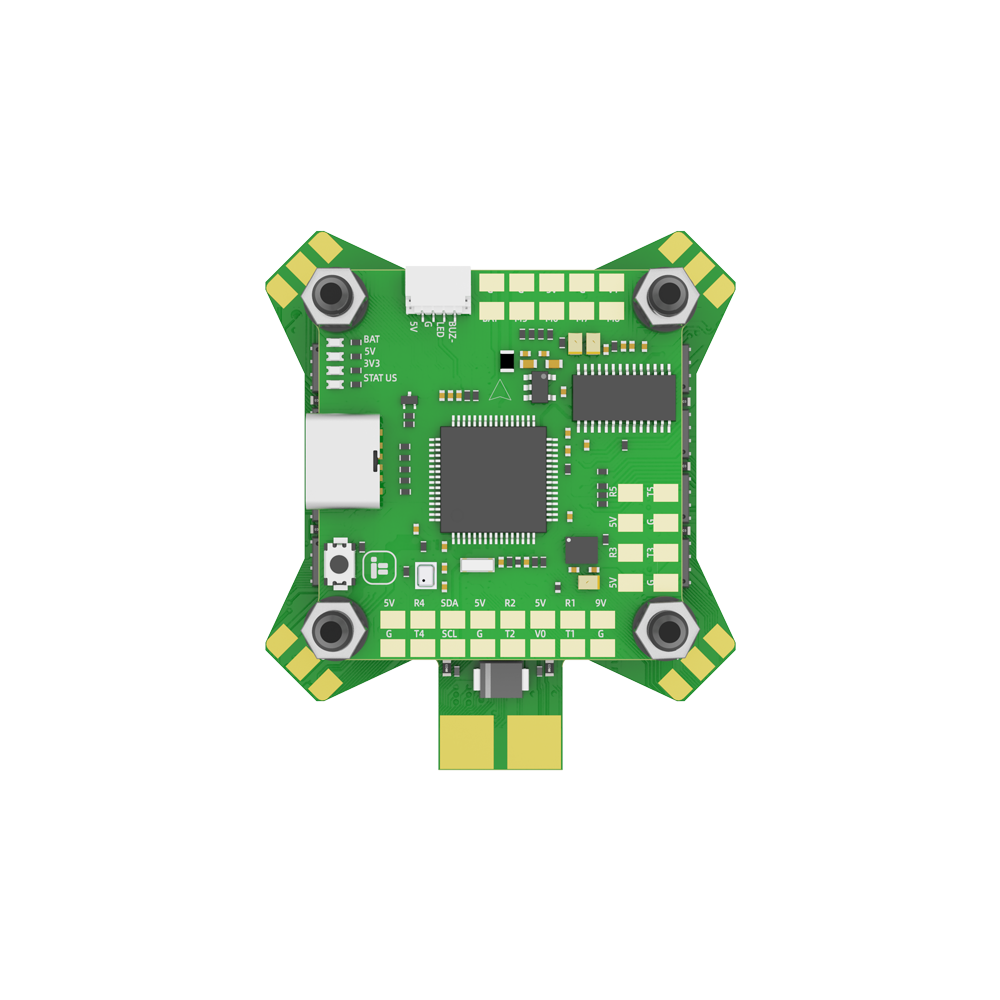

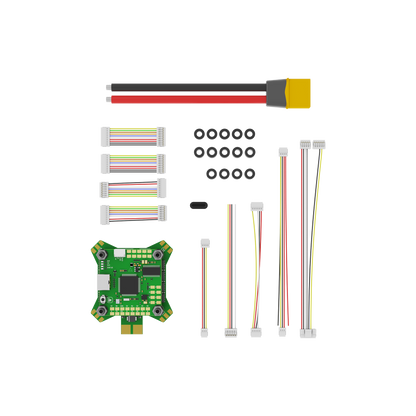

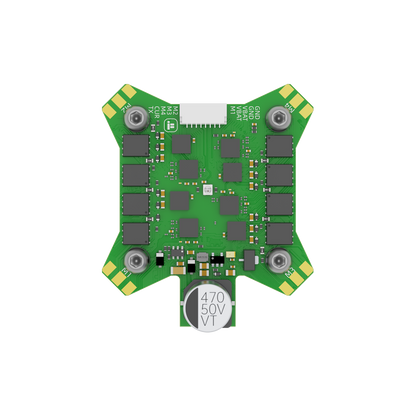

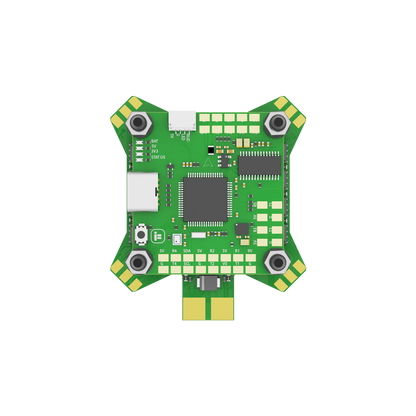

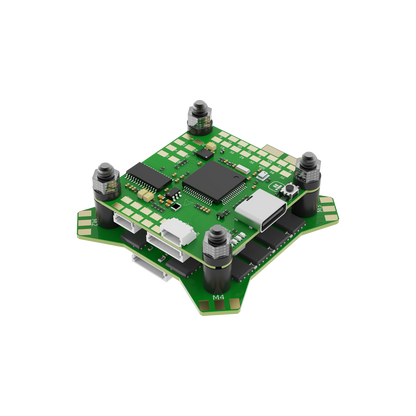

BLITZ F7 E55 4-V-1 Air Turret System Function -Improved circuit design, better components and lower electrical noise - DJI HD VTX connector (Plug-and-Play / no soldering required) - FC indicator LED for visual tuning - With LC filter FC specification MCU: STM32 F722 Gyroscope: ICM42688 Barometer: DPS310 OSD chip: AT7456E Flash: 32 MB (Blackbox flash) UARTS: 6 Motor outputs: 4x (SH1.0 connector) I2C serial: SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported LED driver: Yes Buzzer: Yes Target firmware: IFRC-IFLIGHT_BLITZ_F722 Mounting pattern: 30.5 * 30.5mm / 4mm PCB hole diameter Dimensions: 36.5*35 mm Weight: 7.8g BEC: 5V 2.5A / 9V 2A Wiring design: UART 1 for VTX HD / Analog UART 2 for receiver UART 3/4/5 for GPS or other sensors that require a serial port UART 6 for ESC telemetry ESC specification Mounting holes: 30.5*30.5mm/Φ4mm Weight: 15.3g Supports 2-6S lipo input MCU: G071 Constant: 55 Amps Discharge: 65 Amps Current sensor: Yes BEC: No Current rate: 200 Supports: DShot DShot150/300/600/MultiShot/ OneShot etc. Target: IFLIGHT_BLITZ_G3 32.9 The package includes: 1 x BLITZ F7 V1.2 Flight Controller 1 x BLITZ E55 4-IN-1 2-6S ESC 1x silicone grommets 1 x cable harness for F7 Flight controller
