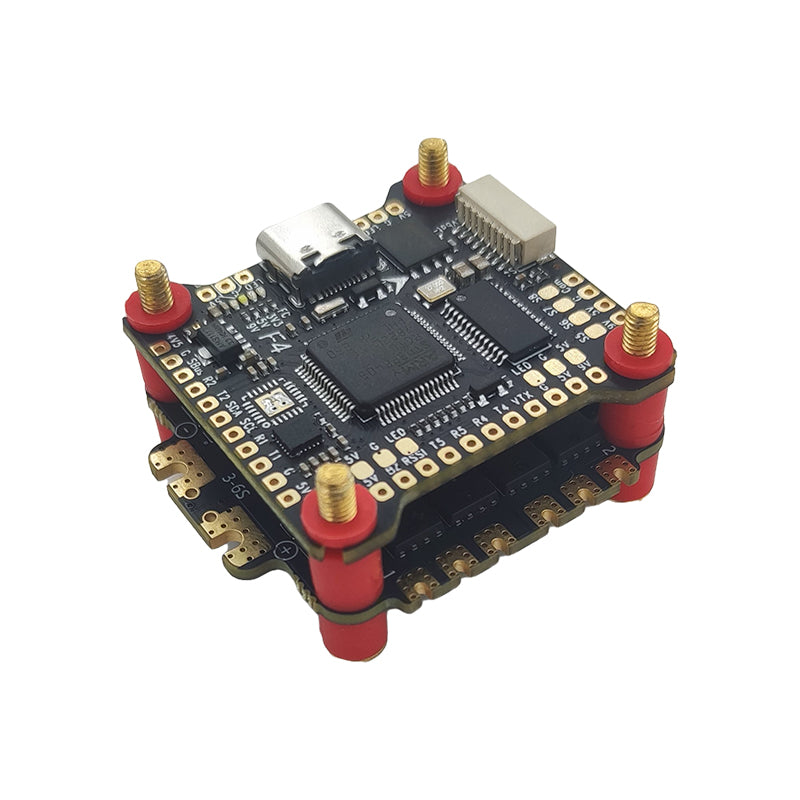

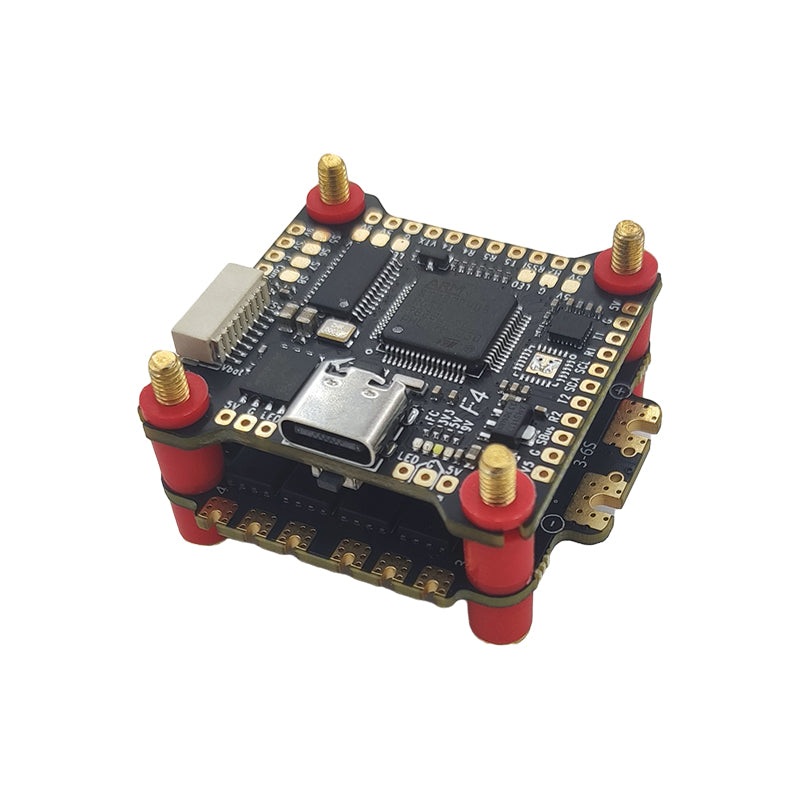

Stack Partizan F405 V2 60A

The Partizan F405 V2 60A Stack is an advanced flight controller and electronic speed controller (ESC) combination designed for high performance drone applications. The F405 processor offers fast and precise flight control for smooth and stable flight maneuvers. The 60A ESC provides enough power for a wide range of motors and propeller combinations, ensuring reliable and efficient performance.

Specifications

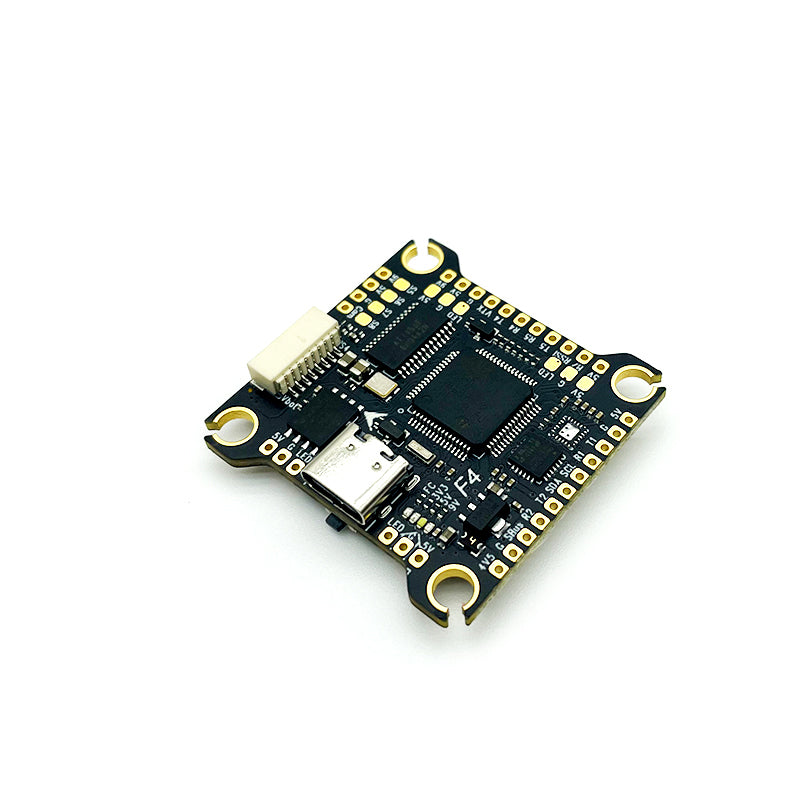

FC specification

CPU: STM32F405RGT6
Gyroscope: MPU 6500
Baro: BMP280/DPS310
OSD: Support
BEC Output: 5V/2.5A 9V/2A
BlackBox: 16MB
Uart: 5 channels
Light strip buzzer: support
Receiver protocol: ELRS/CRSF/S.BUS/Frsky/Futaba/flysky/TBS Crossfire/DSMX
USB connector: Type-C
DJl/Vista Digital Sky End: support

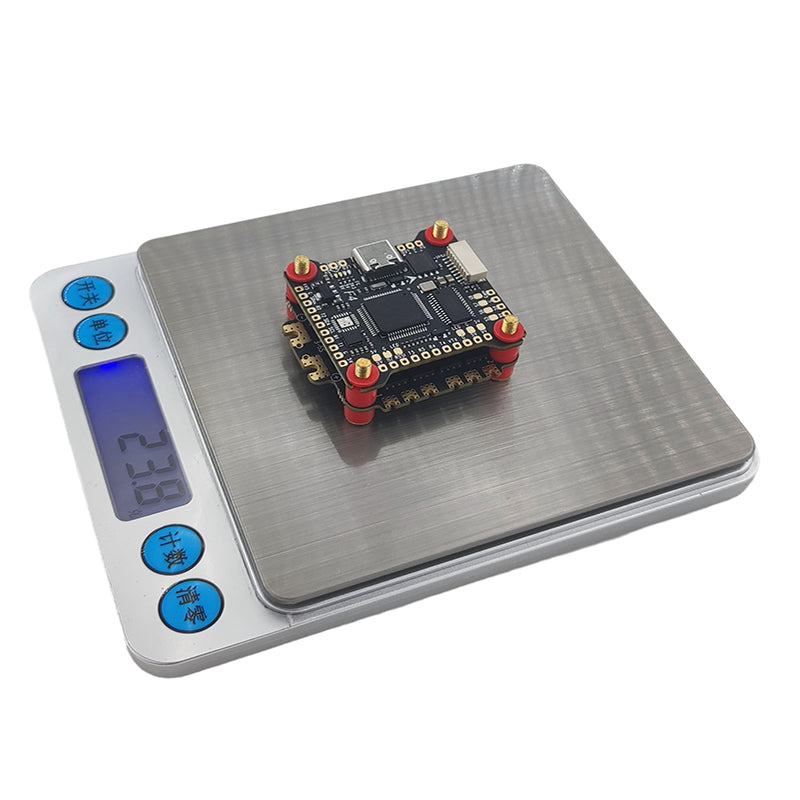

Weight: 8.2g
Mounting hole: 30.5 x 30.5 mm, M3
Size: 36X36 mm
FC firmware: AOCODARCF405V2MPU6500

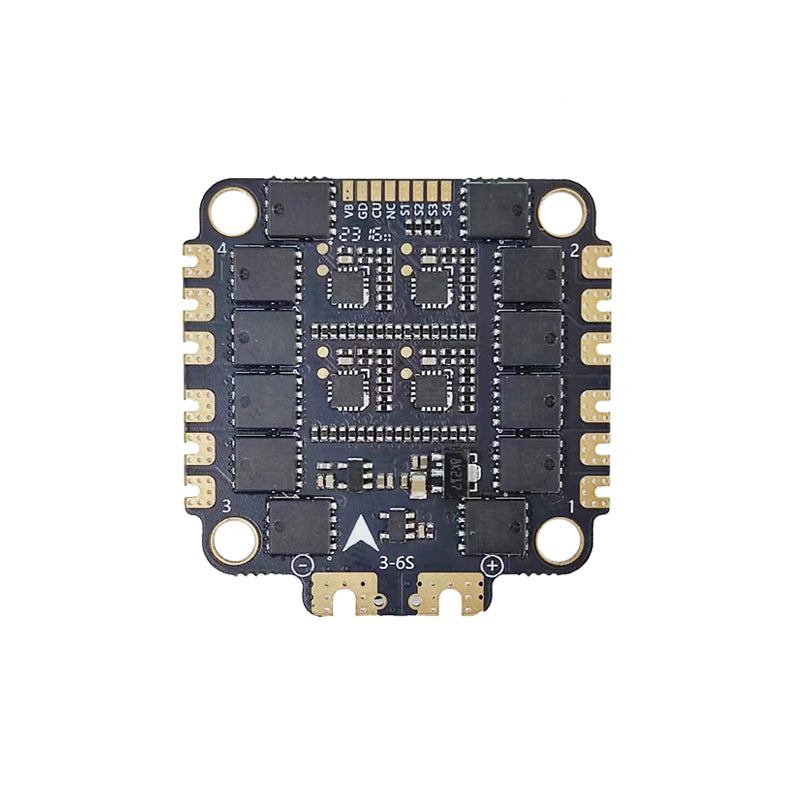

ESC specification

Continuous current: 60A X4
Explosive current: 70A X4
Power supply: 3-6S Lipo
Default Protocol: 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry: No output
Current sensor: support
ESC firmware: Bluejay H-H50
Weight: 10.4g
Size: 40 x 40.7 mm
Mounting hole: M3 30.5×30.5 mm

Packing list
1x F405 V2
1x 3060S
2x SH1.0 8P cable
1x Electrolytic capacitor 1000uF 35V
1x XT60 AWG12 power cable 130MM
