Stack Partizan F722 60A

1 8

Code: SKU:3758

Stack Partizan F722 60A

Name: Stack Partizan F722 60A
Brand: Baltic Drones
SKU: 3758
Price: 103.82 EUR
Availability: OutOfStock

Stack Partizan F722 60A

Brand: Partizan

€103,82

~~€103,82~~ €103,82

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

Magazine Partizan F722 60A

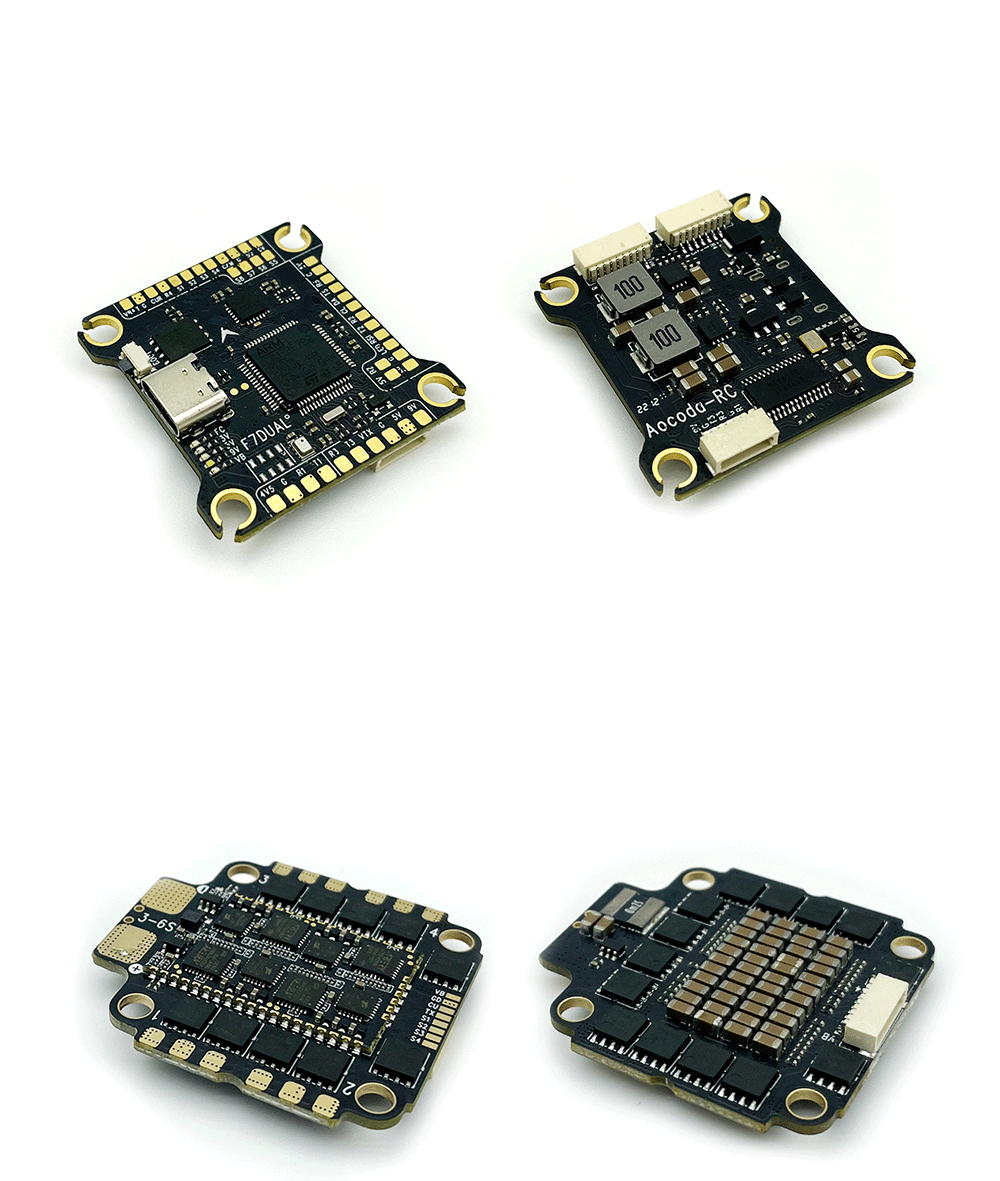

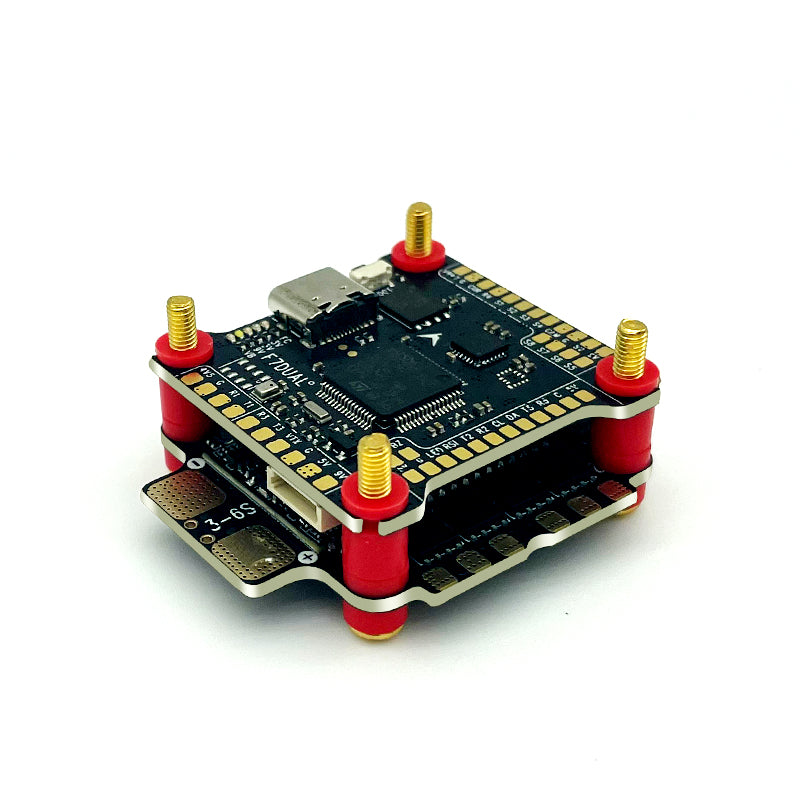

The Partizan F722 60A Stack combines a high-performance flight controller and an electronic speed controller (ESC) for precise and stable drone control. With its powerful F722 processor, this kit offers fast response that ensures smooth flight maneuvers and reliable performance. With a rated current of 60A, the ESC provides enough power for a wide range of motor and propeller configurations.

Specifications:

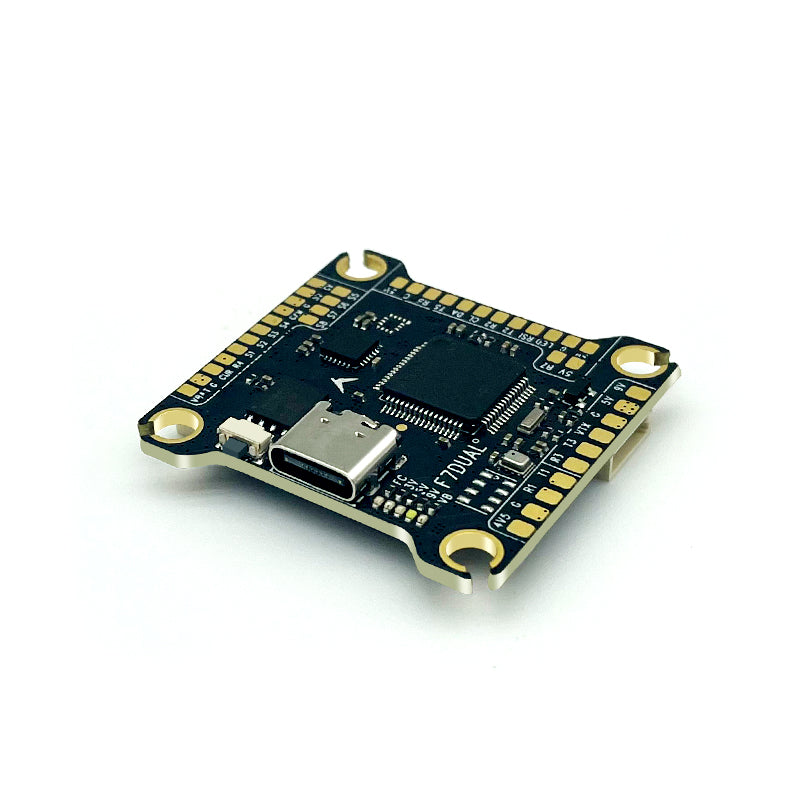

FC specification

CPU: STM32F22RET6
Gyro: MPU 6000
Baro: BMP280,DPS310
OSD: Support
BEG Output: 5V/2.5A 9V/3A
BlackBox: 16MB
Uart: 5 channels
BEC: 5V/2.5A, 9V/3A
USB connector: Type-C
Weight: 8.8g
Mounting hole: 30.5 x 30.5 mm, M3
Size: 37 x 37 mm
FC firmware: AOCODAF7DUAL

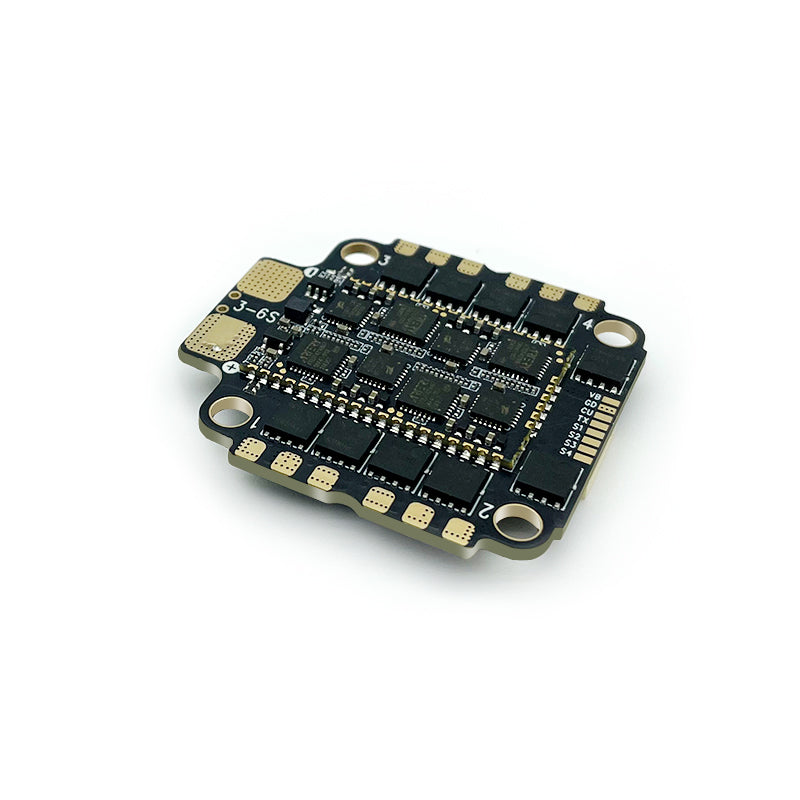

ESC specification

Power supply: 3-6S Lipo
MCU: G071
Continuous current: 60A X4
Explosive current: 70A X4
Current sensor: Support
Current scale: 125 (recommended)
ESC Telemetry: Support
Weight: 13.8g
Mounting hole: 30.5 x 30.5 mm, M3
Size: 41 x 44.5 mm
Default Protocol: 150/300/600/1200 & MultiShot/0neShot/Proshot/PWM etc.
ESe Firmware: BL32 41N1 60A
Model: 3060ESC

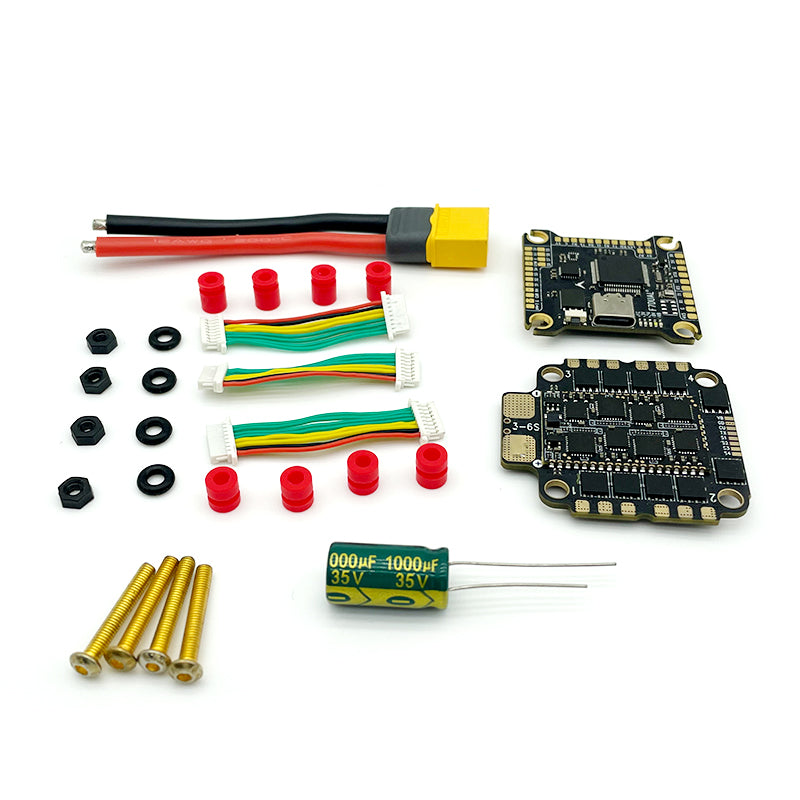

Packing List:
1x F7DUAL
1x 3060 ESC
2x SH1.0 8P cable
1x Electrolytic capacitor 1000uF 35V
1x XT60 AWG12 power cable 13CM
8x M3*8 shock-absorbing balls
8x M3 nylon nut
4x M3*25mm metal screw
