Stack Pilotix F405 V3 3080 80A AM32

1 11

Code: SKU:6288

Stack Pilotix F405 V3 3080 80A AM32

Name: Stack Pilotix F405 V3 3080 80A AM32
Brand: Baltic Drones
SKU: 6288
Price: 158.39 EUR
Availability: InStock

Stack Pilotix F405 V3 3080 80A AM32

Brand: Pilotix

€158,39

~~€133,10~~ €158,39

--19% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

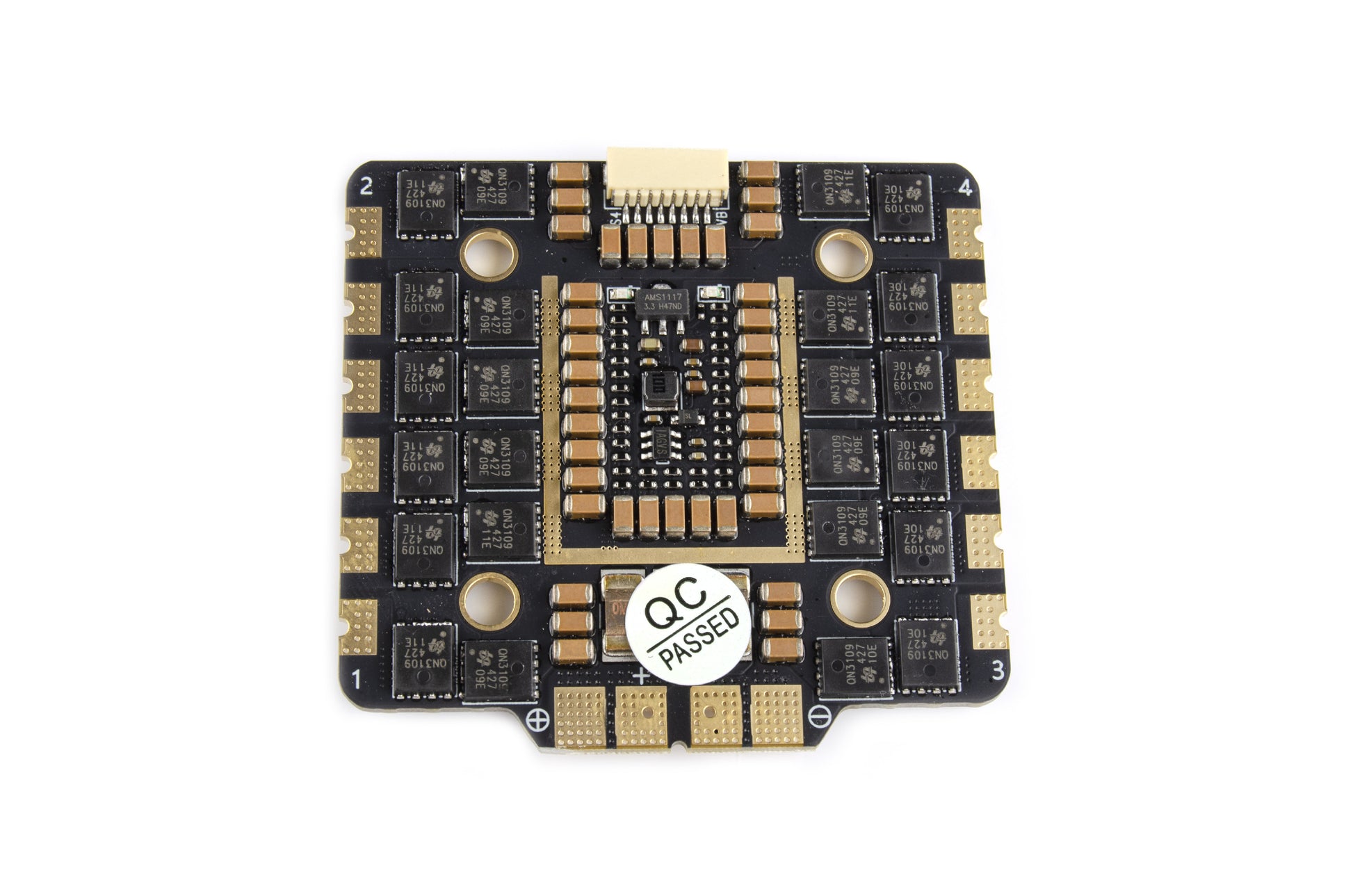

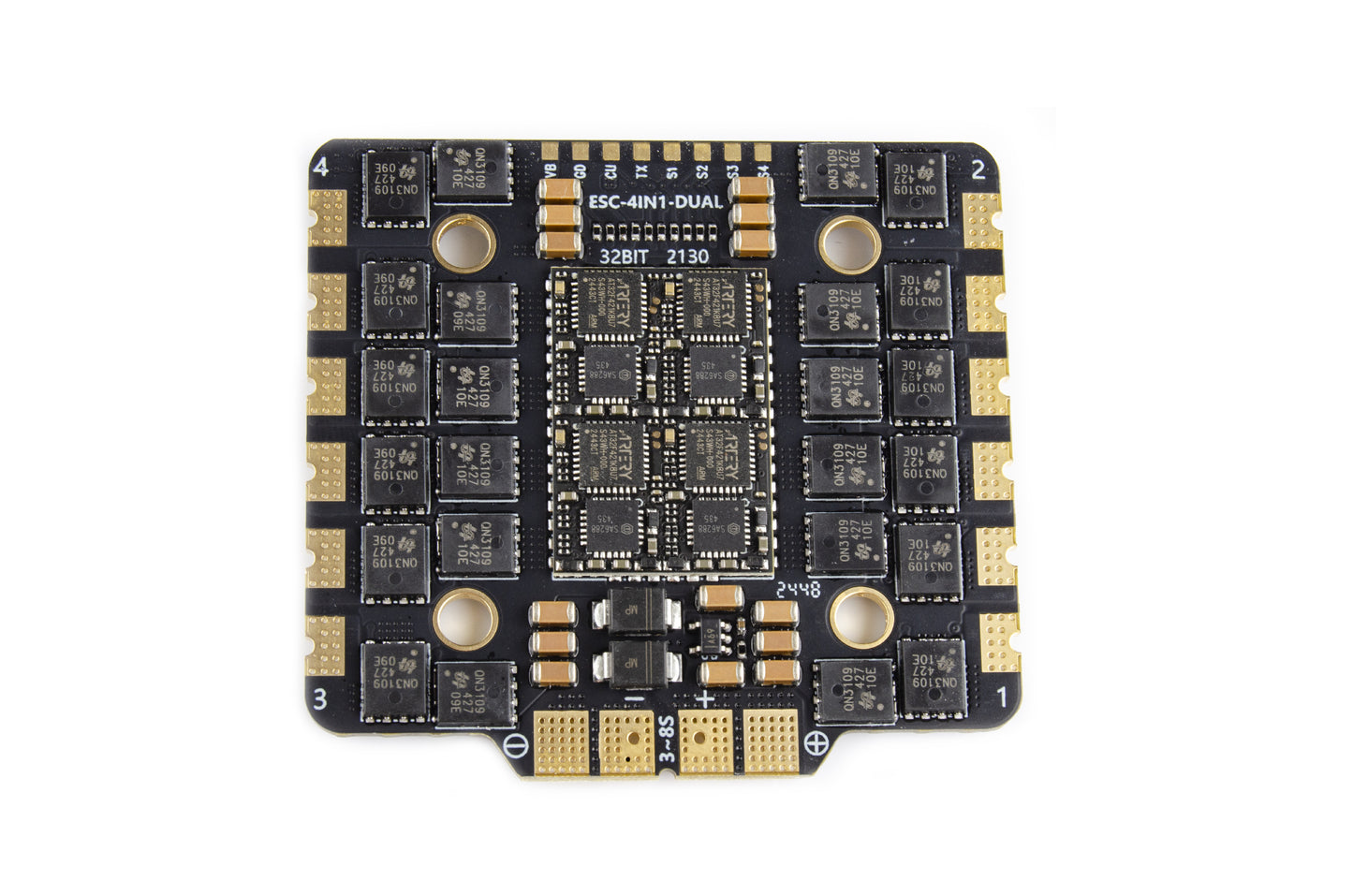

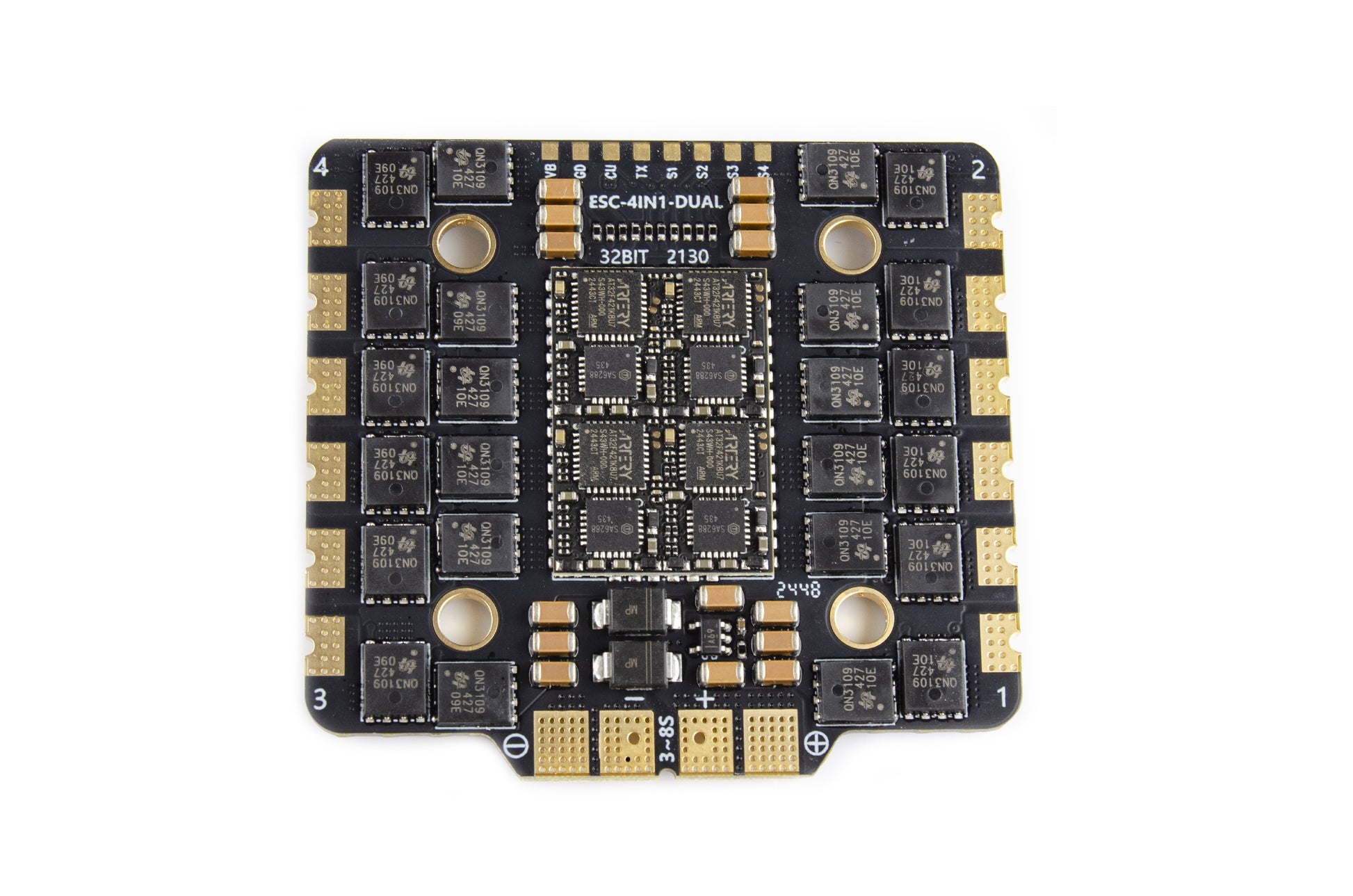

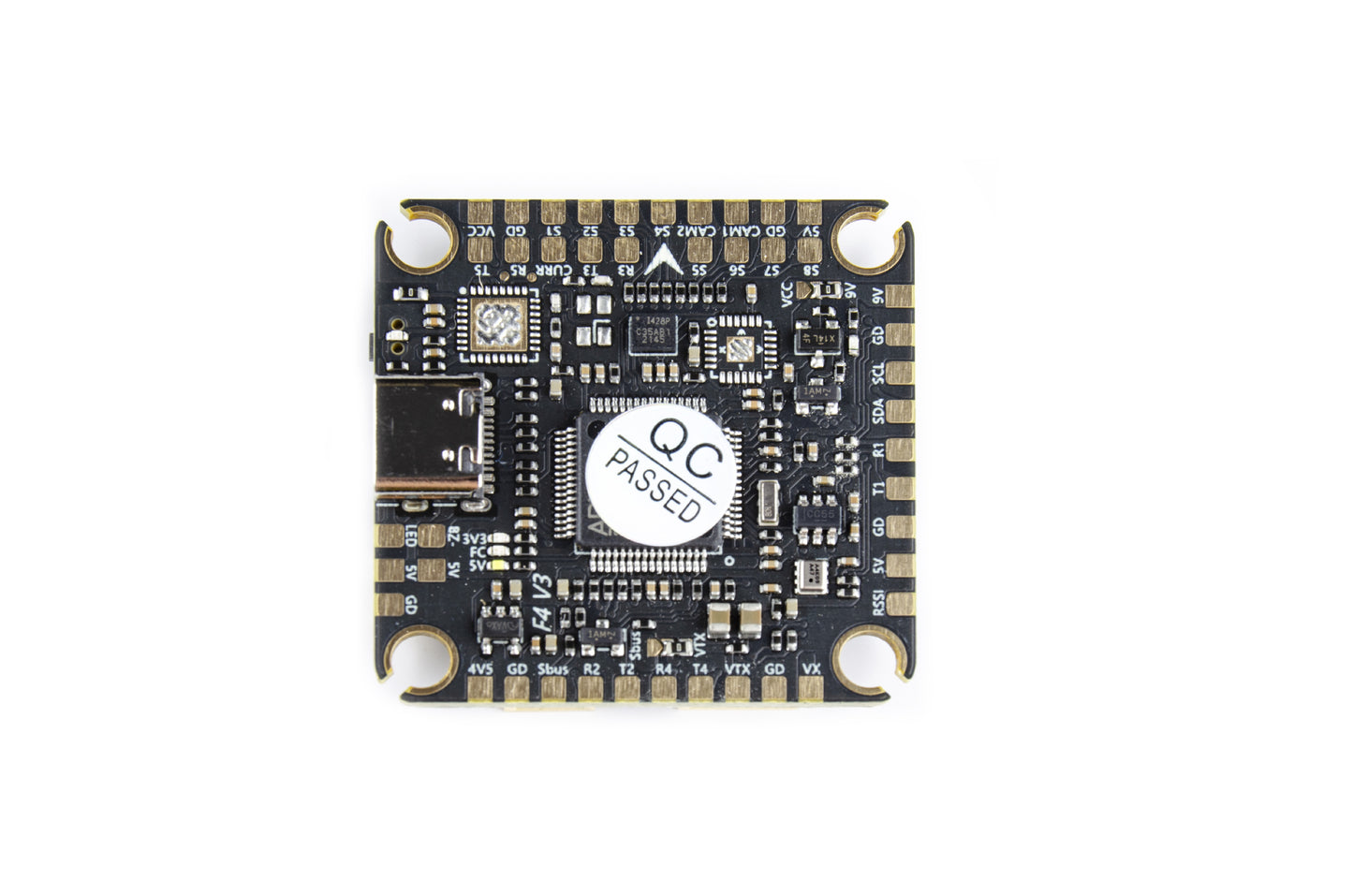

Stack Pilotix F405 V3 3080 80A AM32

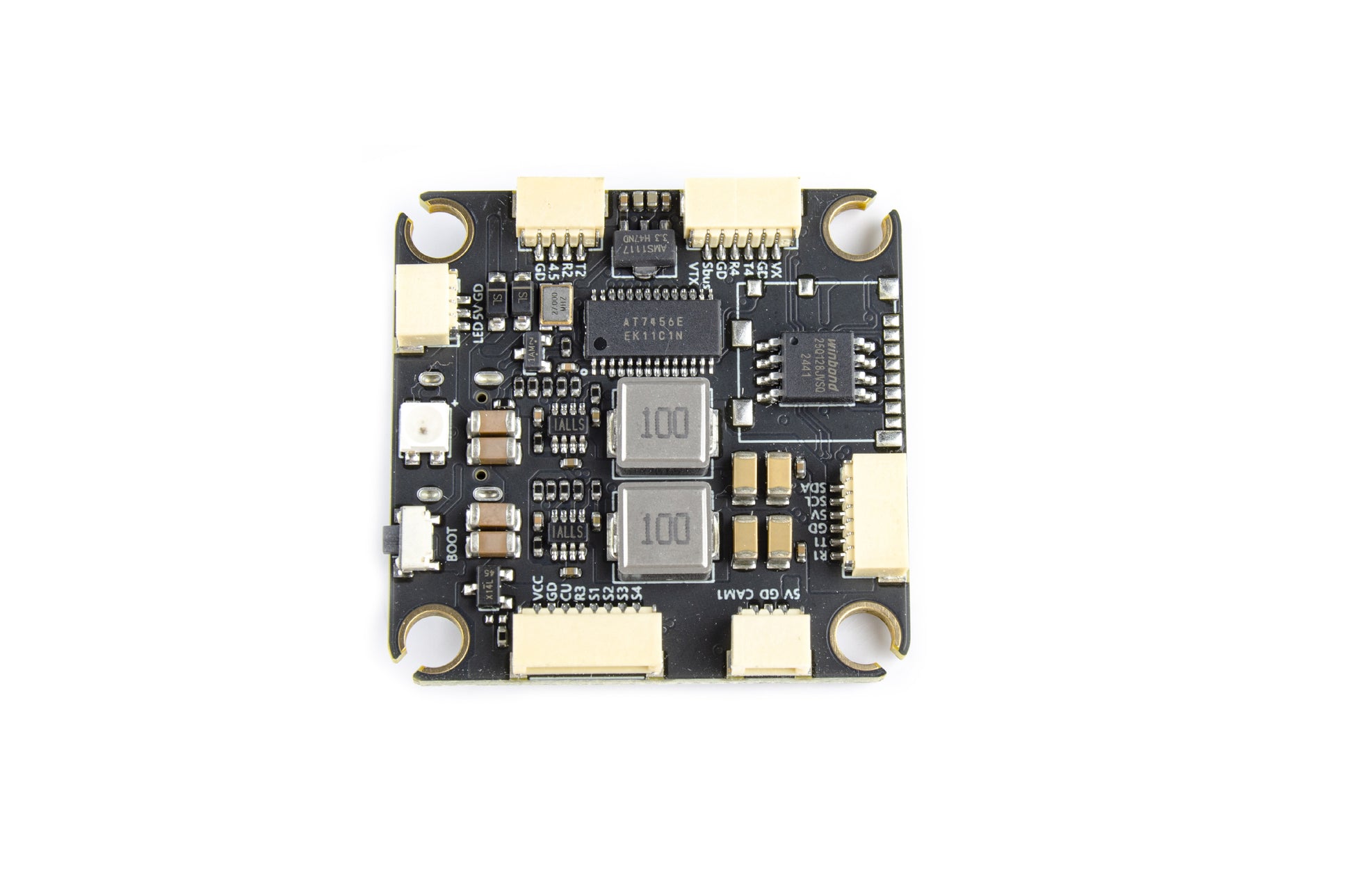

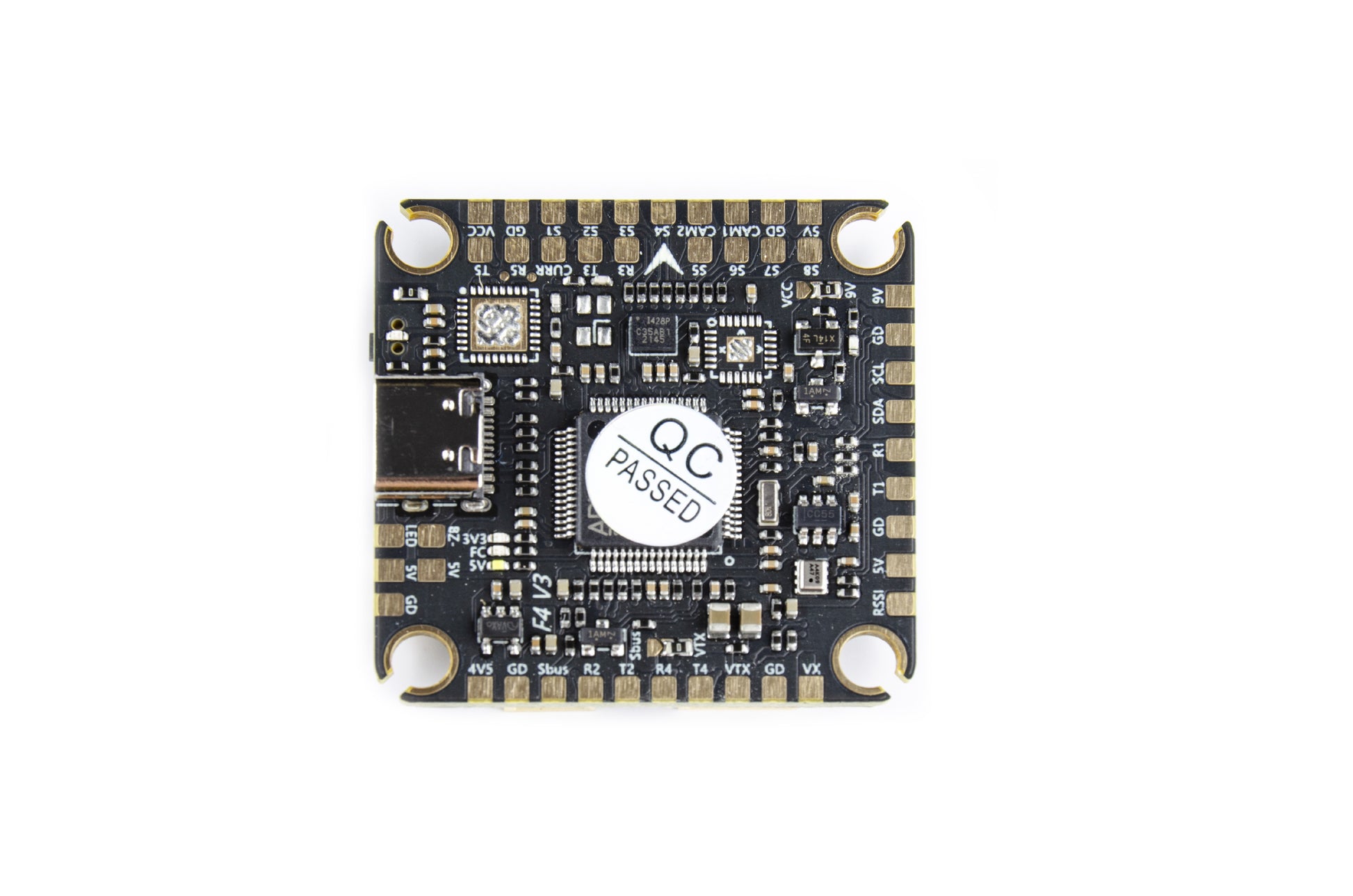

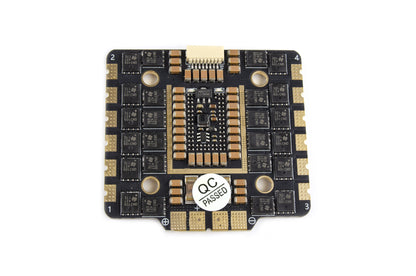

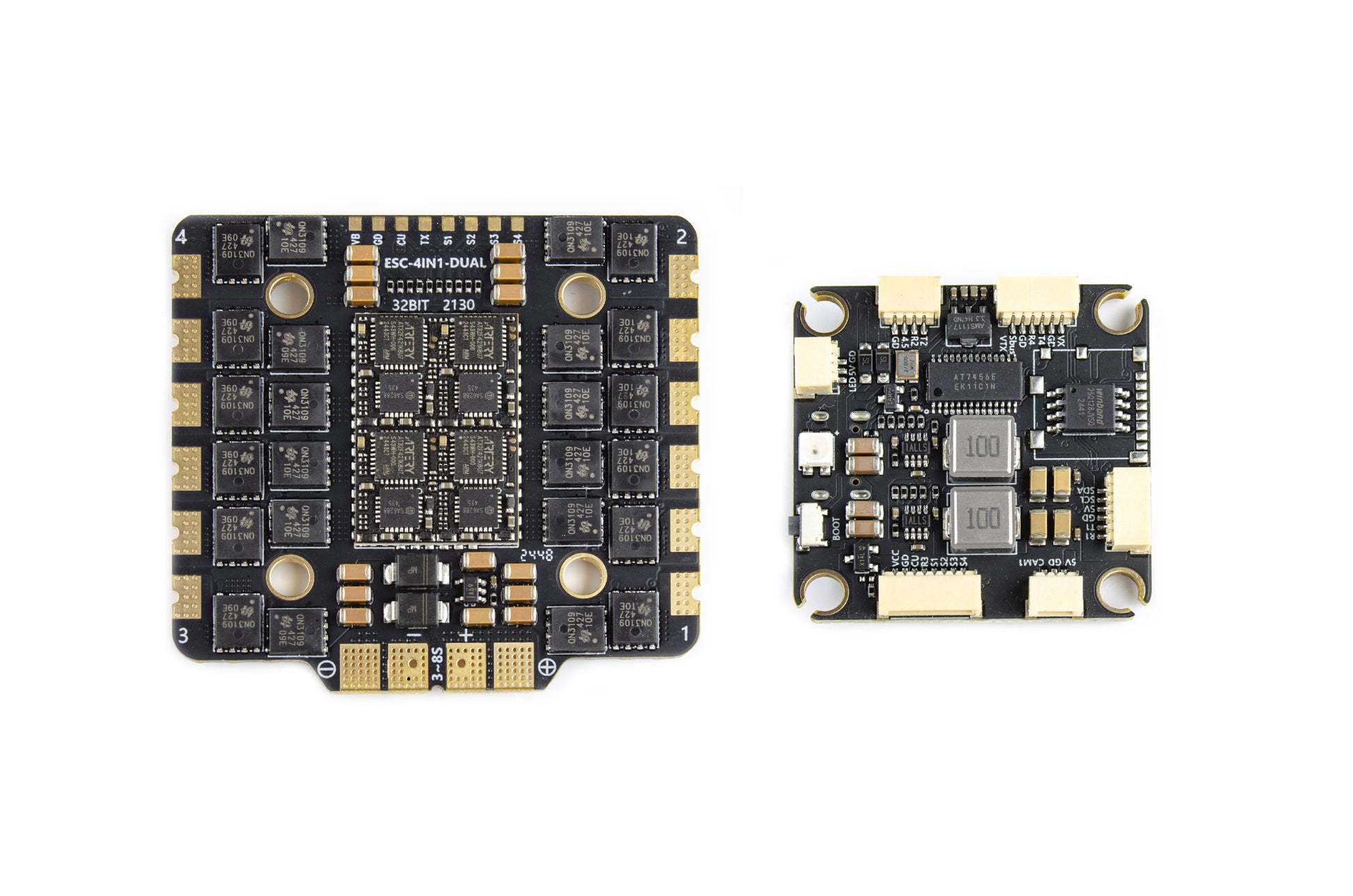

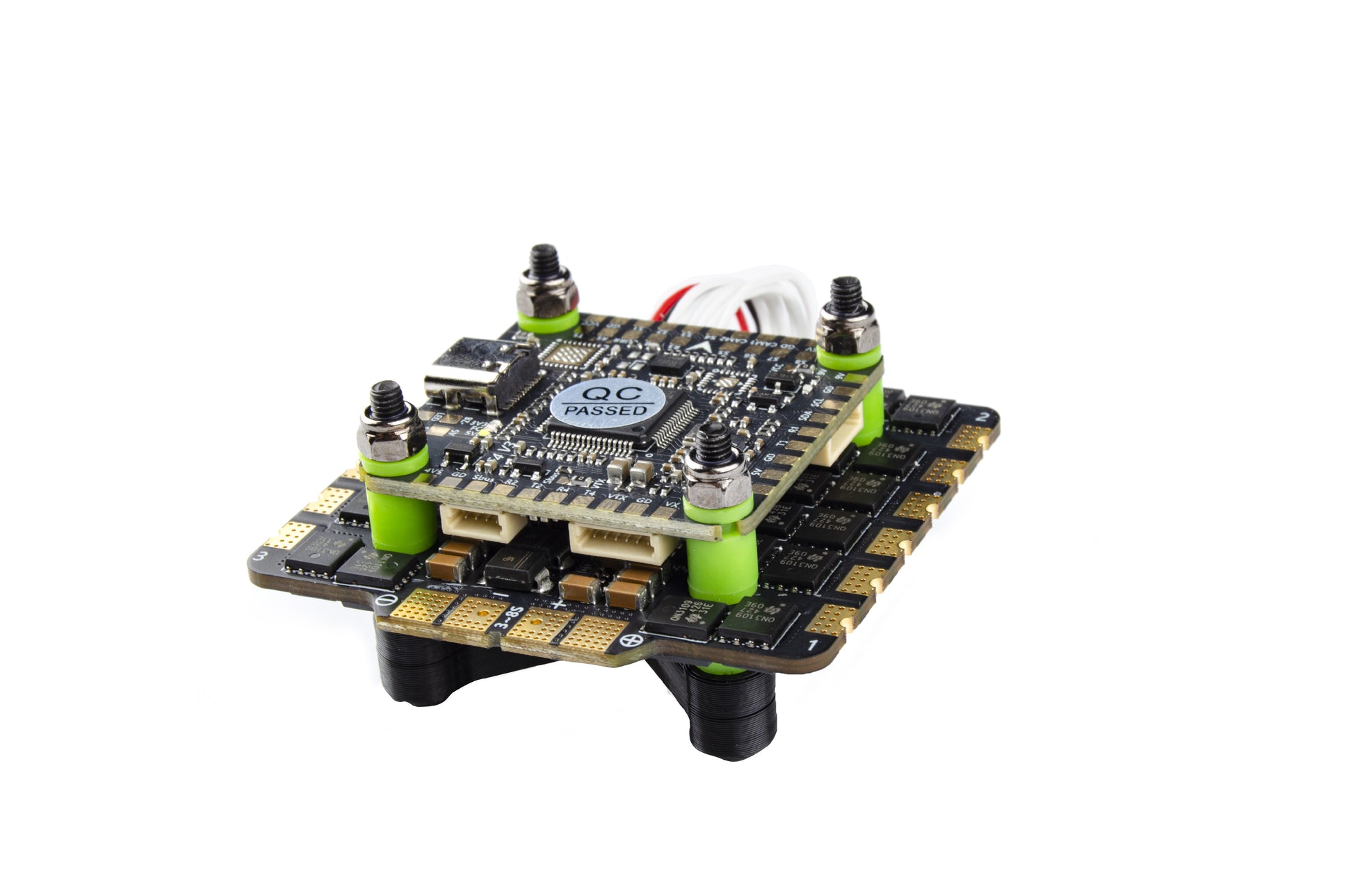

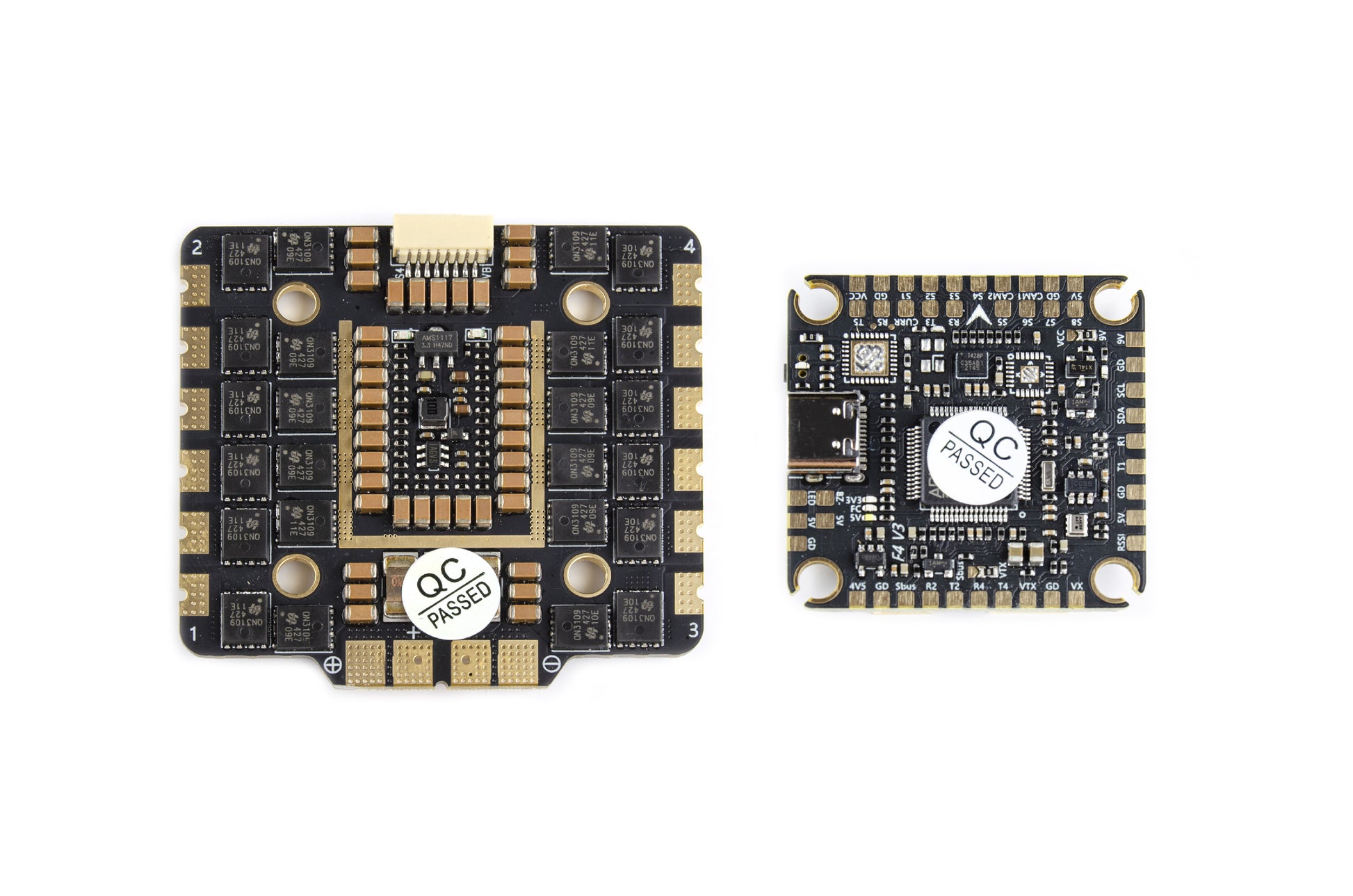

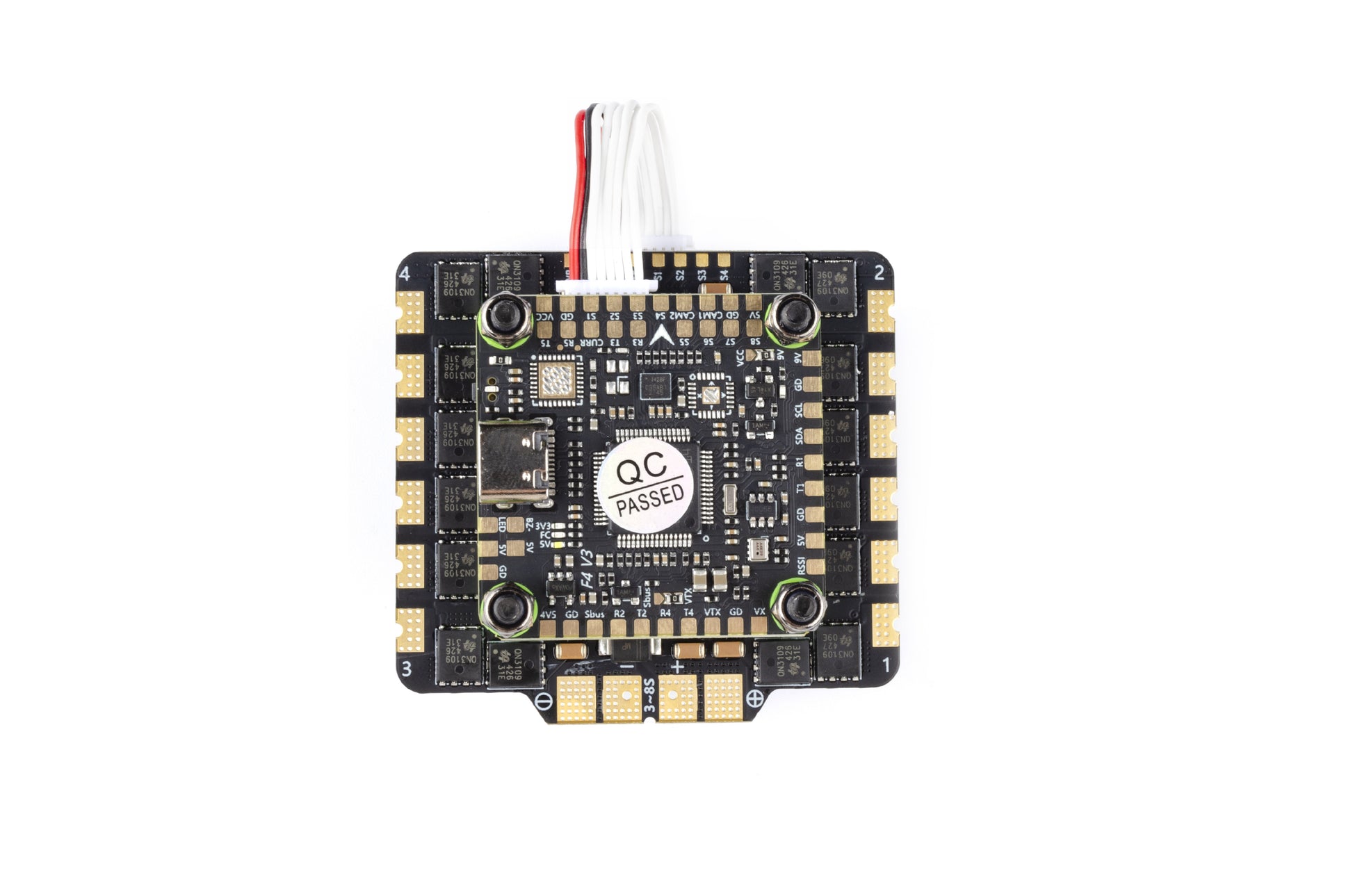

The Pilotix 6288 Stack (F405 V3 Flight Controller + 80A ESC) is a high-performance flight control and power management system designed for demanding drone applications. This STM32F405 processor and ICM42688 gyroscope stack provides precise control, fast response and advanced stabilization.

Specifications:

- Processor: STM32F405RGT6
- Gyroscope: ICM42688
- Barometer: SPL06B
- Black box: 16MB
- Motor output: 8 channels
- Universal serial ports: 5 channels
- Output power: 5V/2.5A, 9V/2A
- OSD: Supported
- Weight: 9.6 g
- External dimensions: Dimensions: 36 mm x 36 mm
- Spacing of mounting holes: 30.5 mm x 30.5 mm
- Firmware: PILOTIX F405V3
- Continuous current: 80 A
- Peak current: 100 A
- Input signal: Dshot300, Dshot600, PWM, bi-directional Dshot
- Telemetry: Supported
- Current Meter: Supported
- Input voltage: 3-8S LiPo
- Firmware: AM32_AT32PB4_540_F421_2.12.hex
- Operating temperature: -20°C to +55°C
- Operating humidity: 20% - 95%
- Storage temperature: -20°C to +70°C
- Mounting hole: M3, 30.5mm x 30.5mm
- Weight: 33 g
- Dimensions: 30 x 30 mm: 55 mm x 52 mm

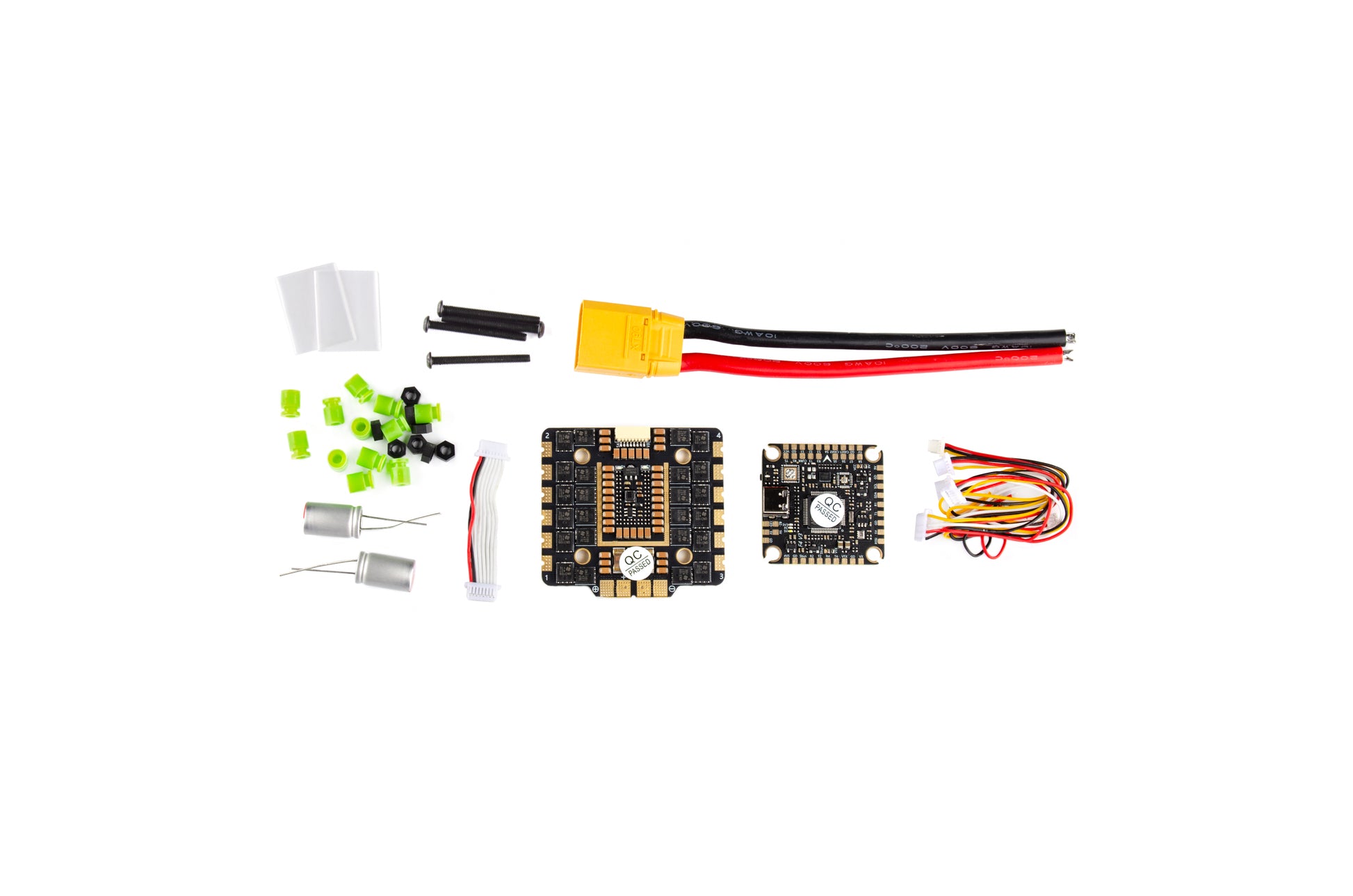

The package contains:
1 x Stack Pilotix F405 V3 3080 80A AM32
