TX Module RadioMaster Bandit RF ELRS 915MHz
TX Module RadioMaster Bandit RF ELRS 915MHz
Brand: RadioMaster
Regular price
€122,02
Regular price
€122,02
Sale price
€122,02
Unit price
/
per
Taxes included.
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Payment methods
- Description
- Related Files
- Discussion

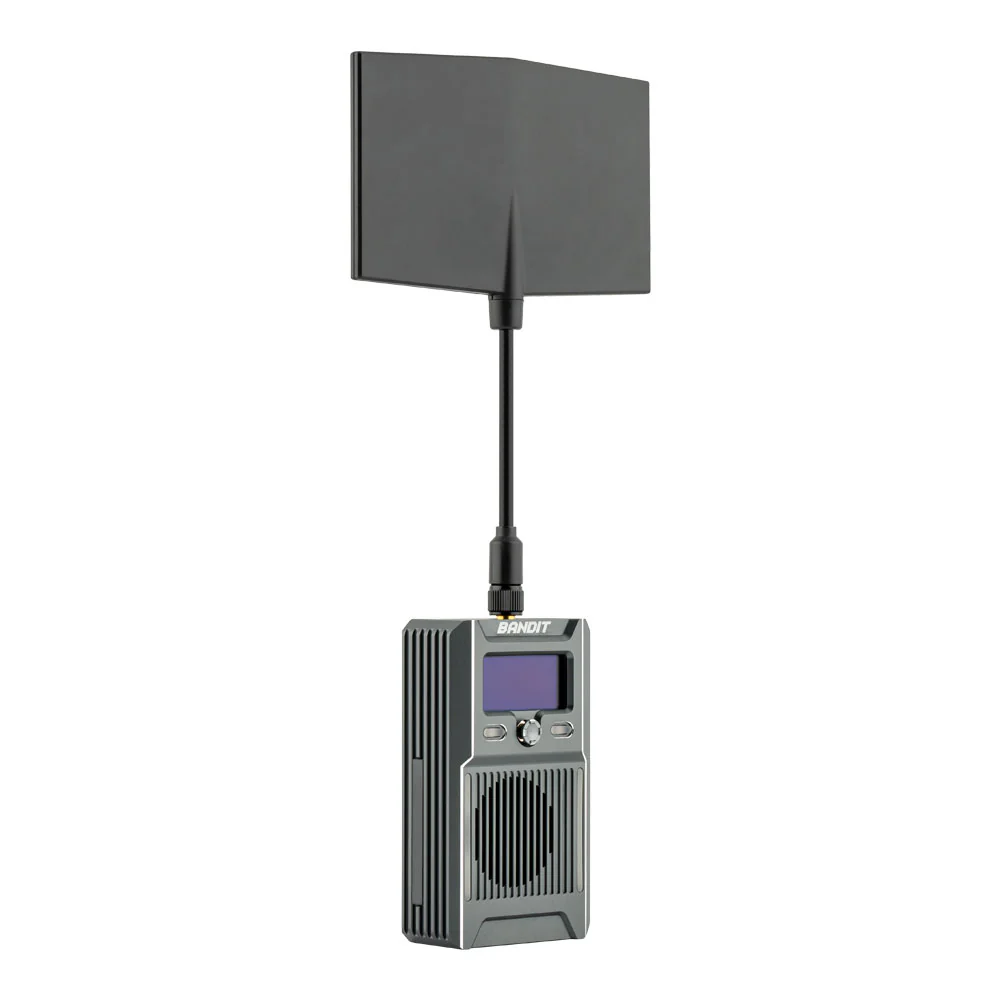

TX Module RadioMaster Bandit RF ELRS 915MHz
Developed in collaboration with the ExpressLRS team, the Bandit ExpressLRS RF Module revolutionizes the remote control of drones and UAVs. Designed for exceptional performance and reliability, this module combines advanced technology, robust design and user-friendly features to take your flying experience to a new level.
Key Features
- Power Output: Up to 1W (1000mW) output power for extended range and stable connection.
- Speed without compromise: Support for packet rates up to 200Hz for ultra-fast response.
- Energy Efficiency: Optimized circuitry with ultra-low power consumption and built-in TCXO oscillator.
- Durable design: Precision-made gunmetal CNC case with efficient cooling system and impressive RGB lighting effects.

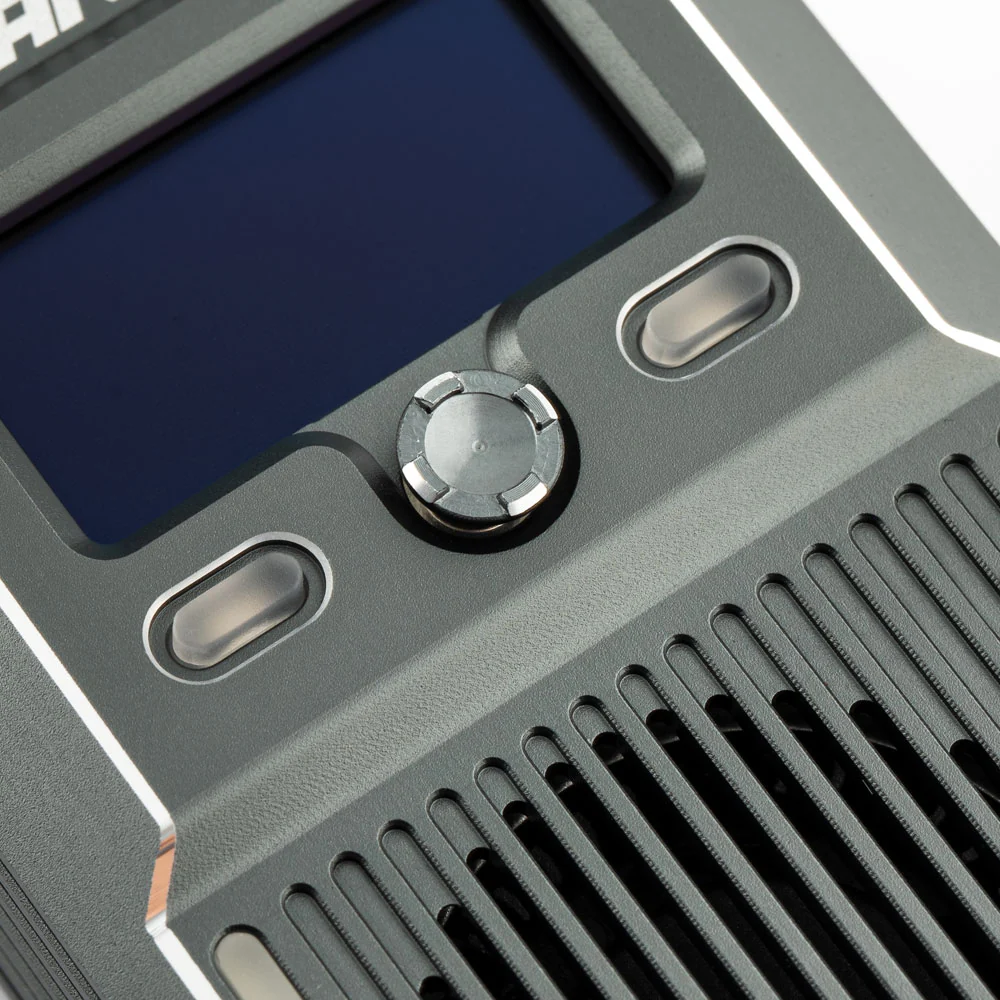

- Enhanced control: High-contrast OLED display, directional control button and customizable shortcut keys.
- Integrated technologies: Built-in ExpressLRS backpack, accelerometer, WiFi and Bluetooth.
- Wide compatibility: Includes Micro and Nano adapters, Futaba CRSF and UART cables.

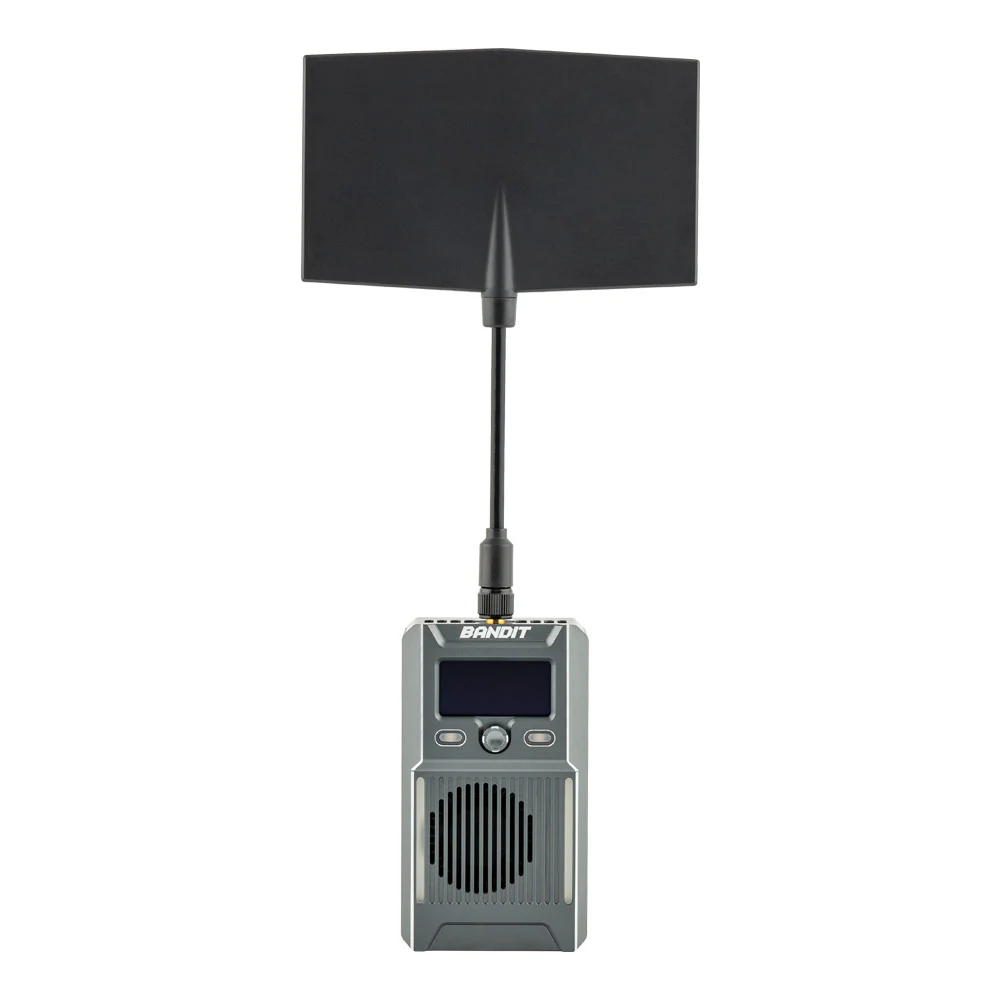

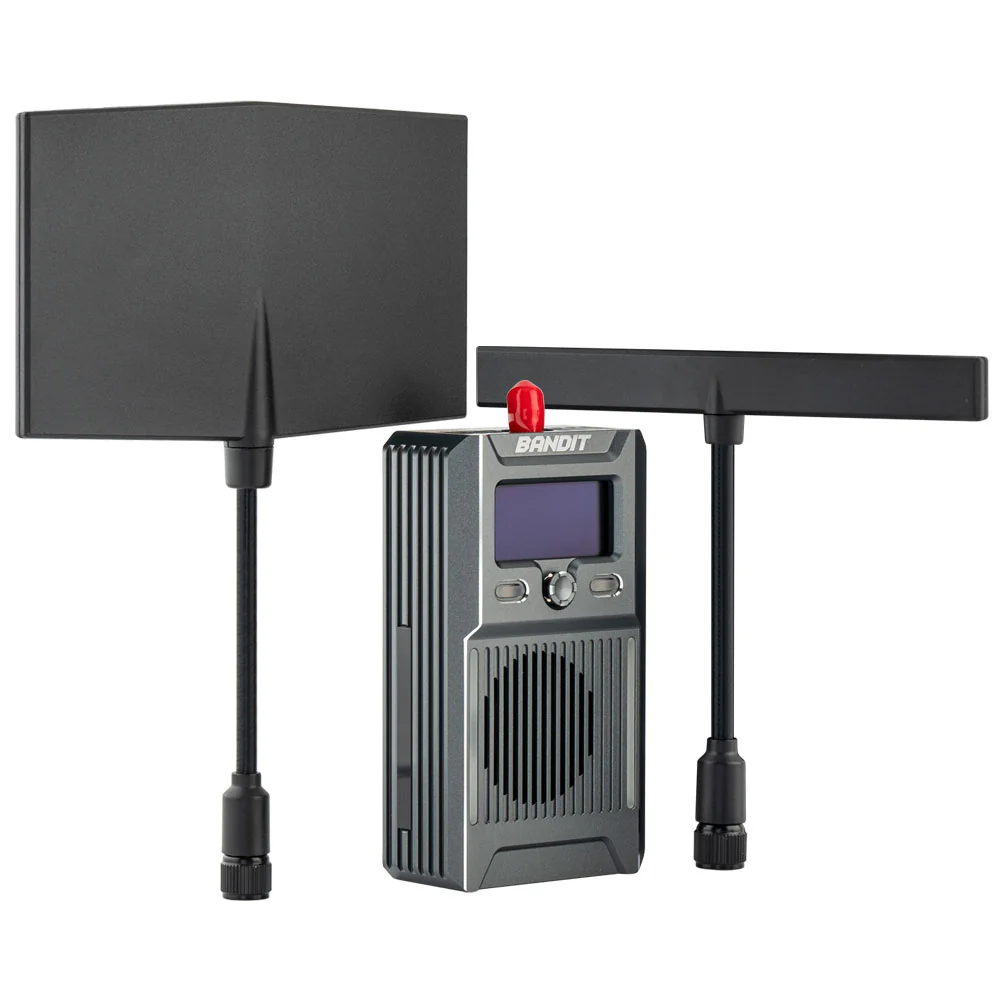

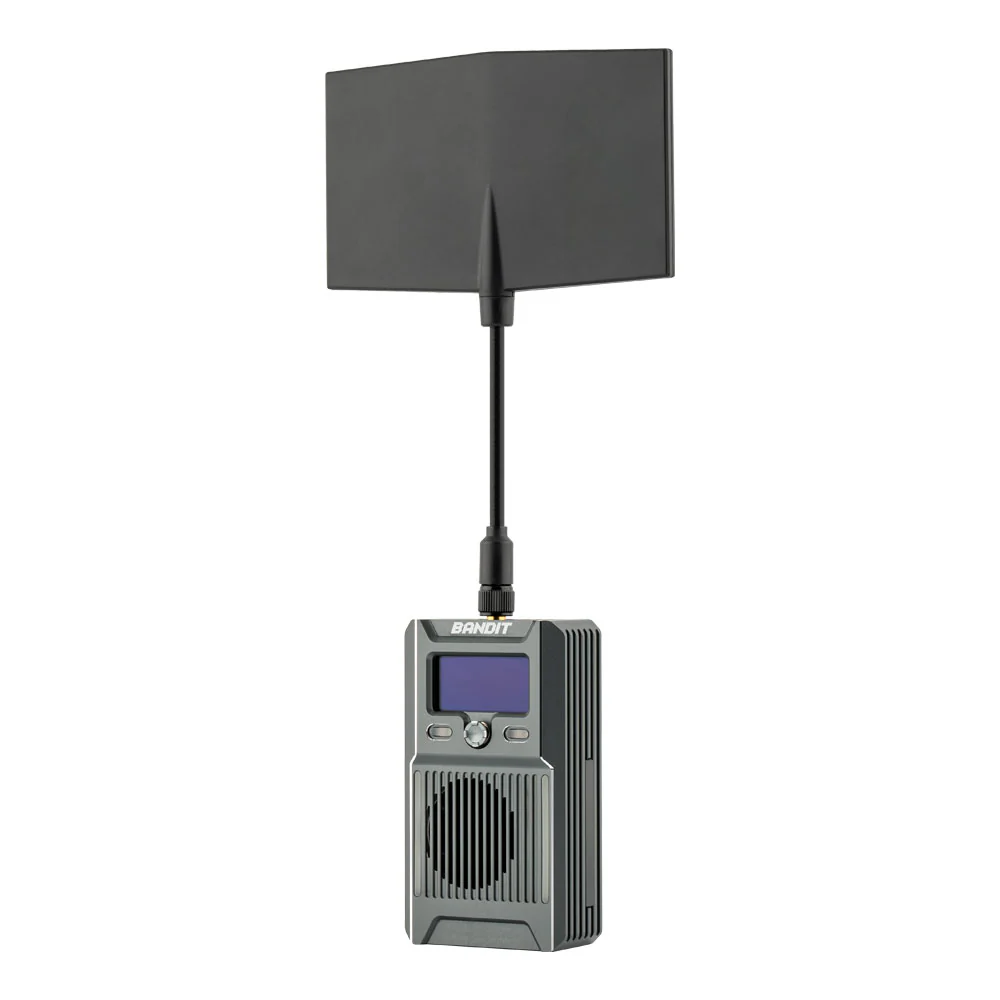

- Universal Antennas: Includes 915/868MHz Moxon and T Antennas.
Specifications
- Regulatory band: FCC915
- MCU: ESP32 (main), ESP8285 (auxiliary, like ESP backpack)
- RF chip: SEMTECH SX1276
- Packet rate: 25Hz - 200Hz
- Output power: 1000mW / 30dBm

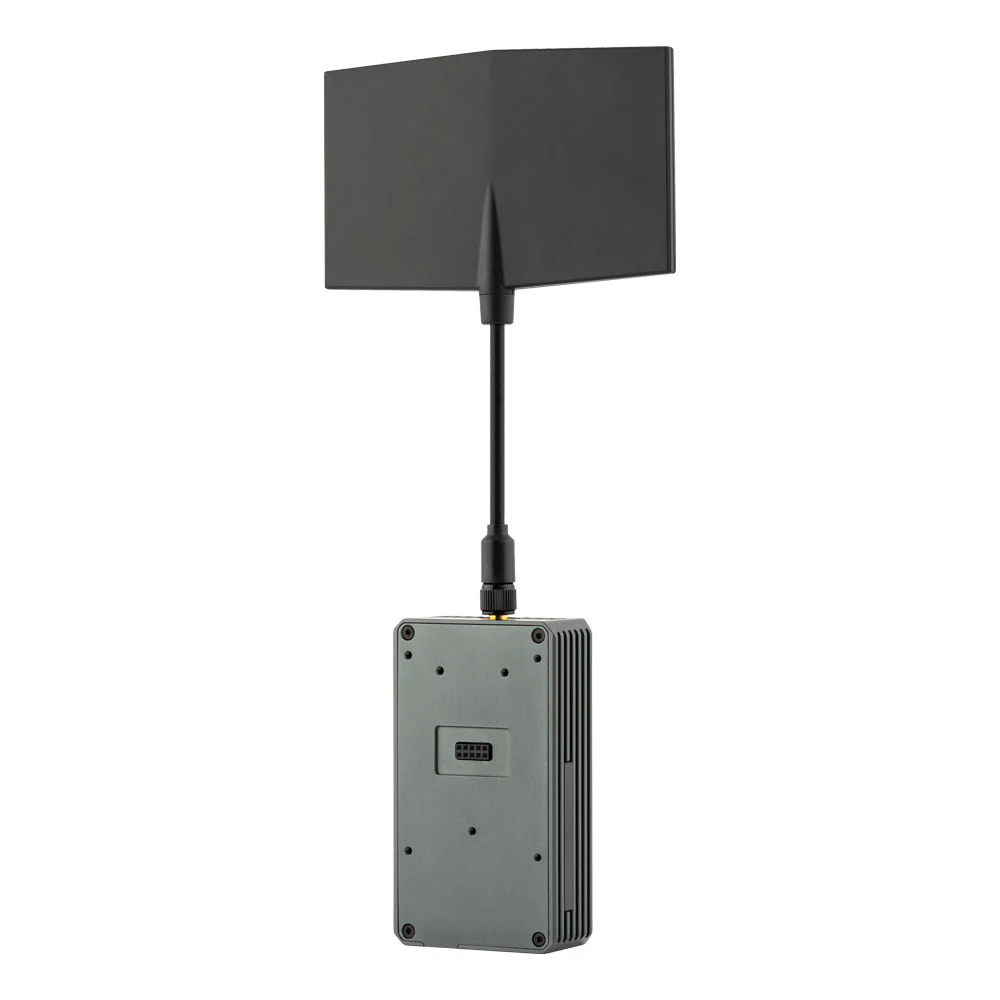

- Module adapters: Micro (5-pin) and Nano (8-pin) sockets

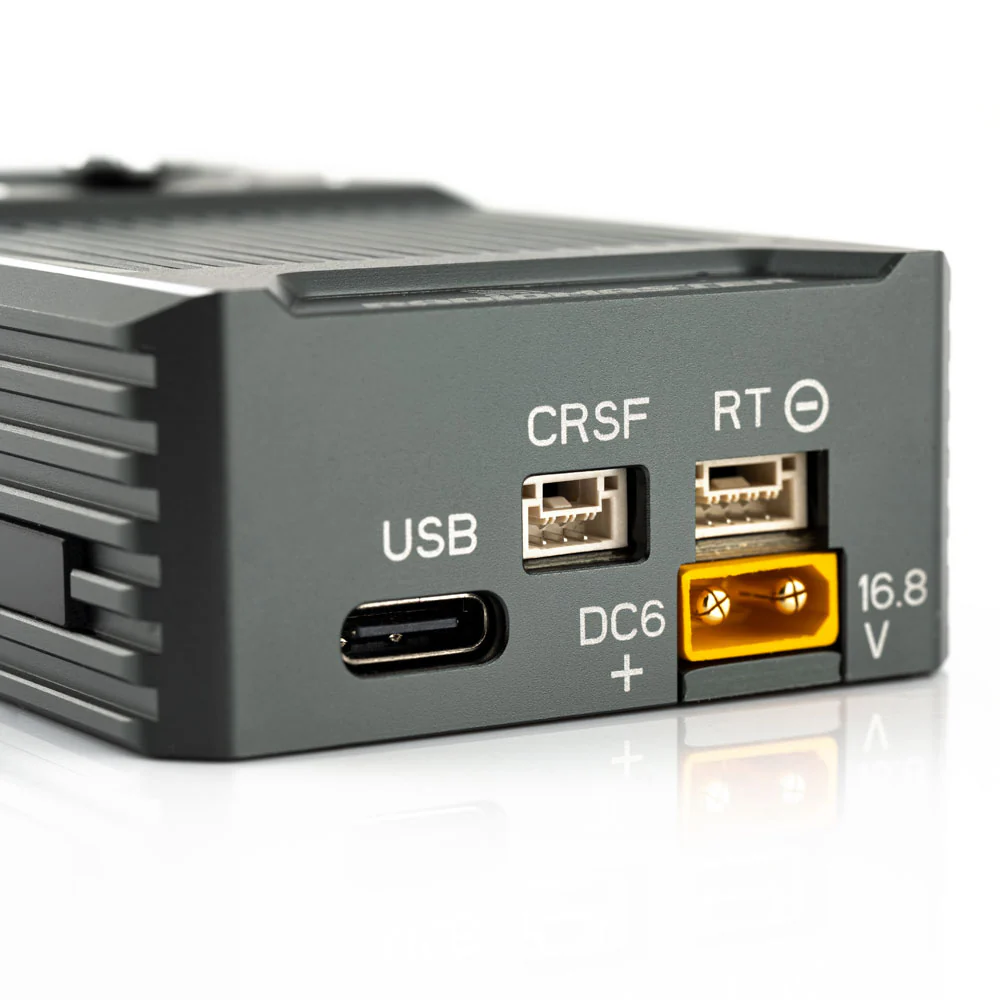

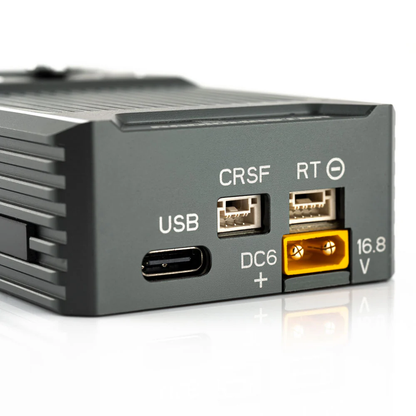

- Power supply: DC 6V - 16.8V (via XT30)

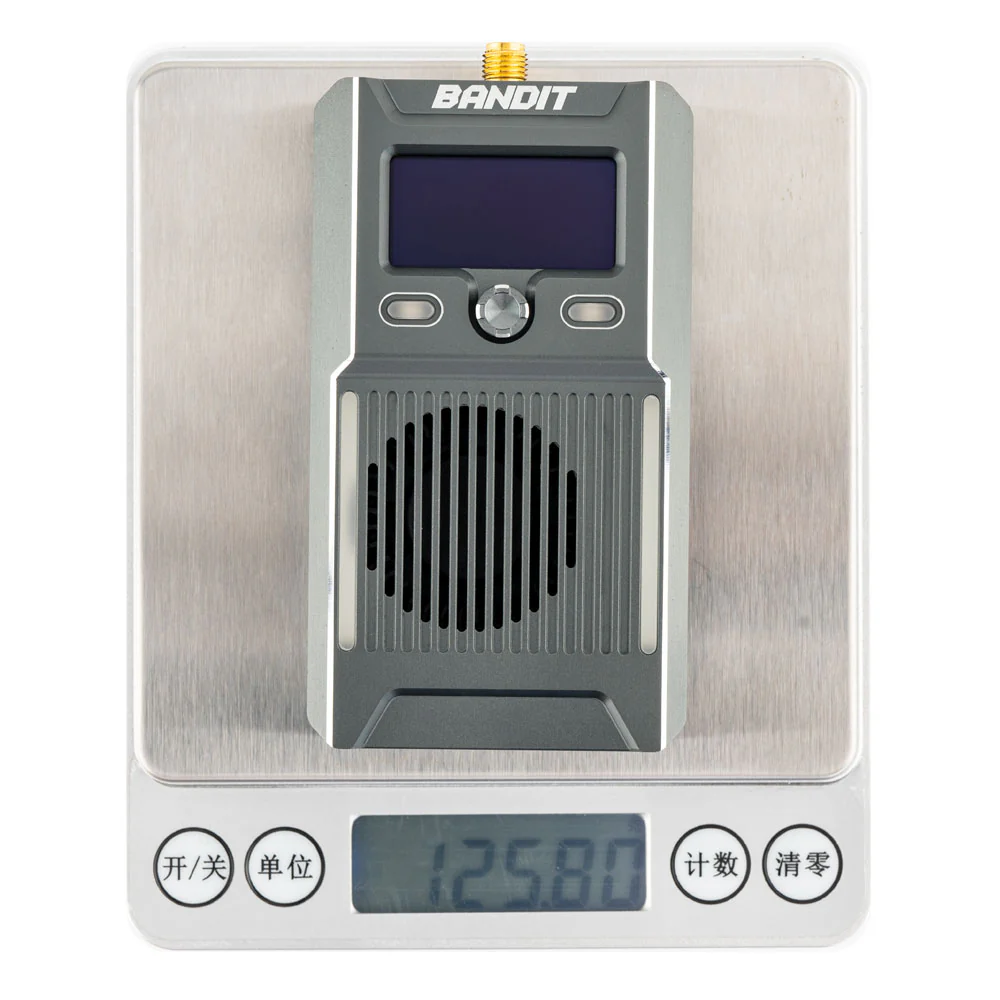

- Weight: 155g (with antenna)

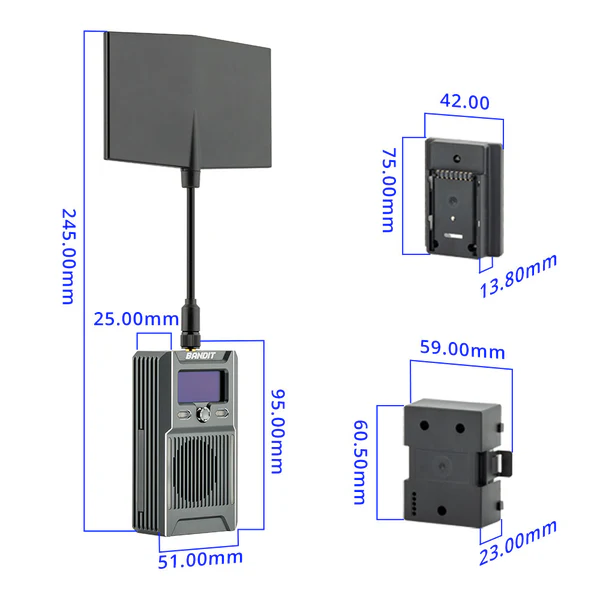

- Dimensions: 90 × 51 × 24 mm
- Built-in functions: RGB lighting, OLED display and G-sensor

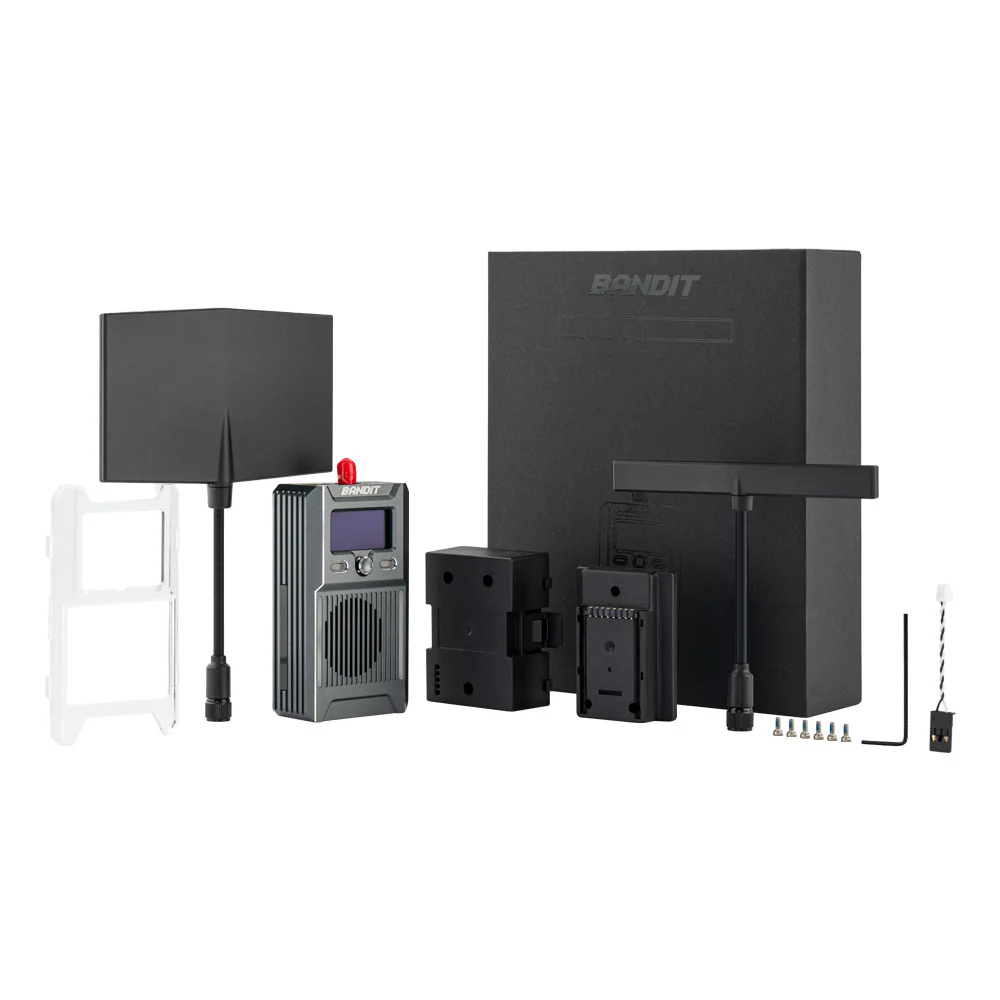

Package contents
- 1x Bandit ExpressLRS RF Module
- 1x T Antenna
- 1x Moxon Antenna
- 1x Micro Adapter
- 1x Nano Adapter
- 1x Transparent protective cover
- 1x UART Cable
- 1x Futaba CRSF Cable
- 1x 1.55mm Allen key
- 6x M2*6 Screws
- 1x User Manual
