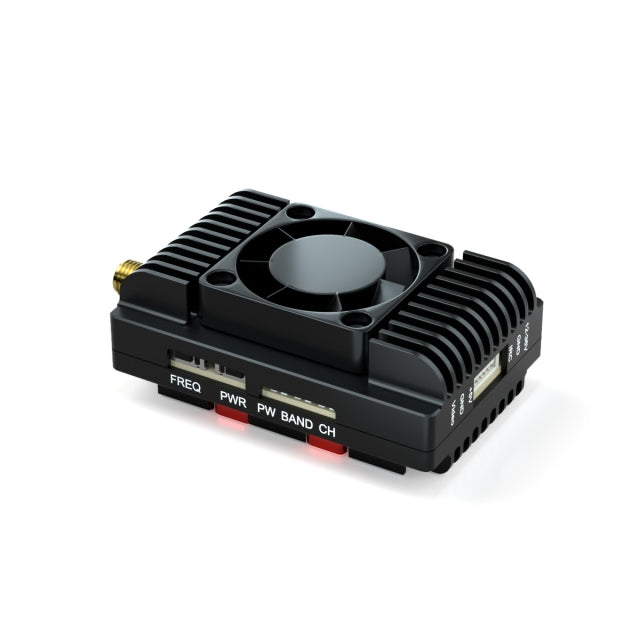

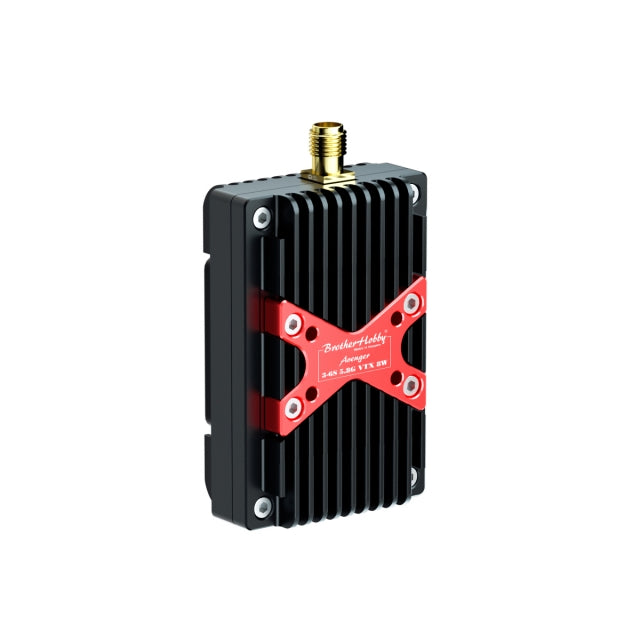

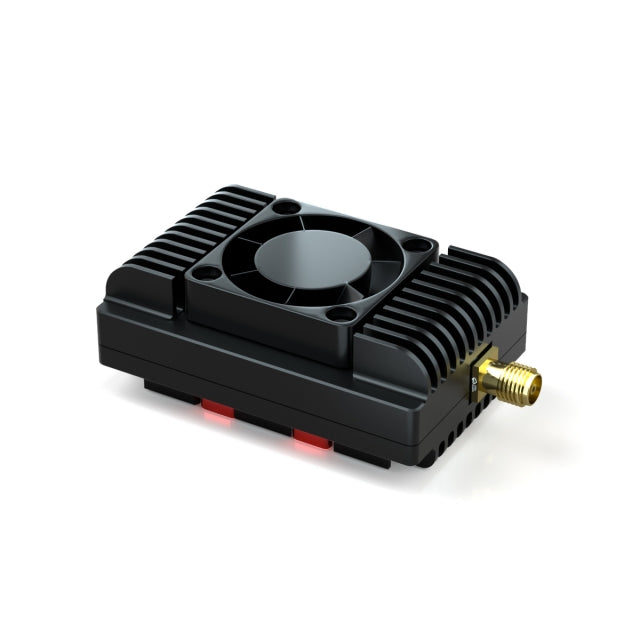

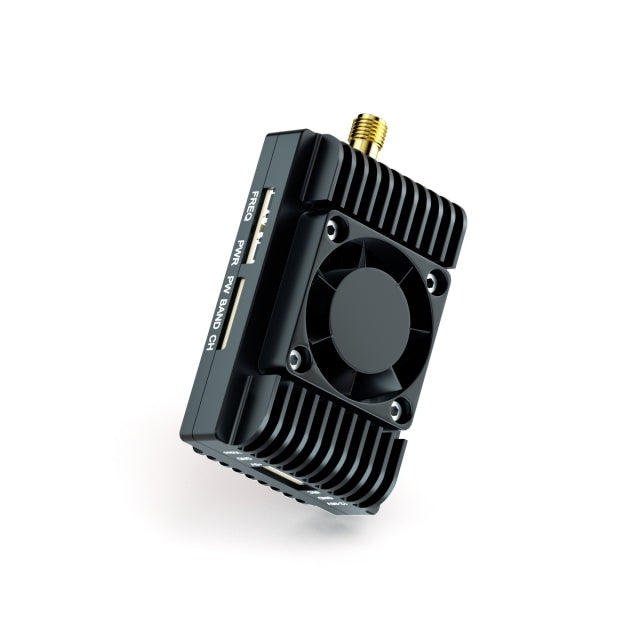

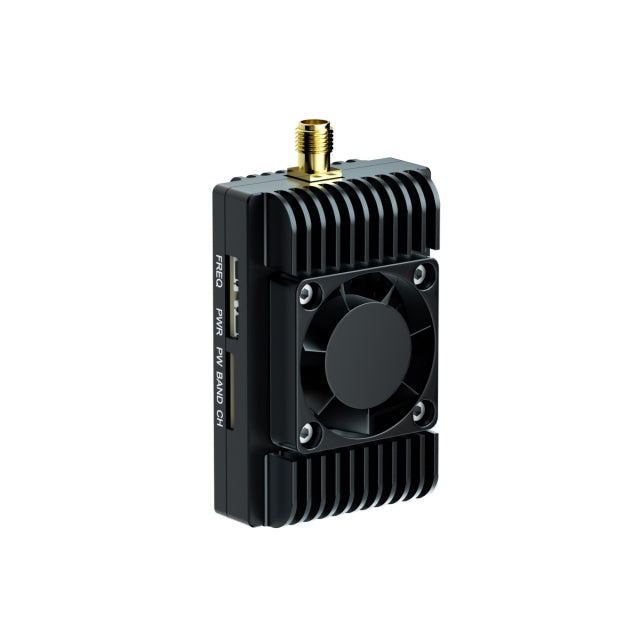

VTX Brotherhobby Avenger 3-6S 5.8G VTX 8W Brotherhobby Avenger 3-6S 5.8G 8W VTX is a powerful video transmitter designed for long-range FPV applications. Thanks to five adjustable power levels up to 8 W, it ensures stable and clear image transmission even at extreme distances. With Rogers' advanced four-layer high-frequency circuit board, improved heat dissipation design and high signal stability, this VTX is ideal for freestyle, racing and long-distance FPV flights. Specifications: - Channels: 48CH - Power levels: PIT / 0.6W / 1.6W / 5W / 8W (five adjustable levels) - Static: 0.33 A - Maximum transmission power (8 W): 1.9A - Output voltage: DC 5V - Input voltage: DC 12-36V - Communication protocol: IRC Tramp - Video format: NTSC / PAL - Video input impedance: 50Ω - Antenna connector: SMA - PCB size: 55mm x 36.8mm - PCB weight: 9g (without antenna and power cable) - External dimensions: Dimensions: 57.3 mm x 38.6 mm x 22.8 mm - Total weight: 66 g The package contains: 1x VTX Brotherhobby Avenger 3-6S 5.8G VTX 8W.
