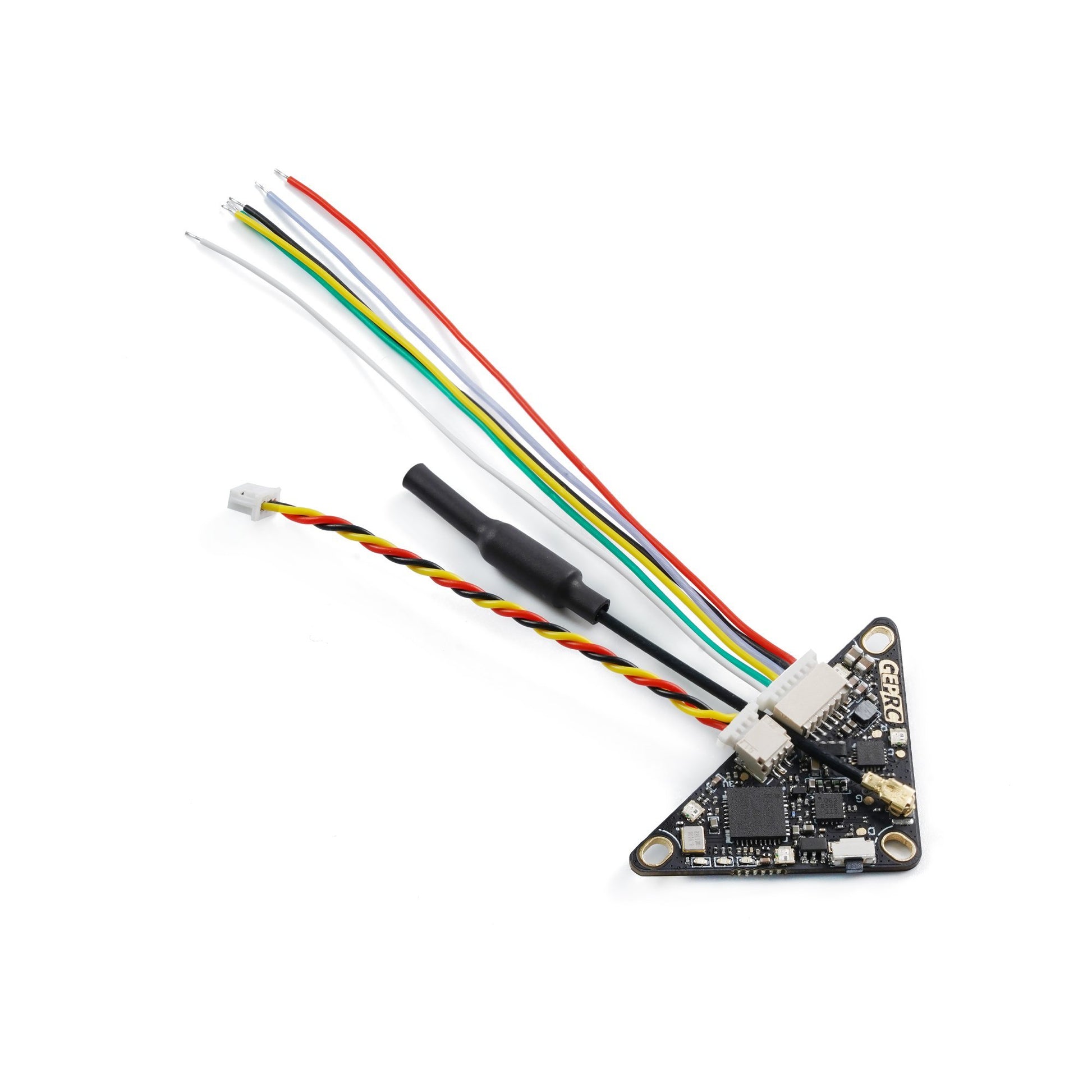

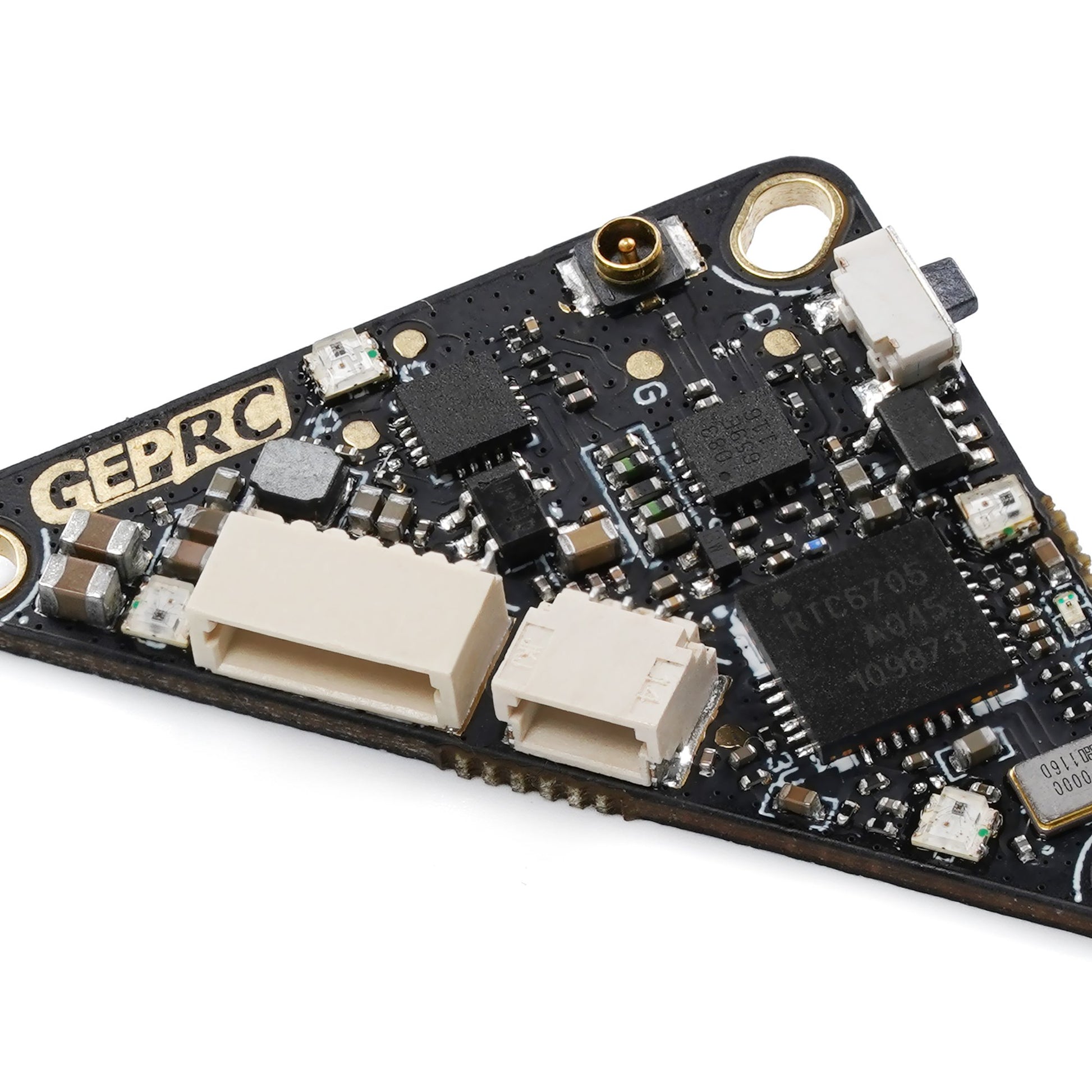

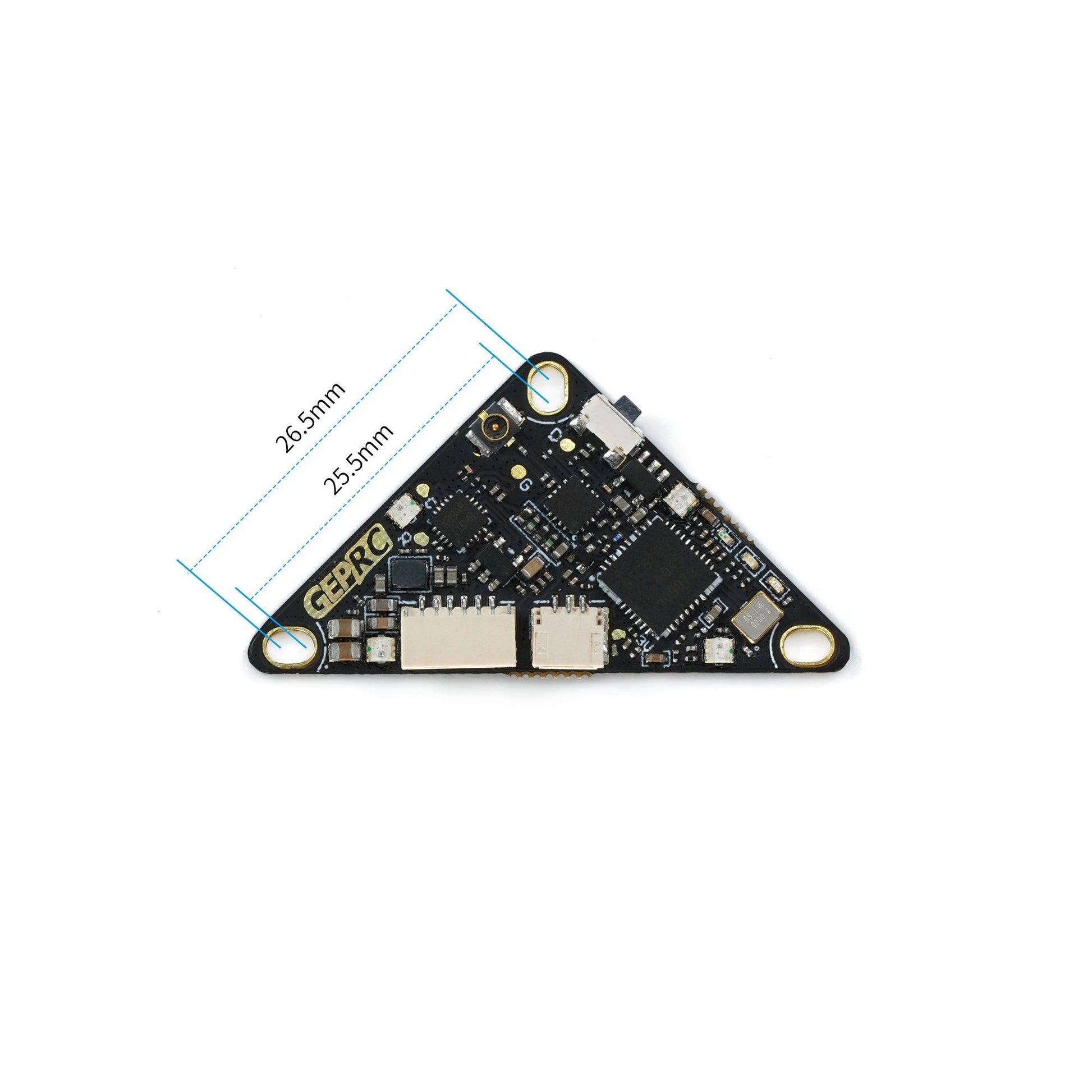

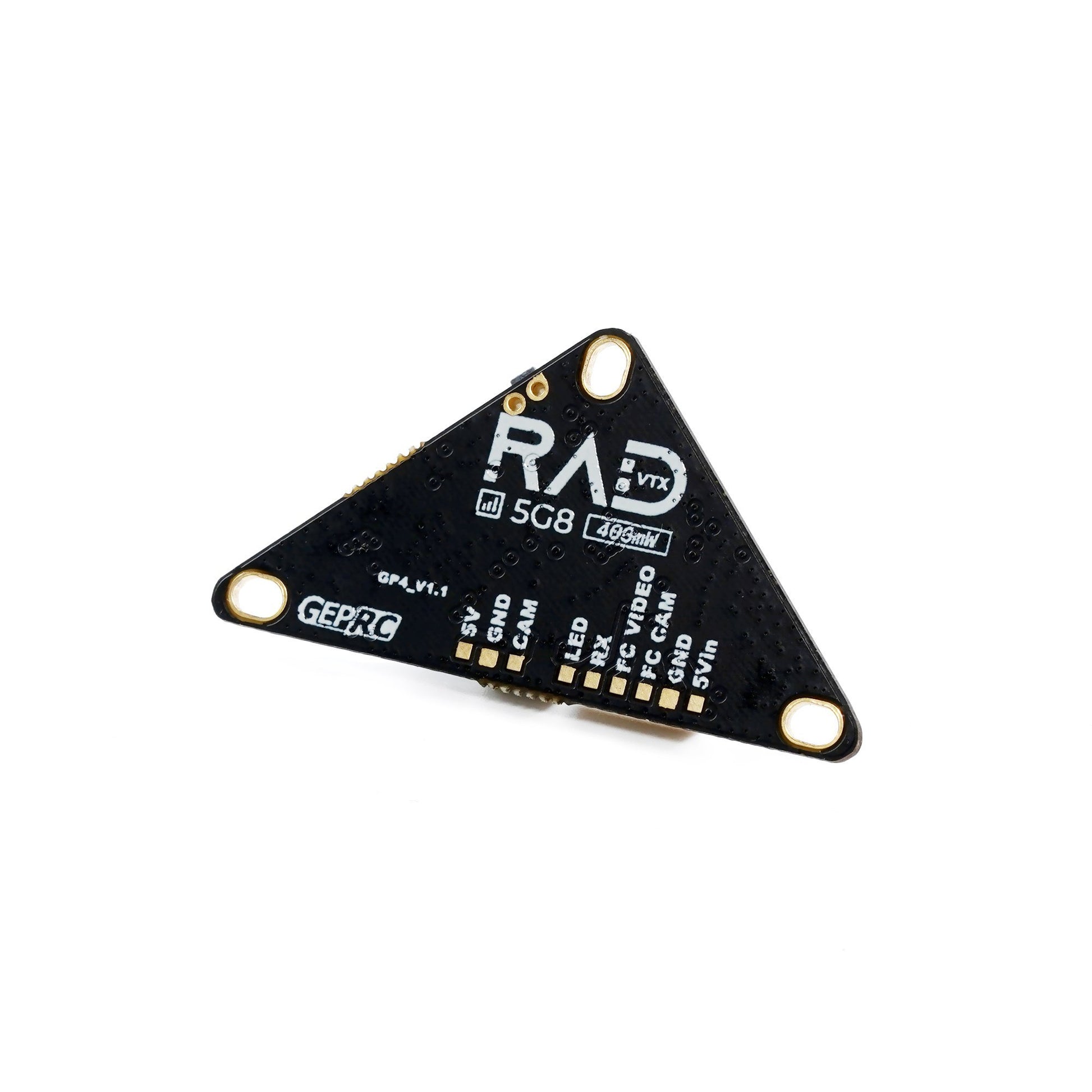

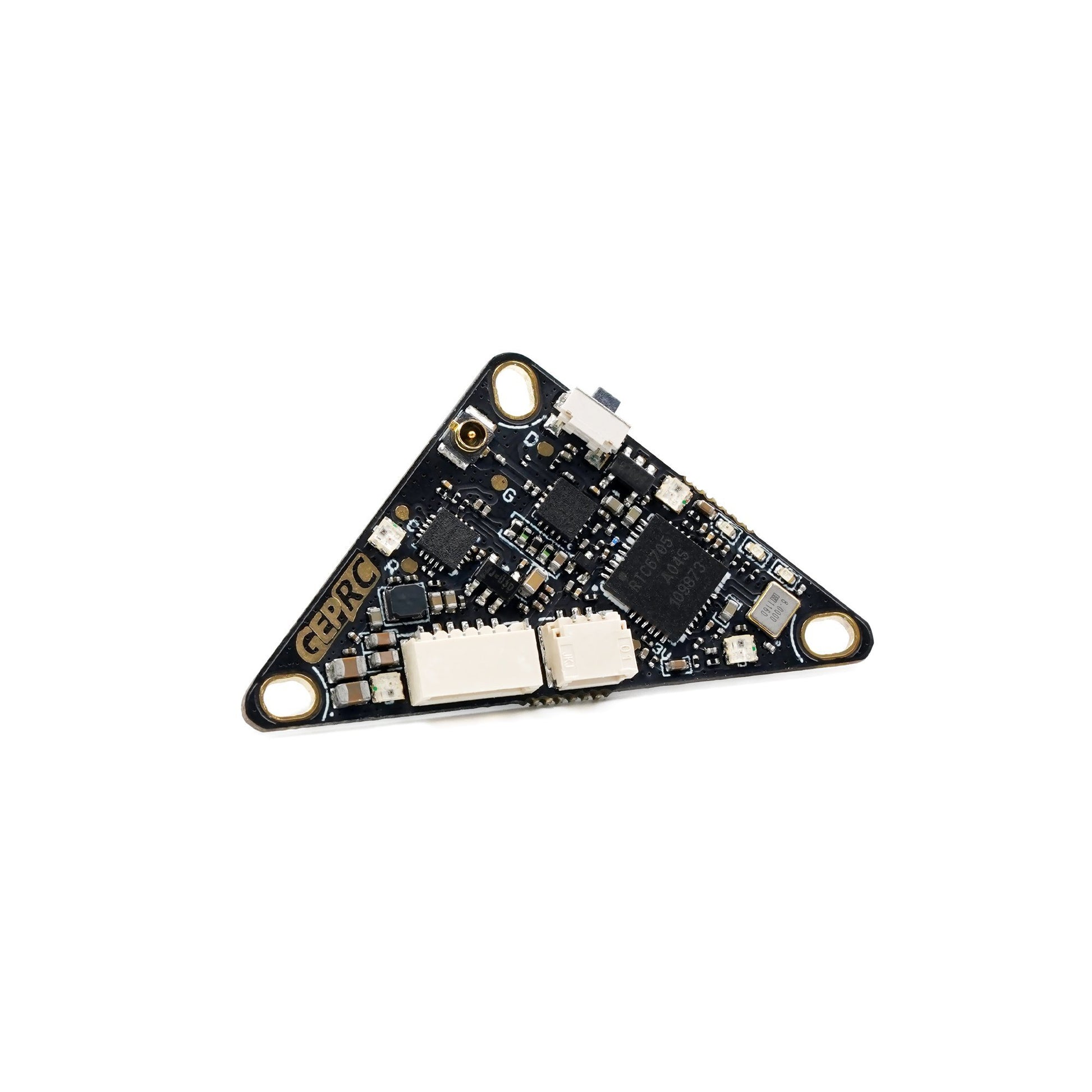

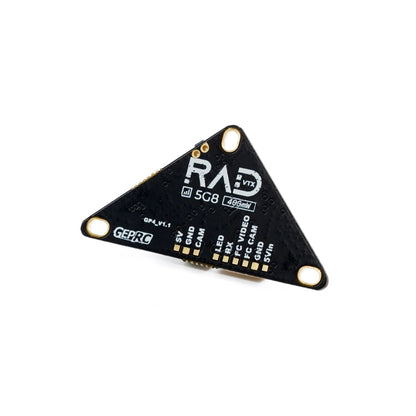

GEPRC RAD Whoop 5.8G VTX GEPRC RAD Whoop 5.8G VTX has 4 adjustable power levels, maximum power up to 400mW. The transmission signal is stable and has good heat dissipation, IRC Tramp protocol and fast tuning of OSD parameters. It also has a protective temperature control function to prevent overheating and burning. Function 1. 400mW power, low heat generation, stable operation, suitable for short and medium distance flight. 2. 3-channel adjustable PitMode/25mW/200mW/400mW. 3. With temperature control protection function to prevent burnout at high temperature. 4. DC5V input, consumption only 400mA, can be powered directly from the 5V flight controller. 5. VTX IRC Tramp control protocol, supports tuning OSD parameters. 6. One setting button and three indicator lights, easy to operate. 7. The mounting holes are compatible with 25.5mm - 26.5mm. Specifications: Model: RAD Whoop 5.8G VTX Brand: GEPRC Input voltage: DC 5V Output voltage: 5V@500mA (camera power 5V) Input impedance: 75Ω Protocol: IRC Tramp Antenna connector: UFL Cable connector: SH1.0 Output power: PitMode/25mW/200mW/400mW Frequency: 40CH Video format: PAL/NTSC Microphone: none Mounting hole: 25.5mm-26.5mm, dual compatible (M2) Weight: 2g (without cables)
